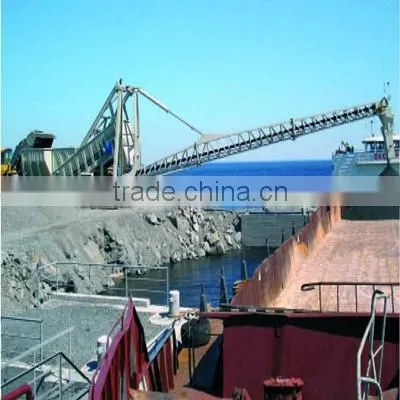

Plate Chain Conveyor
- 15 Set / Sets per Month
- Qingdao
- T/T
Product Details
Condition: | New | Type: | Gravity Conveyor | Material: | Other, Carbon steel |
Structure: | Belt Conveyor | Place of Origin: | Henan, China | Brand Name: | China DSM |
Model Number: | 500 650 800 1000 1200 | Voltage: | 220/380 | Power(W): | 3000-15000 |
Dimension(L*W*H): | as your requires | Certification: | ISO CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Introduction of Plate Chain Conveyor
Plate Chain Conveyor is very well suited for a broad range of free flowing products in the food, agriculture, pharmaceutical, cosmetic, chemical industry, .such as snack foods, frozen foods, vegetables, fruits, confectionary, Chemicals and other granules.
Features of Plate Chain Conveyor
1. ISO9001:2008.
2. Small size, low cost.
3. Large conveying capacity.
4. Continuous conveying equipment without flexible traction accessories.
5. Simple structure.
6. Easy to operate and maintain.
Technical Parameters of Plate Chain Conveyor
Belt width (mm) | 400 | 500 | 600 | 800 | 1000 | 1200 | 1400 | ||||||||
Sidewall height (mm) | 60 | 80 | 80 | 120 | 120 | 160 | 160 | 200 | 160 | 240 | 200 | 300 | 240 | 400 | |
Iaphragm spacing | 100 | 120 | 120 | 150 | 160 | 200 | 200 | 250 | 200 | 280 | 250 | 350 | 280 | 400 | |
Delivery value(m³/h) belt speed(m/s) | 28 | 36 | 50 | 71 | 104 | 120 | 157 | 195 | 216 | 327 | 331 | 466 | 500 | 794 | |
19 | 25 | 33 | 57 | 83 | 97 | 127 | 157 | 175 | 271 | 267 | 384 | 414 | 680 | ||
15 | 19 | 23 | 40 | 50 | 59 | 90 | 112 | 124 | 197 | 190 | 278 | 302 | 524 | ||
9 | 11 | 15 | 21 | 37 | 37 | 48 | 60 | 66 | 106 | 102 | 149 | 162 | 281 | ||
Overall Size(mm) | First roller height (mm) | 1200 | 1350 | 1615 | 1815 | 2000,2200 | 2300,2525 | 2525,2700 | |||||||
Tail roller height (mm) | 600 | 800 | 950 | 1115 | 1250,1400 | 1600,1700 | 1600,1700 | ||||||||
Middle belt height (mm) | 700 | 800 | 850 | 1115 | 850,1200 | 1400,1500 | 1600,1700 | ||||||||
Foot margin width of middle part (mm) | 580 | 800 | 1020 | 1220 | 1440 | 1500 | 1850 |
Working Principle of Plate Chain Conveyor
It is divided into horizontal, inclined and combined types according to configured method and can be used with other conveying devices together to finish working such as concentrated transportation, respectively conveying mixing materials, dewatering, discharging and stacking.

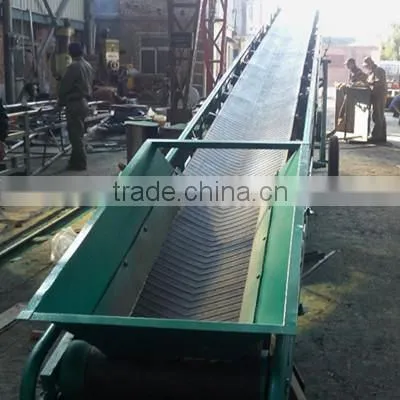

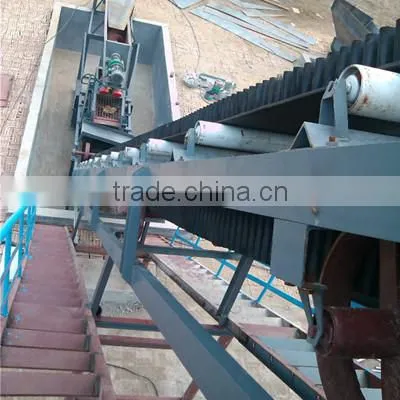

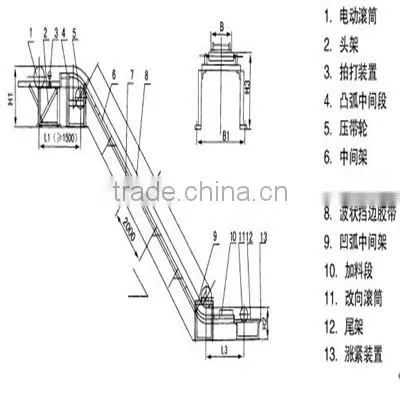

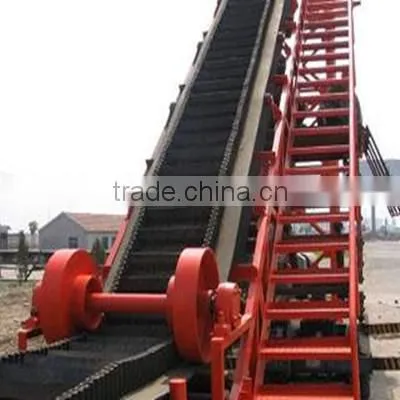

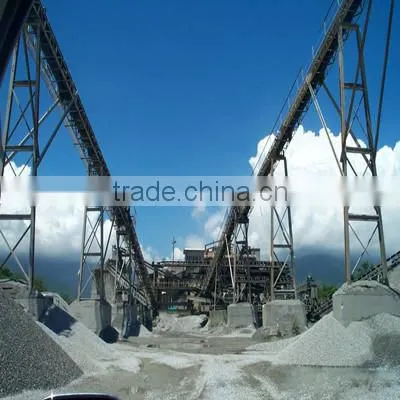

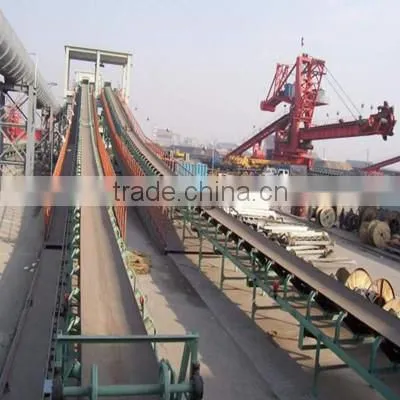

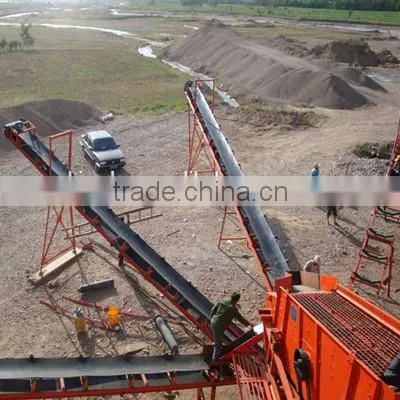

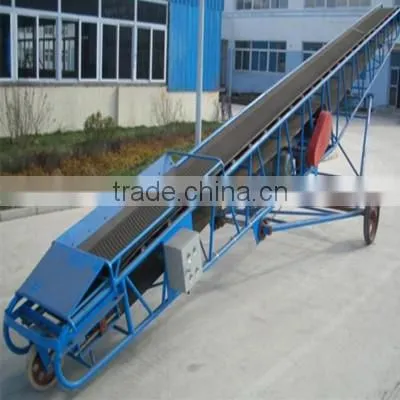

Pictures of Plate Chain Conveyor
Company and Products
Services
1. Install and debug the equipment;
2. Send the first-line operators on site;
3. Examine the equipment regularly.
