Introduction
Hammer crusher is also called Hammer breaker. It is widely used to crush brittle, medium-hard materials for mining, metallurgy, cement, coal, metallurgic, construction material, road building, and petroleum &chemical industries. And the Box Hammer Crusher series are regarded as the preferred equipment, because they have the featuers of less investment, high efficiency, small volume, light weight, simple structure, easy operation and maintenance, high ratio of crushing, even product size, high producing capacity, etc. Box Hammer Crusher can be usded as medium size and fine crusher. The highest compressive strength is 320Mpa.

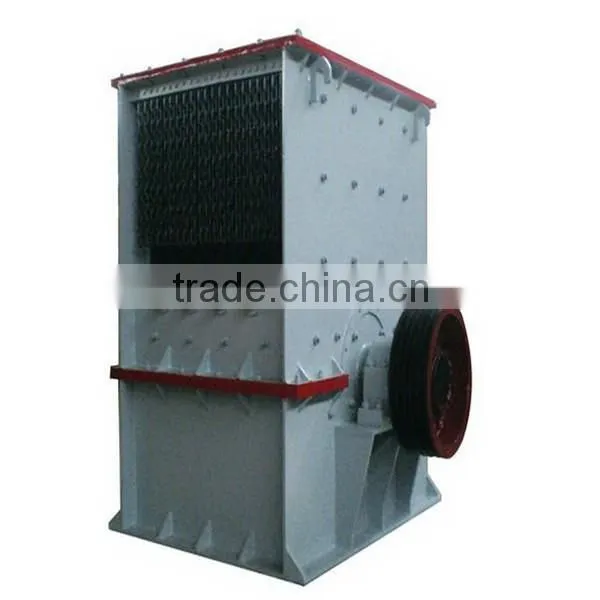

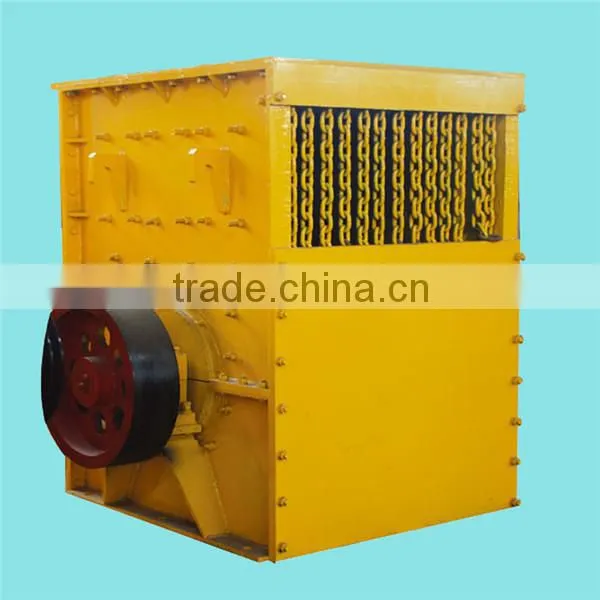

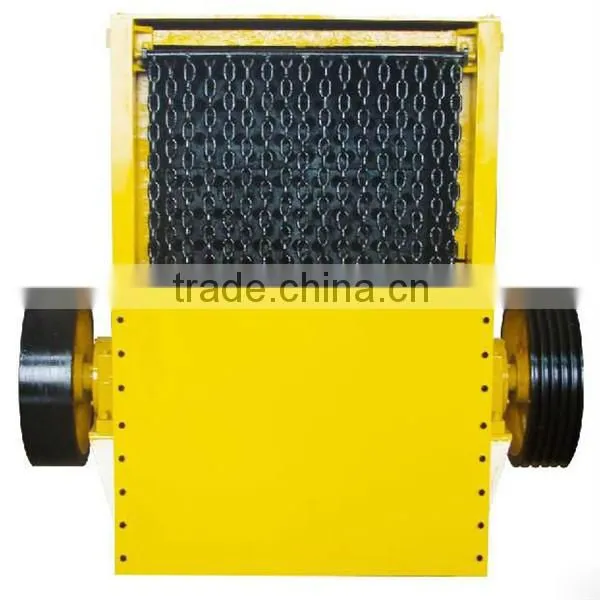

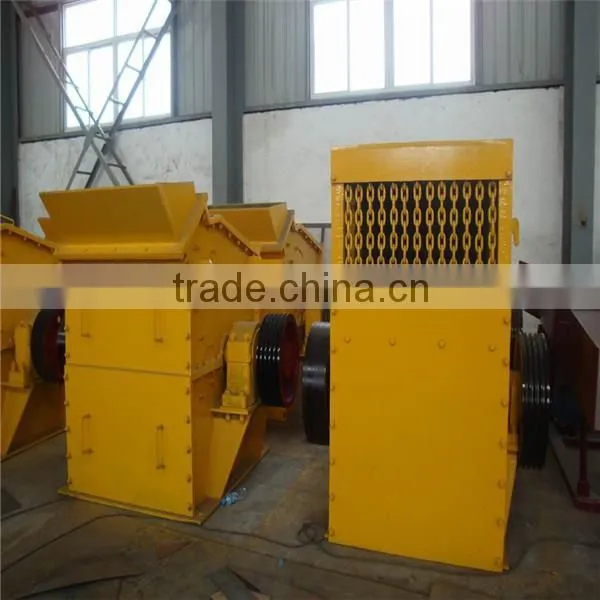

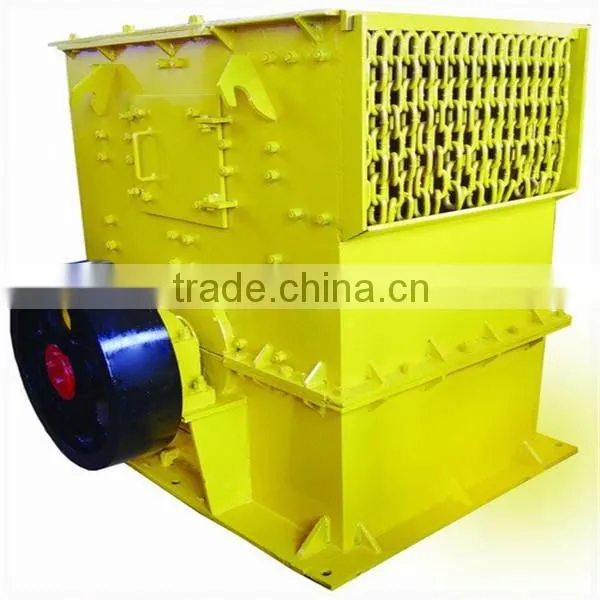

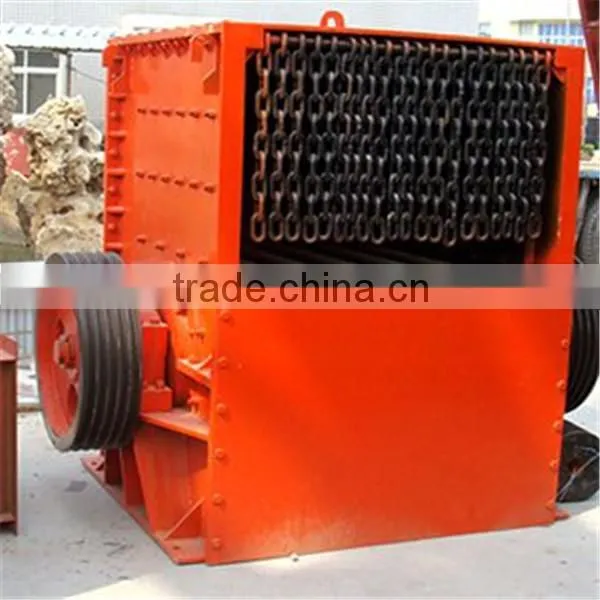

Box Hammer Crusher is mainly composed of casing, rotor, hammers and bars. The casing is divided into two parts: up casing and down casing, which is connected by welding steel; other parts are connected by screws. The inside of casing is high manganese steel lining board, which is easy to be changed. There are several hammers in the spindle, which make up of rotor together with turntable and wear hammer shaft. It works through motor and V-belt to drive spindle and rotor rotating, so that centrifugal force producing by the hammer rotating spread out. Then when the big material is put into the crushing chamber, it is crushed by the high speed hammer. Afer those process, the standard materials are screened out by the down bar and non-standard one is left on the crushing chamber and is crushed again. In order to avoid clogging, the humidity of the material should be below 10%-15.
Main Technical Parameters
Model |
700x1000 |
900x1200 |
1000x1000 |
1200x1200 |
1400x1400 |
1600x1600 |
1800x1800 |
Diameter(mm) |
700 |
900 |
1000 |
1200 |
1400 |
1600 |
1800 |
Length(mm) |
1000 |
1200 |
1000 |
1200 |
1400 |
1600 |
1800 |
Production(t/h) |
50-80 |
70-100 |
90-120 |
130-160 |
190-210 |
250-300 |
300-400 |
Material-in size(mm) |
≤500 |
≤800 |
≤800 |
≤900 |
≤1000 |
≤1000 |
≤1200 |
For stone |
Various types of stone( compressive strength under 300mpa) |
||||||
Power(kw) |
45-55 |
75-90 |
75-90 |
110-132 |
132-160 |
160-210 |
210-280 |
The motor drives the rotor of the hammer crusher through the belt to rotate at a high speed.The materials are sent into the crusher and are crushed by the high speed impacting, cutting and grinding of the hammer. Under the rotor is the sieve, the standard size products can be discharged through the sieve. While the large size products are brought back to the crushing area by the hammer and being crushed again.
1. The hammer heads adopt new technology casting. They are durable and impact resistance.
2. The dischare size can be adjusted according to the customers’ need.
3. The sealing body structure solves the problem of crushing plant dust pollution and gray body leakage.
4. The overall design has attractive appearance, compact structure, less easy damaged parts, convenient maintenance.
We will provide the best service within reasonable price. If you have any questions or interested in our machines , you can connect with us. Tell us the details about your request, we will reply you ASAP and design the products according to your need.
Dashan Mining Machinery Co., Ltd is a manufacturer.
The main products of the company are straw press block machine, stalk crusher , cotton stalk the grinder, multi-functionnal wood powder grinding machine, cutting machine,grass shredder, drum chipping machine, wood peeling machine, wood chip screening machine, sawdust machine, conveyor, and dryer the company integrates research, production, and sales as a whole.The company has long-term cooperation with domestic and foreign research institutes, has introducing adwanced technology, process and testing equipments at home and abroad.
Customers
Our Certifications
Contact information
1. Are you a trading company or a manufacturer?
We are a manufacturer.
2. How can I get to your company?
You can get a flight to Zhengzhou Xinzheng International Airport . and we can go to airport to pick you up directly.All our clients from home or abroad, are warmly welcome to visit our factory and inspect our products!
3. How long is your guarantee?
One year(Calculated from the equipment arrives the customer’s side.). After this period we will definitely support you when needed. You will be welcome to contact us with any problem may happened.
4. Will you send engineers to install the plant?
yes, but at an extra cost payable by the customer. Or you can get local contractors to do thecommissioning and we send one supervising engineer.
Don't hesitate ! We are your best choice!
