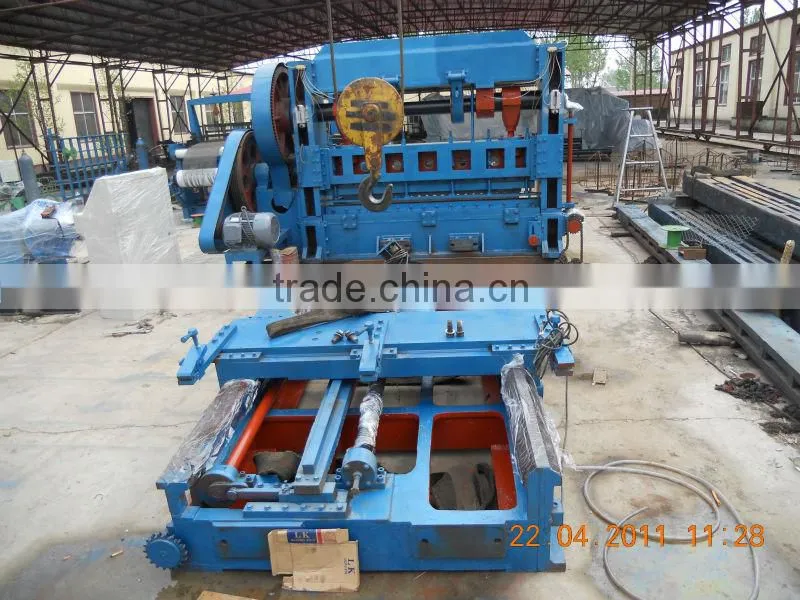

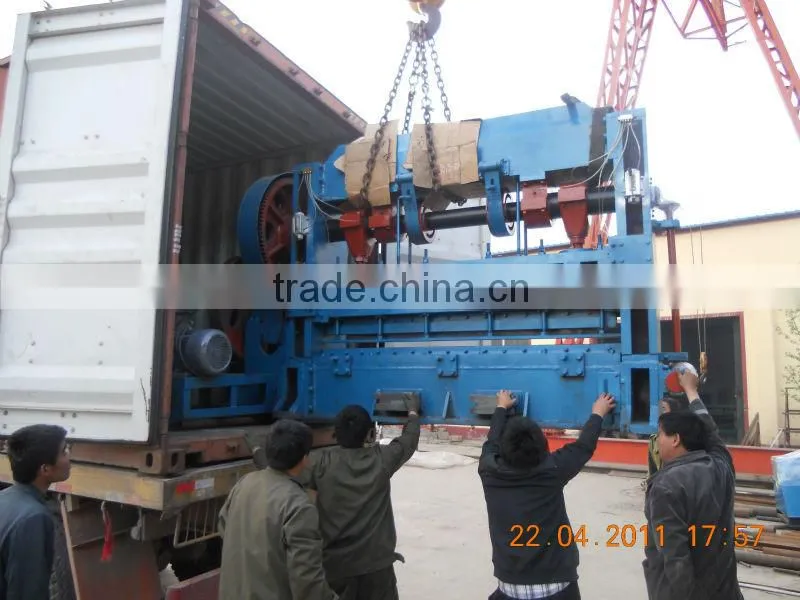

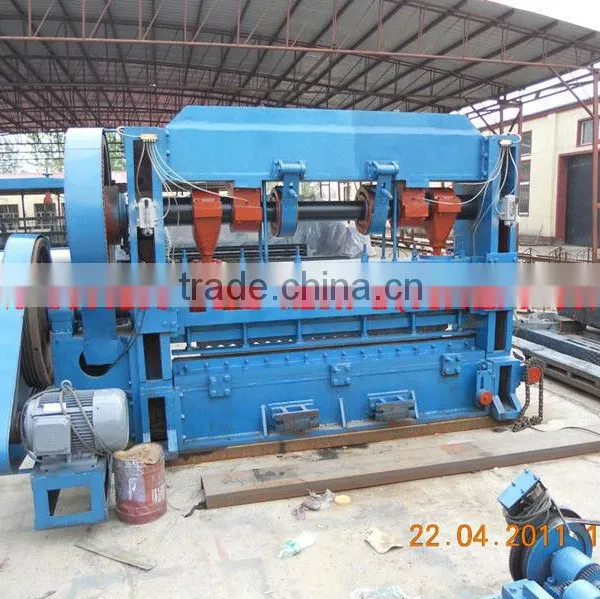

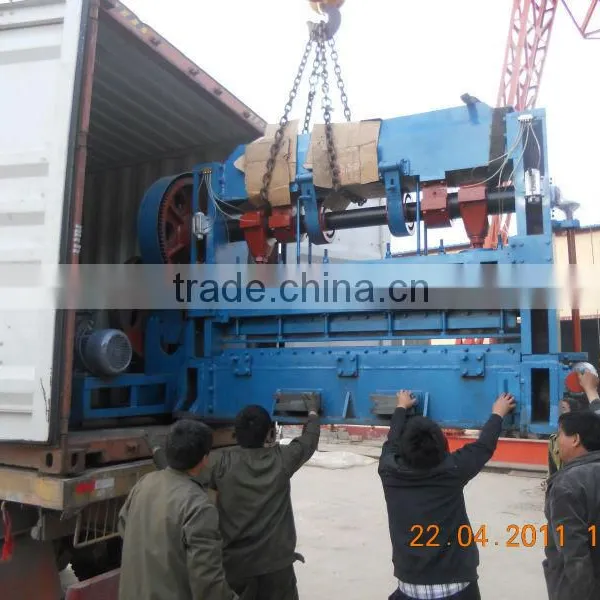

Expanded Metal Machine
- 1 Set / Sets per Month
- Tianjin
- T/T L/C D/P D/A Credit Card PayPal
- Pneumatic spray machine Steel structure special multi-functional high pressure airless spray machine environmental protection and paint saving
- Concrete mixing station machine
- Gypsum block production line
- sale for Temperature plate slotting machine
- Welding rod production line equipment
- 8 hours 4-5 tons of electrode production line equipment
Product Details
Place of Origin: | Hebei, China | Brand Name: | JGJX, JGJXC | Model Number: | JQ25-6.3 16 25 63 100, JQ25-100 6.3 25 63 10 |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
Specifications
Expanded mesh machine-Width:0.5-2.5m
thickness:0.5-2.5mm
Length of mesh:100mm
TYPES:JQ25-6.3 16 25 63 100
We follow the policy of Seeking Development through Quality and Establishing Reputation Via Quantity Products. We try to meet customers’ requirements with excellent quality products. We have become regular supplier for some customers in India, Uzbekistan, Italy,Mexico and other countries with its good quality wire mesh machines and first-class service.
Our factory seeks development by creation and existence by quality.And our factory has more than 10 researchers with high diathesis,so the product produced by our factory has various kind and high quality. And we can also produce various wire mesh machines according the clients’ requirement.
We sincerely expect with your earnest and cooperation and get outstanding achievement
Expanded mesh machine
Type | JQ25-6.3A | JQ25-16 | JQ25-25 | JQ25-63A | JQ25-63B | JQ25-100 |
Depth(mm) | max.1.0 | max.1.0 | max.1.5 | max.2.5 | max.3 | max.4 |
Punching Width(mm) | 500 | 1000 | 1250 | 2000 | 2000 | 2000 |
Times | 180/min | 150/min | 150/min | 70/min | 45/min | 60/min |
Distance(mm) | 0-1.15 | 0-1.2 | 0-1.2 | 0-4 | 0-4 | 0-4 |
Length of Mesh(mm) | max.20 | max.25 | max.30 | max.100 | max.200 | max.150 |
Motor | 2.2KW | 3KW | 4KW | 11KW | 11KW | 15KW |
Weight | 0.95T | 2T | 3T | 10T | 10T | 12T |
Measurement (mm) | 950 x 570 x1780 | 1800 x 1320 x1550 | 1940 x 1600 x 2010 | 2400 x 3500 x 2300 | 2400 x 3500 x 2300 | 3600 x 2500 x 3000 |

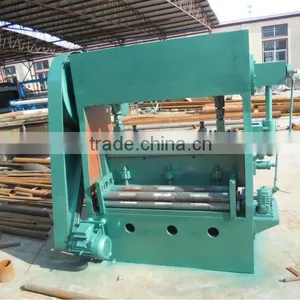

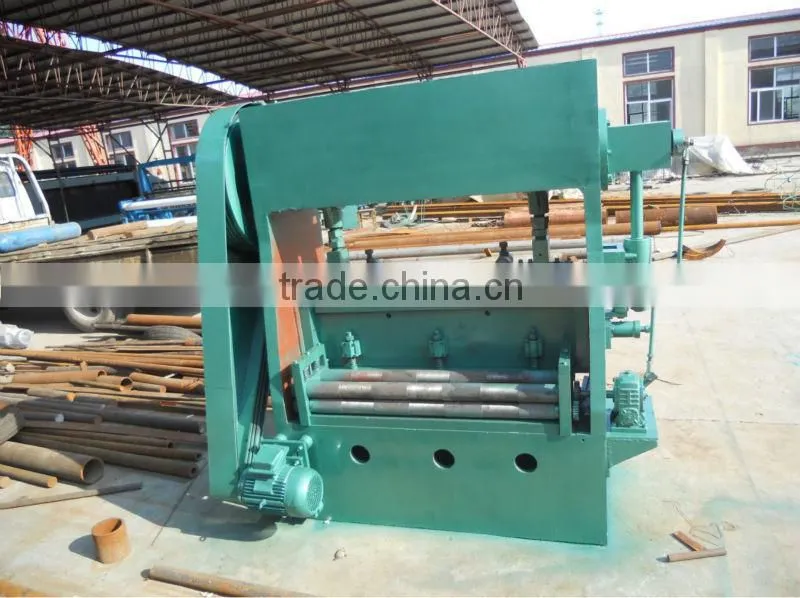

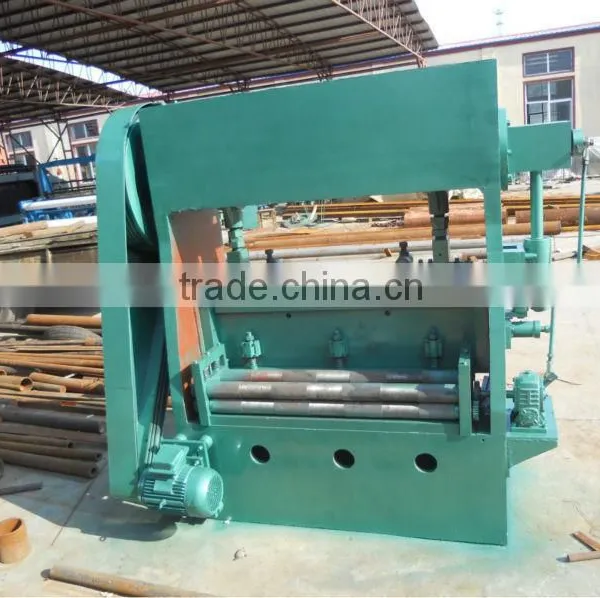

Flatter Machine
Type | AHJ-05 | AHJ-10 | AHJ-125 | AHJ-15 | Depth |
Width | 500mm | 1000mm | 1250mm | 1500mm | max.3mm |
