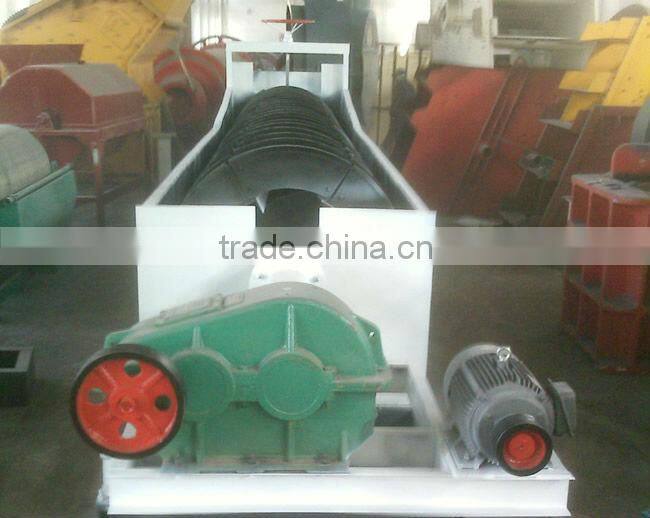

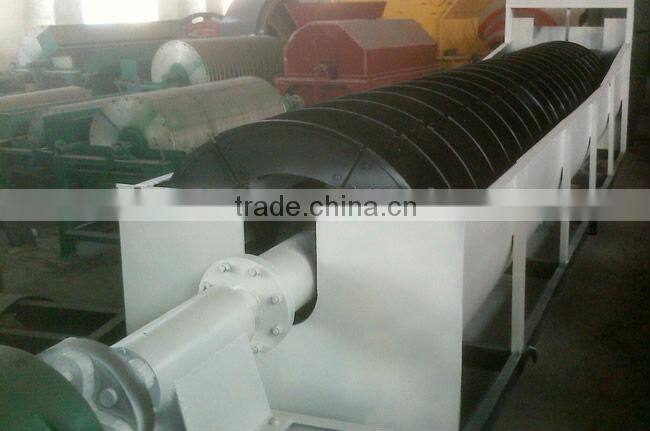

Introduction of spiral tin ore washing machine;
spiral tin ore washing machine is mainly applied to washing minerals of large slit content, such as iron, manganese, limestone, tin ore, etc. It carries out mixing, washing, separating, and desliming. With a washing pressure less than 147-196kpa, it is also suitable for washing building materials in construction and power station applications. The gear transmission parts of our spiral washing machine are separated from stones, water and sands, which greatly reduces the error rate of our spiral washing machine.
Working principles of spiral tin ore washing machine;

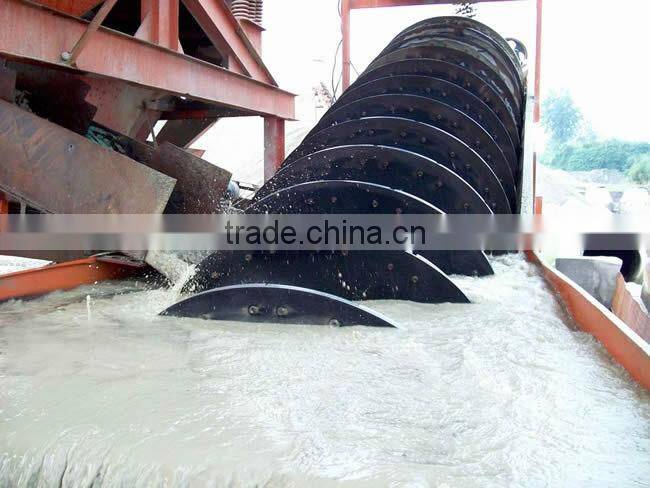

Spiral washing machine makes use of buoyancy of water to separate sand from dust and impurity. It achieves purifying, lifting and conveying of the minerals through the stirring of spiral slice. During lifting, the minerals are also stirred so that the coarse sands and fine sands are evenly mixed.
Features of spiral tin ore washing machine;
Spiral washing machine has features like long spiral structure, good sealing system, simple structure, strong processing capability, convenient maintenance, good washing efficiency, etc. It is widely used in mining industry.
Technical parameters of spiral tin ore washing machine;
Type |
Spiral Diameter(mm) |
Output(t) |
Motor Power(kw) |
Weight(kg) |
FG-60 |
600 |
20 |
3 |
2550 |
FG-75 |
750 |
50 |
5.5 |
3820 |
FG-100 |
1000 |
75 |
7.5 |
4870 |
FG-120 |
1200 |
95 |
11. |
6900 |
FG-150 |
1500 |
130 |
18.5 |
8800 |
scenes of workshop;
