Home > Manufacturing & Processing Machinery > Mining Machinery > Mineral Separator > Hot Selling China Screw Classifier/Spiral Separator for Ore Mining

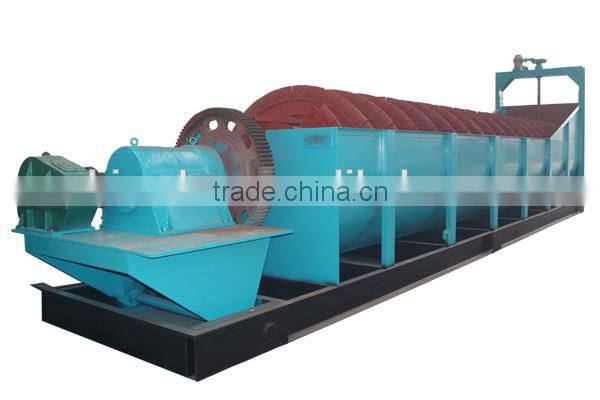

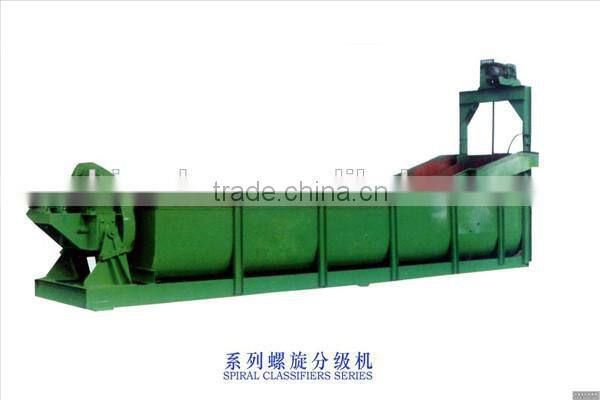

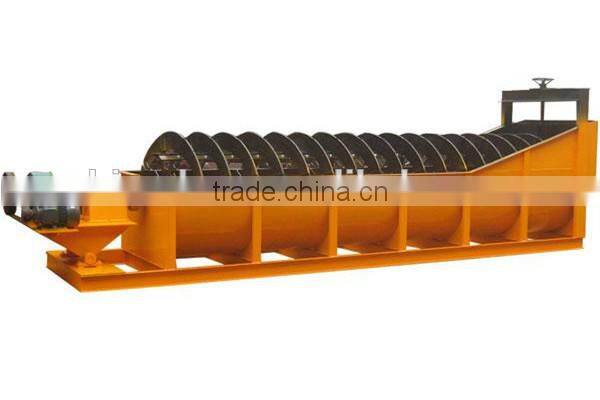

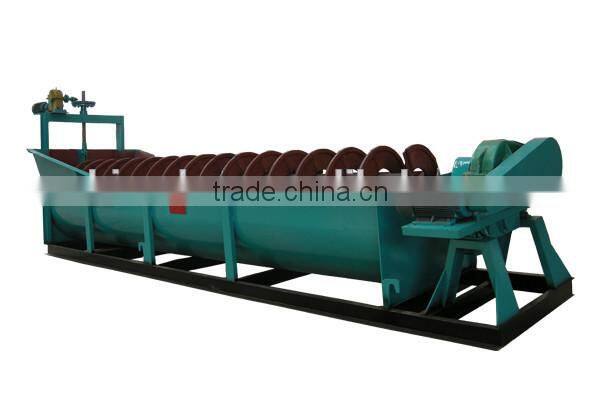

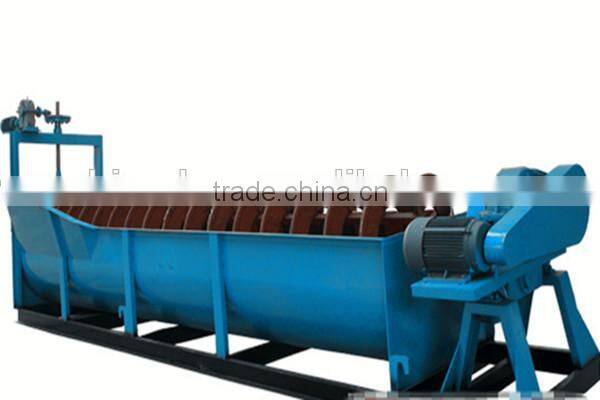

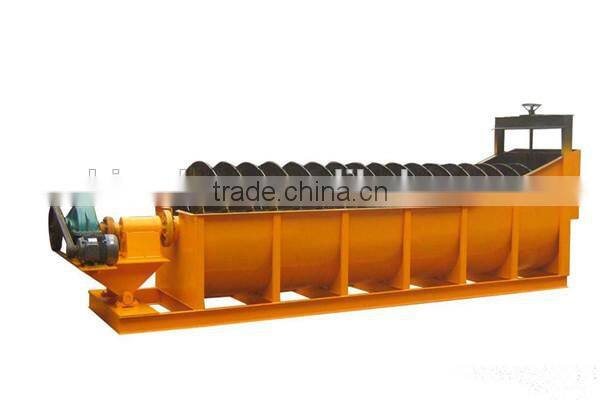

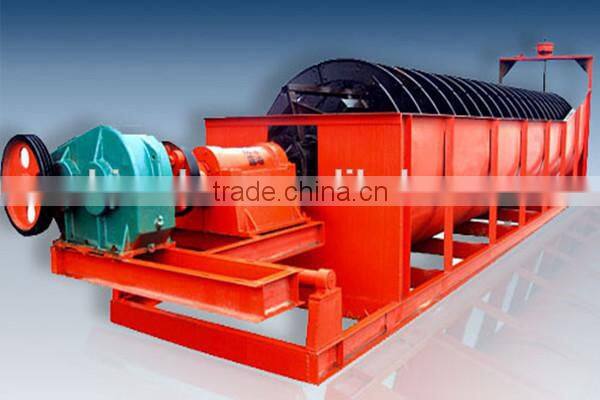

Hot Selling China Screw Classifier/Spiral Separator for Ore Mining

Name: Hot Selling China Screw Classifier/Spiral Separator for Ore Mining
Brand: China DSM
SKU: 112154533
Availability: InStock

Hot Selling China Screw Classifier/Spiral Separator for Ore Mining thumbnail-1

Hot Selling China Screw Classifier/Spiral Separator for Ore Mining photo-1

US$ 4,000 - 35,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Condition:

New

Type:

Sprial Separator

Place of Origin:

Henan, China

Contact Supplier Request Quote Chat Now

Henan Dashan Mining Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Qingdao

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Type Sprial Separator

Place of Origin Henan, China

Brand Name China DSM

Model Number FG FC

Voltage 380

Weight min2.7t

Certification ISO CE

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Usage of Spiral Classifier:

Spiral Classifier is widely used in the separation of ore in closed circuits with ball mills, grading ore and fine slit in gravity mills, grading granularity and flow of metal ore-dressing, and de-sliming and dehydrating in washing.

Application of spiral classifier:

Spiral Classifier applied to metallurgy, building materials, water and electricity industries washing, grading, impurity, etc. This series apply to the fine-grained and coarse-grained materials washing operation.

Advanced Advantages of Spiral Classifier:

1. Low power consumption

2. Heavy duty, long working life

3. Powerful self-contained spiral lifting device

4. Continuous spiral raking

5. High classifying efficiency

6. Wide choice of weir height

7. Rigid tank and substructure

8. Wide choice of tank design

9. Wide range of industries serviced

Main Technical Parameters

High Weir Spiral Classifier

Model	Spiral diameter (mm)	Trough length (mm)	Spiral rotation speed (r/min)	Capacity(t/d)		Power(kw)		Weight (t)
Model	Spiral diameter (mm)	Trough length (mm)	Spiral rotation speed (r/min)	Return sand	Overflow	Driving	Flifting	Weight (t)
FG7.5	750	5500	6-10	340-570	65	3.0	Manual	2.7
FG10	1000	6500	5.0-8.0	675-1080	110	5.5	Manual	4.43
FG12	1200	6500	5.0-8.0	1170-1870	155	5.5	1.5	8.7
FG15	1500	8400	4.0-6.0	1830-2740	235	7.5	2.2	12.5
FG20	2000	8400	4.0-6.0	3240-5400	400	11	2.8	20.5
FG24	2400	9210	3.6	4650-7450	580	15	3.0	25.6
FG30	3000	1250	3.2	11625	890	22	4.0	37.7
2FG12	1200	6500	5.0-8.0	2340-3740	310	5.5x2	1.5x2	14.0
2FG15	1500	8400	4-6.0	3660-5480	470	7.5x2	1.5x2	21.1
2FG20	2000	8400	3.0-5.5	7780-11880	800	11x2	2.8x2	36.5
2FG24	2400	9210	3.6	13600	1160	15x2	3x2	46.8
2FG30	3000	12500	2.0-3.2	14600-23400	1785	22x2	4x2	73.0

Submerged Classifier

Model	Spiral diameter (mm)	Trough length (mm)	Spiral rotation speed (r/min)	Capacity(t/d)		Power(kw)		Weight (t)
Model	Spiral diameter (mm)	Trough length (mm)	Spiral rotation speed (r/min)	Return sand	Overflow	Driving	Flifting	Weight (t)
FC12	1200	8400	5-8	1170-1870	120	7.5	2.2	10.4
FC15	1500	10500	4-6	1830-2740	185	7.5	2.2	16.8
FC20	2000	12900	2-5.5	3895-5940	320	15	2.8	29.1
FC24	2400	14200	2.5-4	4650-7450	455	18.5	4	41
FC30	3000	14300	3.2	11625	705	30	4	56.8
2FC15	1500	10500	4-6	2280-5480	370	7.5*2	1.5*2	30.7
2FC20	2000	12900	3-5.5	6480-11800	640	11*2	3*2	50
2FC24	2400	14200	3.67	9300-14900	910	18.5*2	4*2	67.9
2FC30	3000	14300	3.2	23300	1400	30*2	4*2	85.3
