Specifications
Ring Die Feed Pellet Machine1.Save the electricity
2.Equipped with a safety pin device
3.Long working life

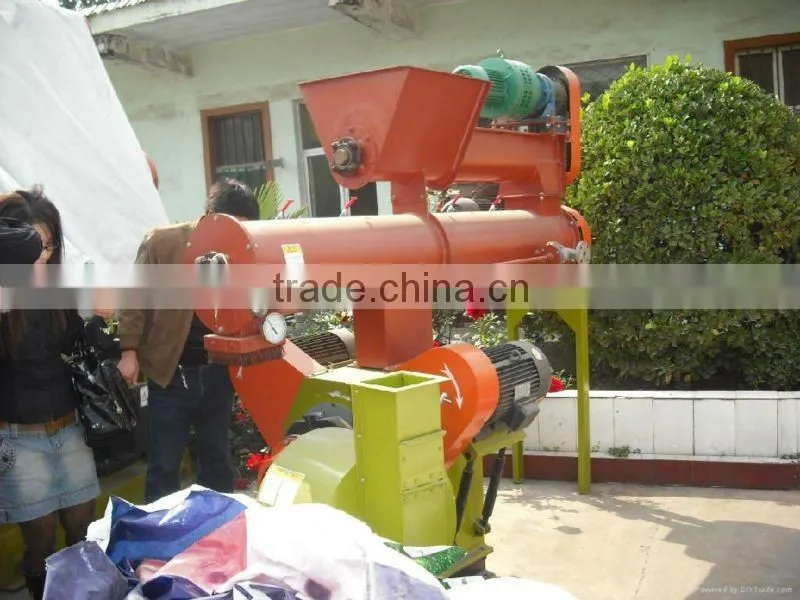

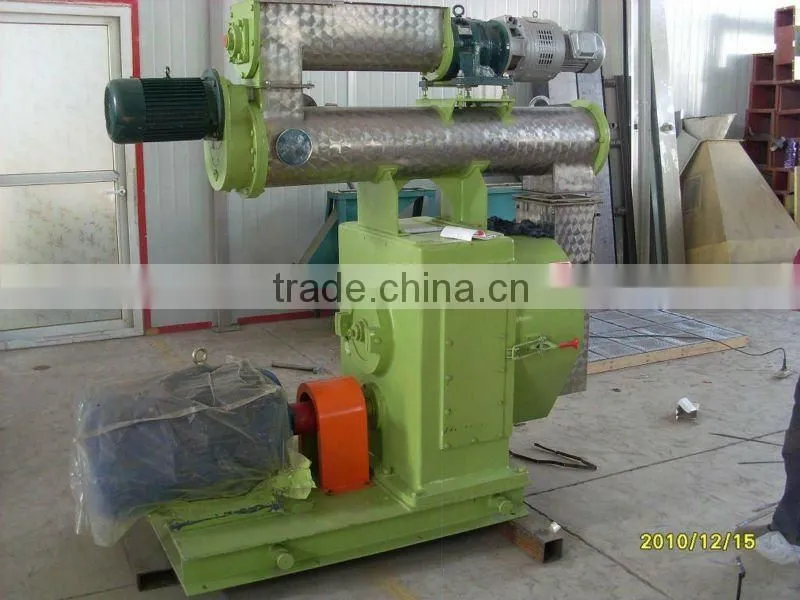

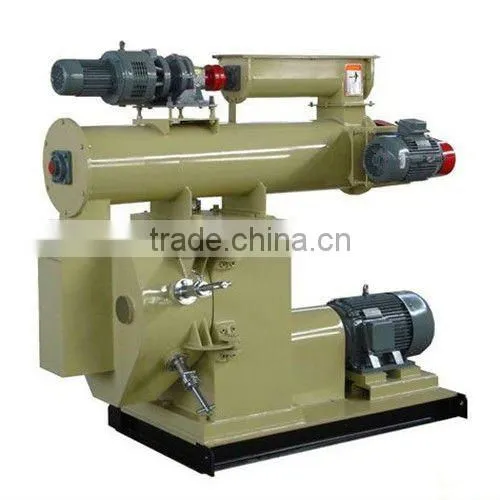

High Quality Ring Die Feed Pellet Machine
Introduction:
Ring Die Feed Pellet Machine is one of our best-selling products. It Mainly used for grinding the materials like corn straw, crop waste, bamboo powder, hay, straw, husk , block etc.The machine is also mainly used in feedstuff producing industry.The power consumption of Ring Die Feed Pellet Machine is less, the structure is reasonable and it is economical durable.The final pellets’ length can be adjusted, diameter 6-30mm for option before ordering. Density: 1.0-1.3t/m3
Working Principle:
First let Raw materials (The water content should be no greater than 15%)enter into screw feeder through hopper, second adjust the rotational speed of screw feeder axis to obtain the suitable flow of material,during this step the security magnets remove the magnetic impurity mingling away supplies, then through the enforced feeder, the materials enterinto the pressing room to pelletize finally.
Specification:
1. Ring Die Feed Pellet Machine is small volume, saving electricity, low noise and can transmiss feeding speed. Our machine has the characteristic as follows: structure in reason, exterior beauty, and stable performance.
2. The machine can be used φ2.5, φ3, φ4, φ5, φ6, φ8 aperture ring mode, witch can be choosen according to needs.
3. It is Suitable for small and medium-sized farm for personal use or for small and medium-sized feeds manufacturing, its capacity is 2-5t/h and it can be used in feed manufacturing which annual output is 5000-10000t.
Technology Parameters:
Model |
Main motor power (kW) |
Capacity (t/h) |
Feeding motor power(kw) |
Tuned mass motor power(kW) |
Circling mold diameter(mm) |
Granulating specification (mm) |
SZLH300 |
22/30 |
1-4 |
0.55 |
2.2 |
Φ300 |
Φ2—10 |
SZLH320 |
37 |
2-6 |
0.75 |
2.2 |
Φ320 |
Φ2—10 |
SZLH400 |
75/90 |
3-10 |
1.5 |
5.5 |
Φ400 |
Φ2-10 |
SZLH420 |
90/110 |
3-14 |
1.5 |
5.5 |
Φ420 |
Φ2-10 |
SZLH508 |
132 |
4-18 |
1.5 |
7.5 |
Φ508 |
Φ2-10 |
