Specifications
Stone Crusher or Mineral Processing1)jaw crusher
2)ISO9001:2000,CE
3)Even product granularity
4)Teeth Plate of Jaw C

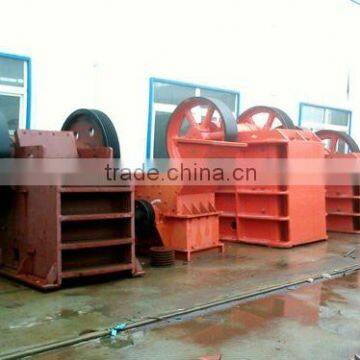

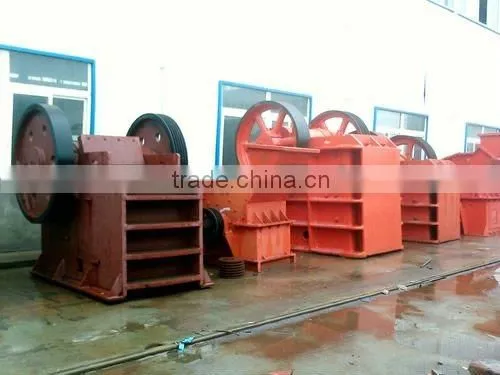

Stone Crusher for Mineral Processing
1. Brief introduction of Stone Crusher:
Dashan Stone Crusher series are based on years' experience and technology development.The continuous improvement and refinement have made them the preferred Stone Crusher for professionals and our customers.They can meet most crushing requirements in primary and secondray crushing,and the largest compression resistance of the material is 320MPa.This seriess are widely used in stone mining,metallurgical,construction,smelting,hydraulic and chemical industries,etc.
2. Working principle of Stone Crusher:
The motor transmits power through belt,drives the moving jaw to do periodic motion towards the fixed jaw by the eccentric shaft.The angle between toggle plate and moving jaw plate increases when moving jaw moves.So the moving jaw moves towards the fixed jaw.The stuff will be crushed in this process.The angle between toggle plate and moving jaw decreases when moving jaw moves down,the moving jaw moves leaves fixed jaw by pulling rod and spring,the final crushed stuff will be discharged from the outlet.
3. Types of Stone Crusher:
We have various of Jaw Crusher Equipment, such as PE150, PE250, PE400, PE500, PE600, PE900, PEX150, PEX250, PEX300 etc. In order to give you a responsible quotation, you can inform us the following information:
1.What's the material you are going to deal with?
2.What's the granularity of the material?
3.What's the granularity of the final products are you going to achive?
4.What's the producing capacity you are going to achieve?
Our engineers will suggest you the most suitable one for you according to your information.
4. Main technical parameter of jaw crusher:
Models |
Technical specification |
Motor power
(kw)
|
Dimensions
(mm)
|
Weight
(kg)
|
|||
|
Max feeding size
(mm)
|
adjustment
scopes
(mm)
|
Capacity
(m3/h)
|
Rotating speed of main shaft
(r/min)
|
||||
PEF150*250 |
125 |
10-40 |
1-3 |
285 |
7.5 |
922*745*933 |
700 |
PEF200*300 |
165 |
20-70 |
2-8 |
265 |
11 |
1056*1100*1120 |
800 |
PEF250*400 |
210 |
20-80 |
5-20 |
310 |
18.5 |
1108*1142*1392 |
3000 |
PEF400*600 |
340 |
40-90 |
10-40 |
275 |
30 |
1700*1732*1392 |
7200 |
PEF350*750 |
290 |
30-55 |
20-50 |
300 |
37 |
1900*1806*1808 |
8900 |
PEF500*750 |
425 |
50-100 |
34-68 |
275 |
55 |
2050*1860*2145 |
11320 |
PEF600*900 |
480 |
75-200 |
40-120 |
255 |
75 |
2792*2168*2250 |
17600 |
PEF750*1060 |
630 |
80-200 |
80-160 |
250 |
90 |
4180*2560*3070 |
30530 |
PEF900*1200 |
750 |
100-200 |
110-200 |
250 |
110 |
5200*2900*3500 |
50000 |
PEF1200*1500 |
1020 |
150-300 |
220-400 |
180 |
160 |
4200*3300*3500 |
106000 |
PEX150*750 |
125 |
10-40 |
5-15 |
300 |
15 |
1220*1480*1180 |
3600 |
PEX250*1000 |
210 |
15-55 |
10-32 |
300 |
37 |
1580*1992*1380 |
7350 |
PEX250*1200 |
210 |
15-60 |
12-38 |
300 |
37 |
1530*2192*1380 |
8700 |
PEX300*1300 |
250 |
20-90 |
16-65 |
300 |
55 |
1930*2400*1747 |
11600 |
Teeth Plate of Jaw Crusher
Stone Crusher with CE/ International ISO9001:2000 Authentication
