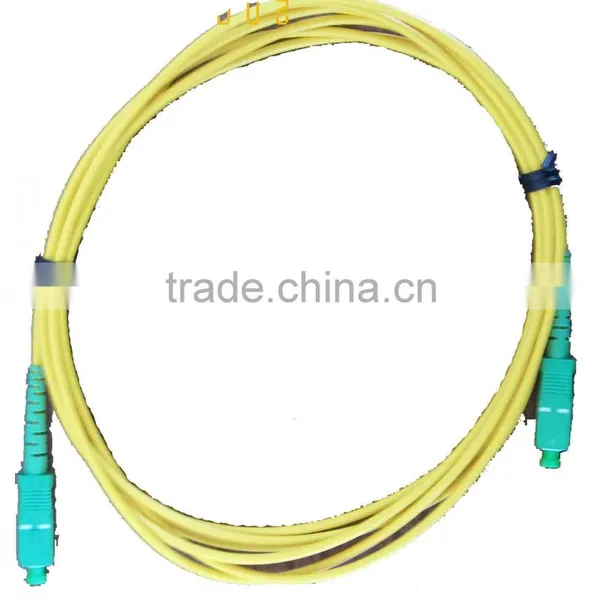

Help CenterPatch Code(FC,SC,ST)
Negotiable
MOQ: 1 set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Lootom
Model Number:
Patch Code(FC,SC,ST), FC,SC,ST
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Fiber Optic Pigtail(FC(SC)/APC,FC(SC)/PC,FC(SC)/UPC)NegotiableMOQ: 10 Pieces -
Coarse Wavelength Divison Multiplexer Module(CWDM)NegotiableMOQ: 1 Piece
-
Patch Code Cable (FC,SC,ST)NegotiableMOQ: 1
-
Standard Single-mode Optical Fiber Coupler(1*2,2*2)NegotiableMOQ: 1
-
CATV System Fiber Optic CouplerNegotiableMOQ: 1 Piece
Place of Origin
Jiangsu, China
Brand Name
Lootom
Model Number
Patch Code(FC,SC,ST), FC,SC,ST
Specifications
apply to long distance optical communication,optical testing system,LAN and WAN,CATV system,digital communication systemProduct Features
- Insertion Loss: APC<0.3 dB;
- PC<0.2dB;
- WPC<0.15dB;
- Return Loss;
- SM: PC > 45 dB;
- UPC > 50 dB;
- APC > 60 dB;
- MM: > 35 dB;
- Repeatability: ≤0.1dB;
- Exchange: ≤0.2dB;
- Push-pull Performance:=1000 cycle;
- Operation Temperature:-40~+80 °c
Product Applications:
1. Long Distance Optical Communication
2. Optical Testing System
3. LAN and MAN
4. CATV system
5. Digital Communication System
Specifications:
Item |
Text Condition |
Test Value |
|
Optical |
Insertion Loss |
1.3um LED Laser |
≤0.2dB |
Return Loss |
1.3um LED Laser |
≥50dB |
|
|
Exchange |
random |
<0.2dB |
Vibration |
5 2000Hz,1.5mm Amplitude |
<0.1dB |
|
Push-pull |
´óÓÚ1000Times |
<0.1dB |
|
Environments |
High Temperature storage |
+85 For 100h |
<0.2dB |
Low Temperature storage |
-40 For 100h |
<0.2dB |
|
Temperature Cycling |
-40 +85 ,50Cycles |
<0.2dB |
|
Relative Humility |
+25~+65 ,93%R.H, For 100h |
<0.2dB |
|
