TFR7800F Telecom Equipment

Name: TFR7800F Telecom Equipment
Brand: Lootom
SKU: 112122149
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

Lootom

Model Number:

TFR7800F

Lootom Telcovideo Network (Wuxi) Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name Lootom

Model Number TFR7800F

Specifications

1 or 2 output pors,8dBm to +2dBm input range
AGC function
high output level, 117dBuV
LED indicator
60V and 220V optional

Features

Broad range AGC function (-6dBm~+2dBm). Optical input power AGC (Automatic Gain Control) function, keep RF output level stable(±0.5dB) when optical input power change within the range -6dBm~+2dBm.
High precision digital LED Indicator display constantly the optical input power level.
Broad range optical input power (-8dBm~+2dBm)
High RF gain and high RF output level (115dBμv)
High power GaAs technology at output stage
Electronic adjustment of RF parameters, No additional plug-In accessories required
220V and 60V power supply available
750MHz and 862MHz bandwidth available

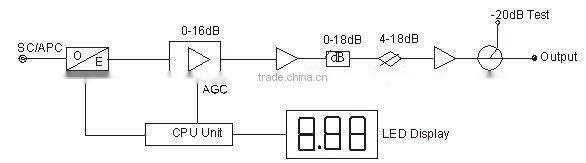

Diagram

Specifications

Item		Unit	Parameters
Optical	Optical Input Level	dBm	-8 ~+ 2
	AGC Range	dBm	-6~+2
	Optical Power Indicator		Digital LED
	Equivalent Input Noise Current		<4pA /√H
	Wavelength	nm	1200~1600
RF	Passband	MHz	40 ~ 870
	RF Flatness	dB	±0.75(4dB Pre-Sloped)
	Impedence	Ω	75
	RF Output Level	dBmV	115±2(@ -6dBm, OMI=3.7%/ch)
	RF Return Loss	dB	≥18
	RF Test Point	dB	-20±0.75 (Directional)
	CTB	dBc	>60( @ –1dBm)
	CSO	dBc	>60(@ –1dBm)
	Interstage Slope Control	dB	0~18 ( Variable continuously)
	Interstage Gain Control	dB	0~18 (Variable continuously)
	RF Output Stability	dB	±0.5
General	Work Temperature Range	°C	- 40~+60
	Power Supply (AC)	V	220 ~ +240, 50,60Hz
	Power Consumption	W	25
	Surge Protection	KV	6
	Optical Connector		SC/APC(others on request)
	RF Connector		F-Female
