Help CenterGDCBT400 EoC(Ethernet Over Coax)series Slave(English Version)
Related Products
-
EOC Master GDCBM720M Indoor (English Software)Metal / Aluminum Shell Eoc Head-end Equipment EOC MasterNegotiableMOQ: 1 Set -
Master EOC GDCBM720M Indoor (English Software)Metal / Aluminum Shell Eoc Head-end Equipment for Remote Network Mana(AR7411 Chip)NegotiableMOQ: 1 Set
-
Master EOC GDCBM720M Indoor (English Software)Metal / Aluminum Shell Eoc Head-end Equipment for Remote Network Mana(AR7411 Chip)NegotiableMOQ: 1 Set
-
GDCBT400W EoC Slave With WiFi FunctionNegotiableMOQ: 10 Sets
-
GDCBT400W EoC Slave With WiFiNegotiableMOQ: 10 Sets
Specifications
Frequency : 7.5 ~ 65MHzoutput power(max) : 15dBm
1-4 10/100Mbit self-adaption Ethernet interface
HomePlugAV standard
2 RF

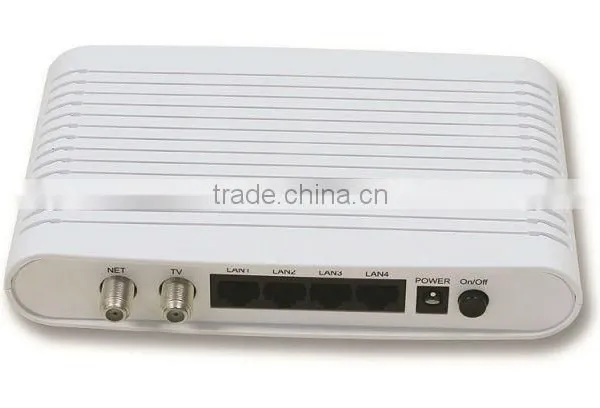

GDCBT400 EoC series slave
User manual
- Brief:
GDCBT400 series slave(based at AR7411 chip) is the multi-media access device which is based on HomePlug AV(IEEE P1901) technique, used with GDCBM700 series master, realize 2 layer Ethernet transmission network through the CATV coaxial network.
GDCBT400 supply 1-4 100Mbit full duplex Ethernet interfaces, used to connect computer, digital STB, IP telephone, etc. Support QoS setting, supply priority transmission protection for all kinds of data stream. Support bandwidth controlled, each slave’s max up-line bandwidth could be set, support encipher transmit, meet the demand of high-reliability business.
- Feature:
l Provide 1-4 10/100Mbit self-adaption Ethernet interface, connect to computer, STB, IP phone etc.
l Provide 2 RF interface, respectively connect to up and down line cable
l Work under the bandwidth of 65MHz, no influence to existing CATV signal
l Plug and play, setup program is not request
l Support VLAN(802.1Q) and QoS(802.1p),IGMP etc. layer 2 protocol
l Support SNMP which MIB library based at national standard
- Technique Specification:
Item |
Description |
|
Interface |
1-4 10/100M self-adaption ethernet interface(Aoto MDI/MDIX) 2 RF interface, 1-way CATV/DATA mixture input,1-way CATV output 1 outset power interface |
|
LED indicator |
1 LAN 1 Cable 1 Power 1 Diagnosis |
|
RF |
Frequency : 7.5 ~ 65MHz, output power(max) : 15dBm Receiving sensitivity : -65dB Connecter type : F type Output impedance : 75Ω |
|
Standard |
IEEE 802.3, IEEE 802.3x,IEEE 802.3u Auto MDI (X) , IEEE 802.1P,IEEE 802.1Q |
|
Working mode |
TDMA/CSMA |
|
Software |
Support VLAN,QoS |
|
Physical rate |
500Mbps |
|
Modulation method |
OFDM 1024/256/64/16 QAM,QPSK, BPSK |
|
Transmission distance |
>1000M |
|
Encryption mode |
128-bit AES encryption |
|
Power supply |
Outset 12V DC,500mA |
|
Dimension |
155mm×108mm×27mm |
|
Weight |
0.6KG |
|
Operation Temperature |
-5~55°C |
|
Storage Temperature |
-10~70°C |
|
Operation humidity |
20% - 95%(non-condensing) |
|
Storage humidity |
10% - 90% (non-condensing) |
|
Power consumption |
< 7W |
|

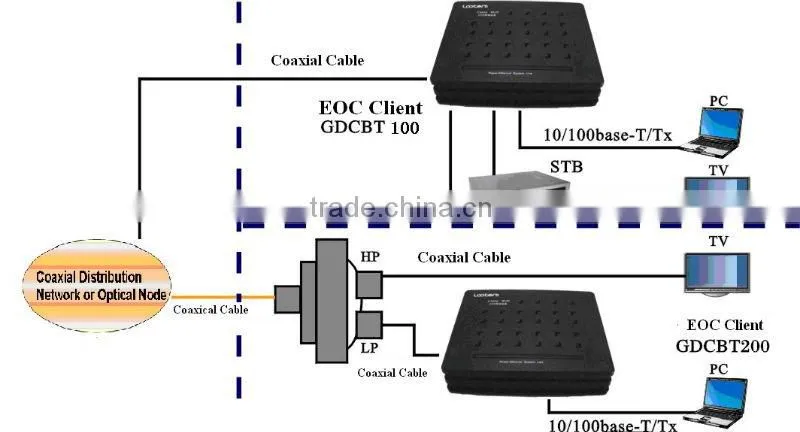

Application:
