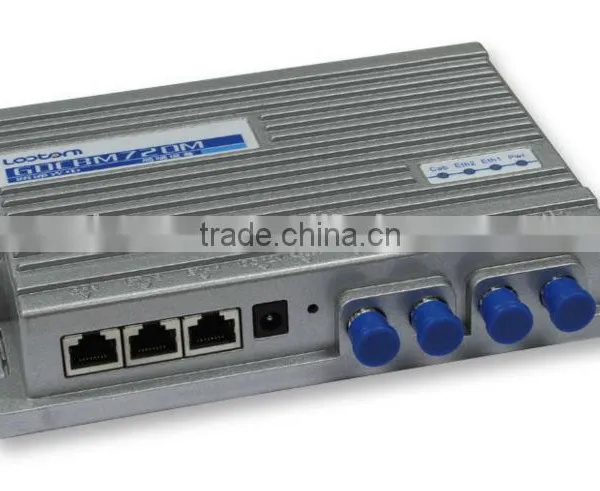

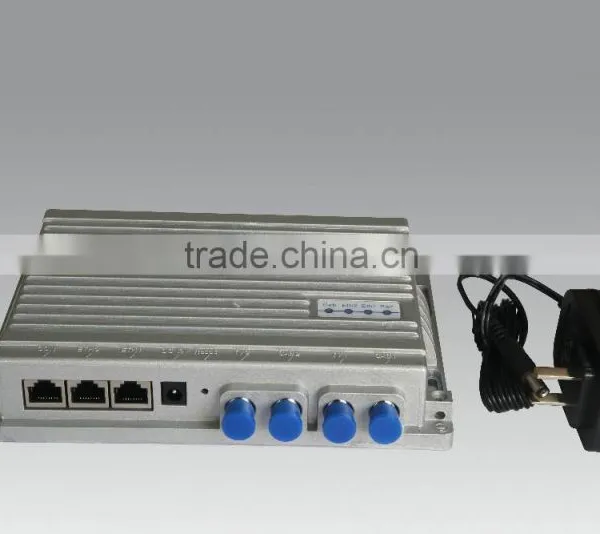

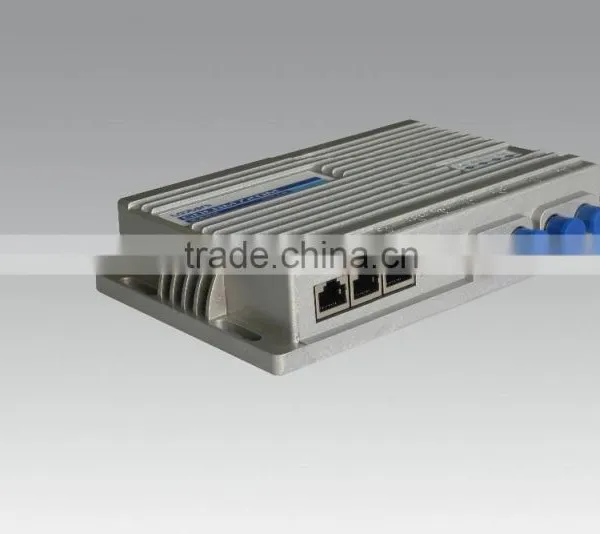

Master EOC GDCBM720M indoor (English software)Metal / Aluminum Shell EOC head-end equipment for Remote Network management
Overview
GDCBM720 series building EOC master equipment based on main chip AR7410 (INT6400 optional),canmix IP data signals and CATV signal output to the cable distribution network to achieve the transmission of IP data and television program on cable.It is located on the top of the EOC network, can connect as many as 253 CNU terminal equipment, it can also be installed in the output cable line of the HFC network opticalnode or building distribution network input line, to provide users voice, video, data and other business.
GDCBM720 series support remote network management, can login through WEB/SNMP/TELNET way .After loginning , they can perform centralized management of the operation to the EOC slave, such
as QoS Settings, encryption Settings, statistics, status information query, and software upgrades, etc.
GDCBM720 series provide symmetrical 350MBPS access, occupying less than 65 MHZ, have no
conflict with the frequency of the existing CATV system but reduce the mutual interference.Besides,
they support the existing tree and chain type CATV network with long transmission distance, high bandwidth,good fitness to network, fully meeting the requirements of combination of three network deployed by radio and television system.
Features
- Cassette body, metal/aluminum shell, good heat dissipation and electromagnetic shielding
- External type industrial grade switching power adapter supplies power.possessing multiple f unction of preventing lightning strike:
- built in varistor, vacuum discharge tube, TVS, multiple protection circuit forpreventing lightning strike and wide input voltage range (100 ~ 240 v ).
- The built-in EMI filter possesses
- good anti-interference performance with function of preventing short circuit, overload, over-voltage.
- low working temperature ensures long service life.
- Taking up 7.5 ~ 65 MHZ frequency band signal with strong anti interference ability and high bandwidth
- Modular design.Supporting1 independent data module
- Supporting 1/2 paths RF input, 1/2 ways RF output with 5-65 MHZ / 87-1000HZ interposer
- Providing two 10 f/100M/1000M adaptive Ethernet interfaces
- Supporting the console test port
- Supporting as many as 253 EOC slaves
- can be compatible with different manufacturers’ slaves equipment based on P1901 / Homeplug AV technology
- Following 802.1 Q VLAN l QoS (802.1p) and the IGMP layer 2 protocol, etc
- Supporting SNMP centralized network management which is based on national standard MIB library
- (draft), can customize and expand the MIB library according to customer's need
- Supporting the remote online firmware upgrade
Technical parameters
item |
specification |
Chipset |
AR7410(INT6400 optional) |
Standard |
IEEE802.3,IEEE802.3X,IEEE802.3u IEEE P1901 |
EOC protocol |
IEEE P1901,HomePlug AV |
Protocol |
CSMA/CA |
Physical layer rate |
500 Mbps |
Modulation method |
Supports 4096/1024/256/64/16/8-QAM,QPSK,BPSK,ROBO |
Data channel |
Supports data transmitedt between ethernet and coaxial cable network |
Transmission distance |
1 km through coaxial cable |
Security |
128-bit AES encryption |
VLAN |
IEEE802.1Q (VLAN lagging) |
QoS |
Supports ToS and CoS package classification |
flow control |
Supports flow control based at ports |
SNMP |
SNMP v1 v2 v3 |
802.1X |
Supports IEEE802.1X access certification |
Watchdog |
Supports monitoring CPU by watchdog |
Management |
Supports user management based on SNMP,WEB and CLI |
LED light |
Status indicator of Power,EOC,ONU |
Interface |
1/2 RF input interfaces,1RFoutput interface,2 GE interfaces,1local Console interface and 1 reset button |
ONU optical interface |
RX wave length:1490nm,TX wave length:1310nm,transmitting power-1~+4dBm, |
Power consumption |
<=6W |
Power supply |
External type industrial-grade switching power adapter |
Dimension |
162mm×152mm×33mm |
surroundings dimension |
Storage Temperature:-35 ~+70 |
Customers who bought this product will also consider our following products:
GDCBT 710-outdoor master GDOU 8030
GDOU2010 GDOU8040N
and other product, for futher information, please refer to our company website.
