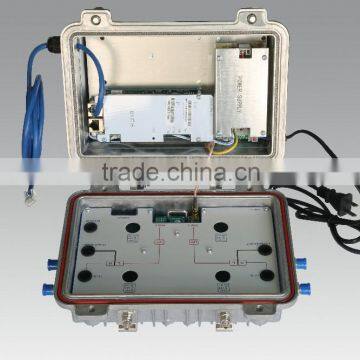

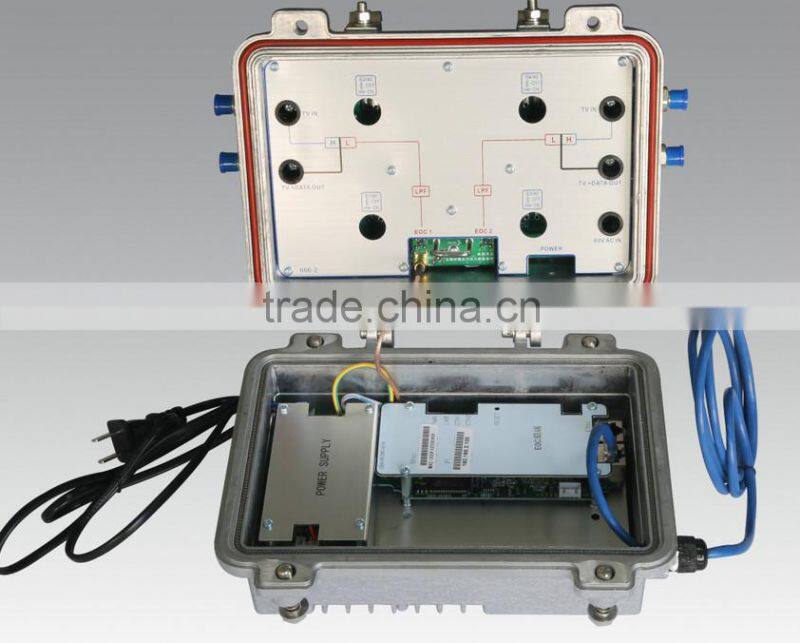

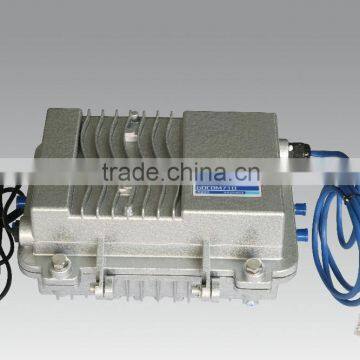

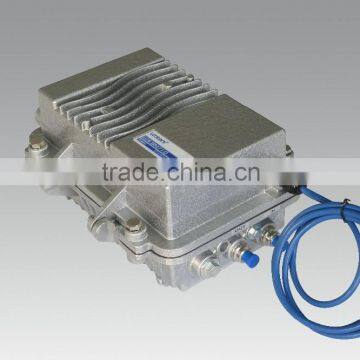

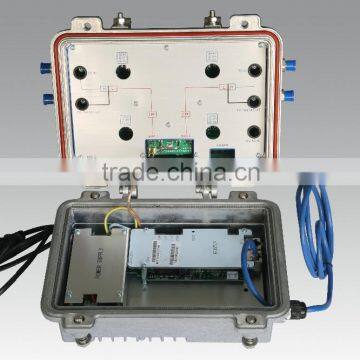

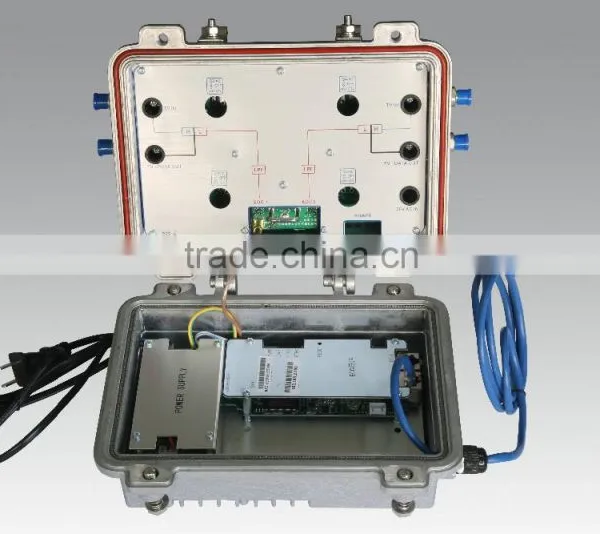

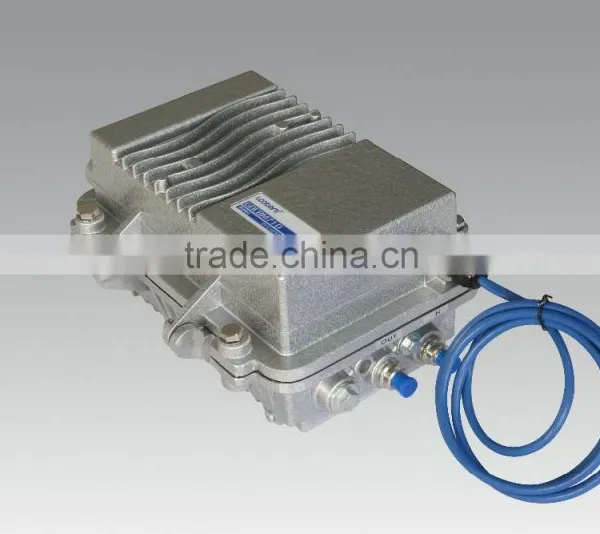

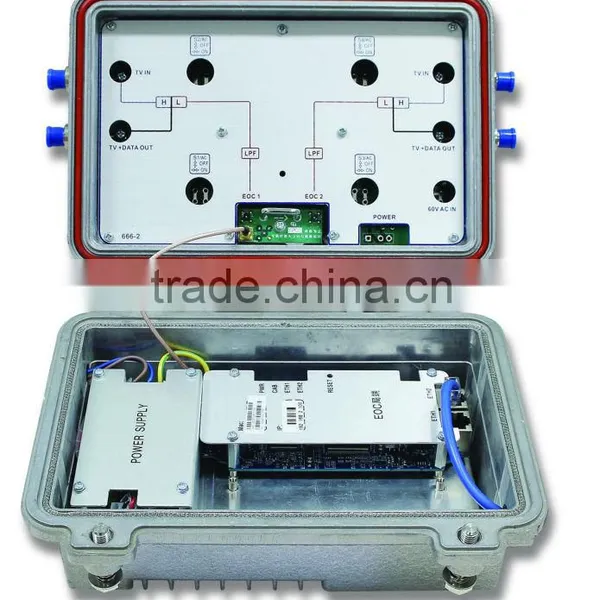

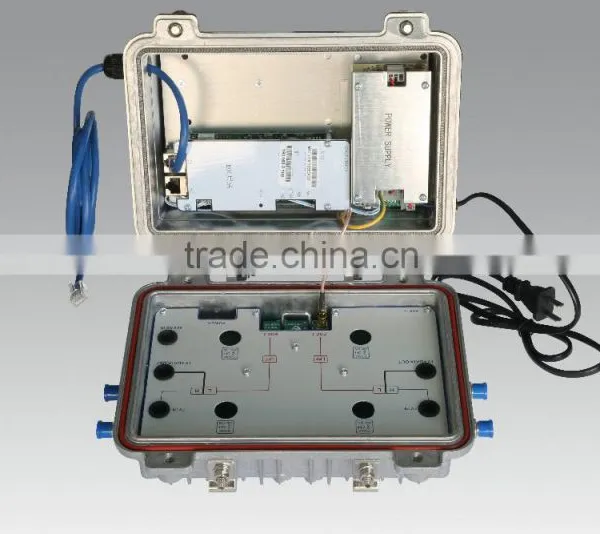

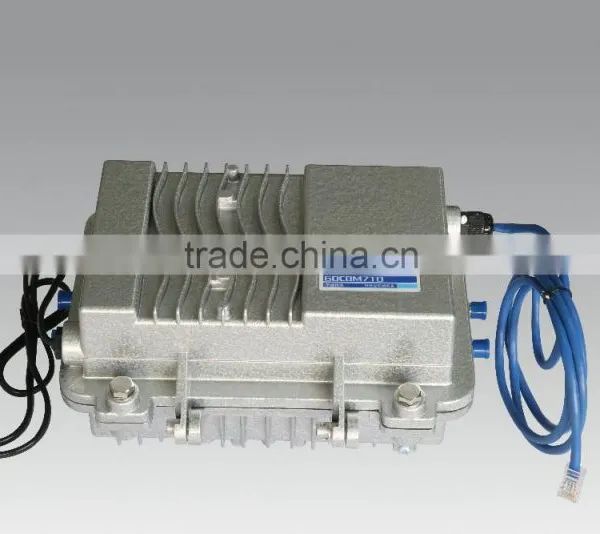

EOC Master GDCBM710 Outdoor (English SNMP) eoc trunk (AR7411 chip) (English software)
Overview:
GDCBM720 series EOC master equipment based on main chip AR7410 , can mix IP data signals and CATV signal output to the cable distribution network to achieve the transmission of IP data and television program on cable.It is located on the top of the EOC network, can connect as many as 253 CNU terminal equipment, it can also be installed in the output cable line of the HFC network optical node or building distribution network input line, to provide users voice, video, data and other business. GDCBM720 series support remote network management, can login through WEB/SNMP/TELNET way .After loginning , they can perform centralized management of the operation to the EOC slave, such as QoS Settings, encryption Settings, statistics, status information query, and software upgrades, etc.
GDCBM710 series independent master is the multi-media access device which is based on HomePlug AV technique,use AR7411 chip, the master make Ethernet signal modulate, and mixed it with TV signal, transmit the multi-media signal to terminal through the CATV coaxial network.
- Feature
GDCBM710 use AR7411 chip, adopt plug and play design, set up very easily, no need adjustment, the working status and frequency may auto scan and allocated.
2.1 Common feature
l Aluminum die-casting housing, excellent water-proof and heat dissipation performance
l Compatible with mature technique HomePlug AV (IEEE P1901)
l Physic rate is up to 500Mbps
l OFDM modulation technique, have good anti-noise performance
l Upstream and downstream transmit symmetry
l Support 10/100/1000Base-T/Tx Ethernet interface, support MDI/MDIX
l Comply with many kinds of network protocols
l Plug and play, setup program is not request
l It is no need to change the existing HFC network by using taps/splitters.
l Support VLAN, total QoS quality guarantee
l Support MIB library based at broadcast and television standard, support SNMP v1/v2/v3
2.2 Special function
n Multi-module design, high shielding performance
n Support modules upgrade
n Provide 1/2 way TV input
n Provide 1/2 way cable signal output
n AC220V or AC60V power is option
- Primary allocation
GDCBM710 master’s default IP address: 192.168.1.228, default user name and password: admin/password. Connect the device to PC, ensure this PC has the network segment’s address, open IE, input 192.168.1.228 at the address bar, enter into the system, input user name and password, log on, Then make the setting as per the left guide bar. If want to recover the default setting, please press the “reset” button while power on.
- Common faults and indicator description
LED |
Color |
status |
description |
PWR |
green |
light |
Power is normal |
dark |
Power or module is abnormal |
||
CAB |
green |
green light |
Cable interface connected normal |
dark |
Cable interface connected abnormal |
||
ETH1 |
green |
light |
Ethernet interface connected but no communication |
flash |
Ethernet interface has DATA transceiving |
||
dark |
Ethernet interface un-connected |
||
ETH2 |
green |
light |
Ethernet interface connected but no communication |
flash |
Ethernet interface has DATA transceiving |
||
dark |
Ethernet interface un-connected |
According to the above table, the user may make the initial analysis and alarm adjustment, if occur the problem which don’t list, please contact our technique department.
- Specification
Item |
Description |
Standard |
IEEE802.3,IEEE802.3x,IEEE802.3u,IEEEP1901 |
EoC protocol |
Comply with HomePlug AV standard |
Protocol |
CSMA/CA |
Physical rate |
500Mbps |
Modulation method |
support 4096/1024/256/64/16/8-QAM,QPSK,BPSK,ROBO |
Data channel |
Support data transmit between ethernet and coaxial cable network |
Transmission distance |
1 km through coaxial cable |
Security |
128-bit AES encryption |
VLAN |
IEEE802.1Q(VLAN lagging) |
QoS |
Support ToS and CoS package classification |
flow control |
Support flow control based at port |
SNMP |
SNMPv1v2v3 |
802.1X |
Support IEEE802.1X access certification |
Watchdog |
Support monitoring CPU by watchdog |
Management |
Support user management based at SNMP,WEB and CLI |
LED light |
Power, Ethernet, Cable |
Interface |
1/2 TV interface 1/2 RF interface 2 Gbps ethernet ports 1 RST button |
Power consumption |
<=9W |
Power supply |
Input : AC220 / AC60V |
Dimension |
275mm×200mm×125mm |
Weight |
3.5KG |
Operation Temperature |
0~45°C |
Storage Temperature |
-20~70°C |
Operation humidity |
10% -90%(non-condensing) |

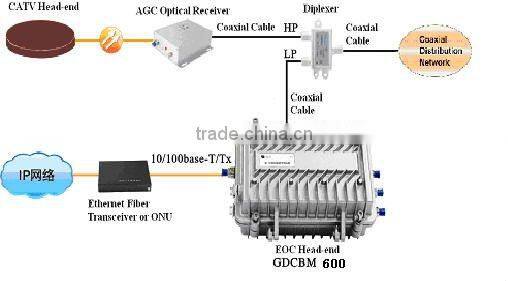

Application:
