Specifications of satellite antenna S450:
Size: width 500mm× height 550mm.
Weight: 14.5kg.
Diameter of parabolic antenna: 450mm.
Antenna gain: 33.5dBi.
Stability mechanism: three axis tracking system.
Power: 15.6V~30V DC(35W)
No condensation relative humidity: Rh<95%.
Protection degree: IPX6 for outdoors and IP22 for indoors.
Ambient temperature: -20℃~+70℃
Frequency range:Ku Band(10.7~12.75GHz)
Minimum satellite strong field: 49dBw.
Reception polarization: line/circle polarization Optional.
Azimuths range: 680 degree.
Elevation range: 0~90 degree.
Feature:

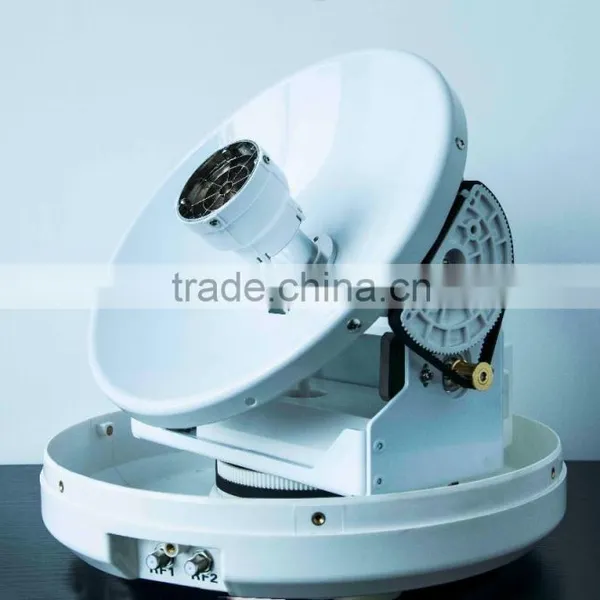

Simple outline and compact structure with high performance Cassegrain antenna by the diameter of 45cm.
Excellent software and hardware which can preset three satellites at different tracks to realize the function of one key switch satellite.
Built-in positioning module of GPS and three axis tracking system makes it possible to receive direct broadcast satellite program in the maritime environment of big waves or big storms.
The antenna control unit can upgrade by connecting to computer and display the status of satellite and Self diagnosis information.
Leading international technology of dynamic wave velocity scanning and Unique algorithms arithmetic software.

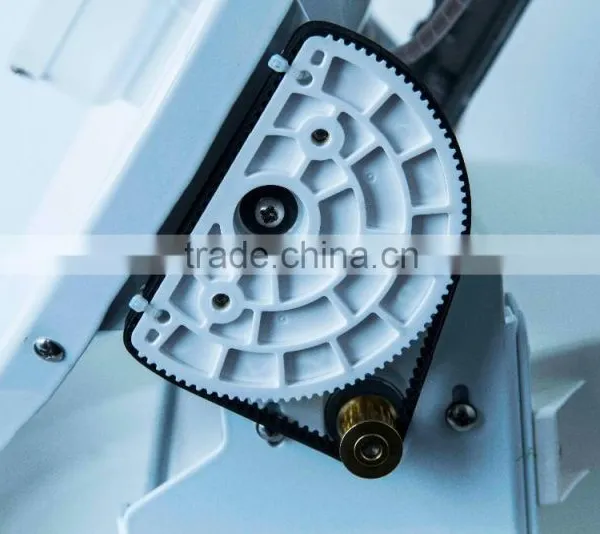

Azimuth rotating mechanism of 680 degree makes high frequency rotary joint hard to damage.
.
