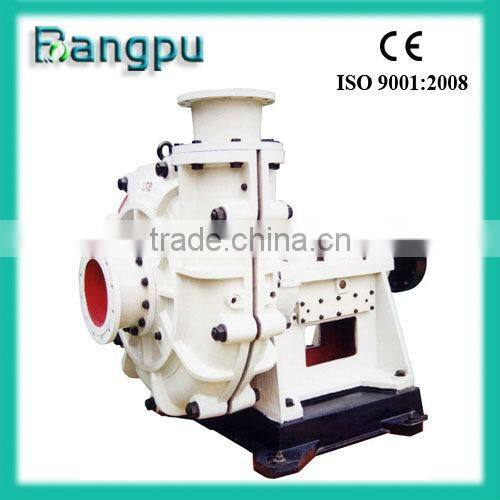

high pressure sand slurry suction water pump for mine with expolisve motor
Specification:
Capacity:162-360m³/h
Head:12-56m
Speed:800-1550rpm
Impeller diameter:365mm
Pump weight:626kg
.
Slurry Pump Structure:
1.Pump head-Double-case pump is vertical split, the discharge can be installed at 8 different positions with an interval of 45°.
2.Bracket-Horizontally split or cantilever
3.Shaft seal for choosing-Expeller seal and packing seal;Packing seal;Mechanical seal
4.Expeller, Expeller ring,Shaft seal-Wear-resistant materials,long-lifespan;increases Mean Time Between
Failures(MTBF) greatly.
5.Bearing-Lubricated with diluted oil; reasonable cooling system guarantees the bearing works at the optimal temperature.
6.Flowing parts-special material;abrasion-corrosion resistant
Electric motor mud pump slurry pumps series models
Heavy Horizontal Slurry Pump | |||||
Pump Model |
Performance |
||||
|
CAPACITY (m³/h) |
HEAD (m) |
SPEED (r/min) |
ALLOWABLE MATING MAX.POWER(KW) |
NPSH (m) |
|
1.5/1 |
12.6~28.8 |
6~68 |
1200~3800 |
15 |
2-4 |
1.5/1 |
16.2~34.2 |
25~92 |
1400~2200 |
30 |
2-5.5 |
2/1.5 |
32.4~72 |
6~58 |
1200~3200 |
15 |
3.5-8 |
3/2 |
39.6~86.4 |
12~64 |
1300~2700 |
30 |
4-6 |
3/2HH |
68.4~136.8 |
25~87 |
850~1400 |
60 |
3-7.5 |
4/3 |
86.4~198 |
9~52 |
1000~2200 |
30 |
4-6 |
4/3HH |
126~252 |
12~97 |
600~1400 |
120 |
2-5 |
6/4 |
162~360 |
12~56 |
800~1550 |
60 |
5-8 |
6/4HH |
324~720 |
30~118 |
600~1000 |
560 |
3-8 |
8/6 |
468~1008 |
20~94 |
500~1000 |
560 |
4-12 |
8/6 |
360~828 |
10~61 |
500~1140 |
300 |
2-9 |
10/8 |
666~1440 |
14~60 |
600~1100 |
120 |
4-10 |
10/8 |
612~1368 |
11~61 |
400~850 |
560 |
4-10 |
12/10 |
936~1980 |
7~68 |
300~800 |
560 |
6 |
14/12 |
1260~2772 |
13~63 |
300~600 |
560 |
3-10 |
16/14 |
1368~3060 |
11~63 |
250~550 |
1200 |
4-10 |
20/18 |
2520~5400 |
13~57 |
200~400 |
1200 |
5-10 |
Heavy Slurry Pump Material:
a)Impeller: high-chromium alloy or rubber
b)Volute liner: high-chromium alloy
c)Shaft: 45# steel
d)Shaft sleeve: ductile casting
e)Frame plate: casting
f)Packing seal: Mechanical seal
Structure:
