Home > Products > Industrial Pumps > DL Series Multi-stage pipeline pump
DL Series Multi-stage pipeline pump
- 1000 Set / Sets per Month
- Shanghai
- T/T Credit Card
- MONO progressive block for prefabried concrete houses
- MONO progressive block for concrete pump spare parts
- MONO progressive block for ready mix concrete trucks
- MONO progressive block for concrete statue molds
- MONO progressive block for concrete columns mold
- MONO progressive block for gearbox for concrete mixer
Product Details
Place of Origin: | Shanghai, China | Brand Name: | BANGPU | Model Number: | DL |
Theory: | Centrifugal Pump | Structure: | Multistage Pump | Usage: | Water |
Power: | Electric | Standard or Nonstandard: | Standard | Fuel: | Other |
Pressure: | High Pressure | Application: | Other, Water Supply and Drainage |
Product Description

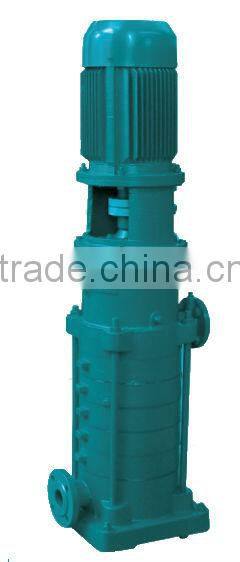

Multi-stage pipeline pump
1. APPLICATION
1) Applies to municipal water supply and pressurization
2) Water supply of factory
3) Water supply of refrigerating system and cooling system of heating system of air conditioner
4) Supply of firefighting sprinkler system
5) Applies to divisional firefighting water supply of high rise building
2. FEATURES
1). DL multi-stage pipeline centrifugal pump is a new generation product designed and made by our company on the basis of the excellent pump types both domestic and overseas;
2) The pump conforms to standard of " Technical Specificaton for Centrifugal Pumps-ClassIII" GB/T5657;
3) The multistage centrifugal pump adopts the motor with IP55 protection class and F Insulation class, the motor with the features of low noise, high torque and better starting performance;
3). The vertical multi-stage pump has less land area, high efficiency, nice appearance, light weight and small noise at running;
3. RANGE OF PERFORMANCE
Item | Data |
Capacity | 3.7---324m3/h |
Head | 12---240m |
Outlet Diameter | 25---350mm |
Liquid Temperature | ≤105°C |
Operating Pressure | ≤2.5Mpa |
Rotate Speed | 1480/2950r/min |

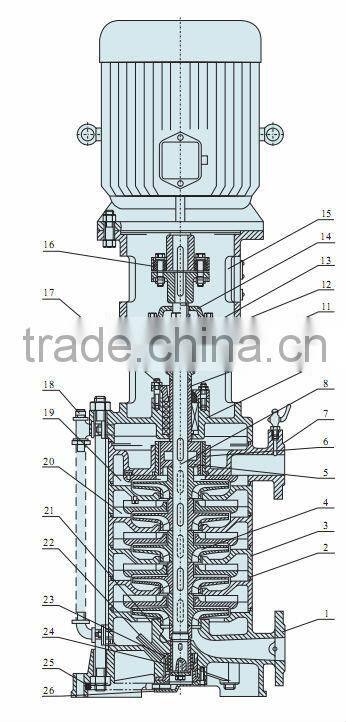

4. STRUCTURE DRAWING

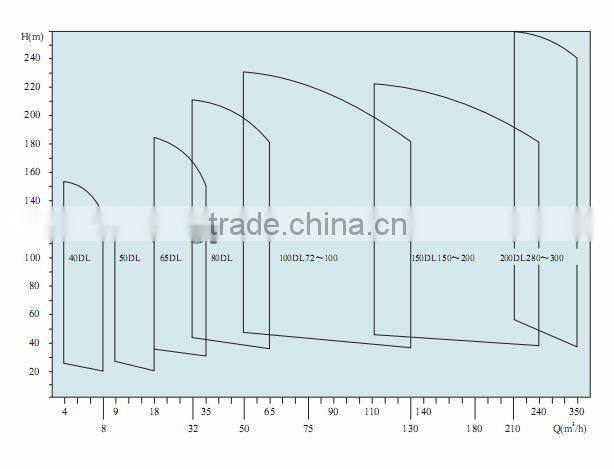

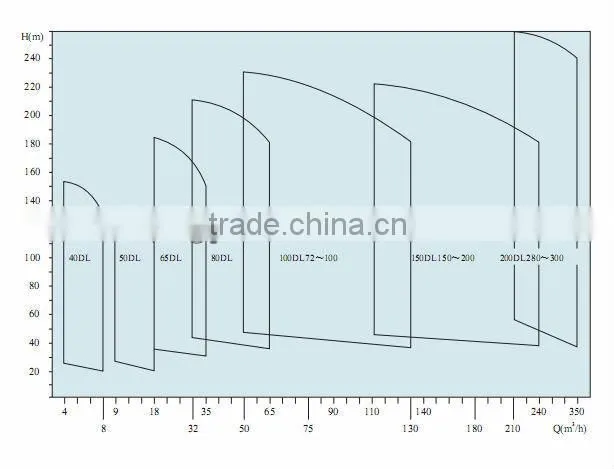

5. DL TYPE PUMP ATLAS OF STYLE
6.CE CERTIFICATE
Other Pumps:
Company Introduction
Shanghai Bangpu Industrial Group Co., Ltd. is a group enterprise specializing in the research and production of various fluid transfer equipments. Our main products include pumps,valves,motors,electric series and water supply system package. Waste water treatment, environmental protection equipments, accessories are also within our main business area. In 2008, Bangpu Group acquired Shanghai Electrical Machinery Factory Co., Ltd. and embarked on a higher speed growing path.
