13.3 inch 5 wire resistive touch screen with USB/RS232 interface
- 10000 Piece / Pieces per Month
- Shenzhen
- T/T Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 13.3'' | Type: | Resistive |
Interface Type: | USB, Other, USB, rs232, USB or RS232 | Resolution: | Other, 1024 x 768, 4096*4096 | Brand Name: | GreenTouch |
Model Number: | GT-5W-13.3 | Place of Origin: | Guangdong, China |
Product Description
5 Wire 13.3 inch Resistive Touch screen Panel kit
Easy communication way:Skype:touchscreensales
Descriptions:
GreenTouch 5-wire resistive touch screen—features unrivaled accuracy, reliability, superior light transmission, highest touch point density, sensitive and drift-free. Imperious to environmental conditions such as liquid splashes and washdown, these screens are the most contamination-resistant available. It can be touched by finger, gloved finger, eather or stylus pen. The life time is up to 35 million finger touches, much better than 4 wire resistive touch screen, delivering fantastic performance in retail, industry, transportation, financial, hospital, Kiosk or telecom field. .
Benefits:
.Long lifetime (almost ten times of 4 Wire Resistive Touch Screen)
.Finger, gloved hand and stylus activation
.Contaminant proof and liquid resistance
.High accuracy and durability
.High resolution and sensitivity
Applications:
·GPS
·POS
·Medical
·All-In-one
·Light industrial
·Portable sport devices
·Access control terminals
·Portable medical devices
·LCD and LED touch monitors
·Home appliances and other fields
EETI RS232/USB controller show:

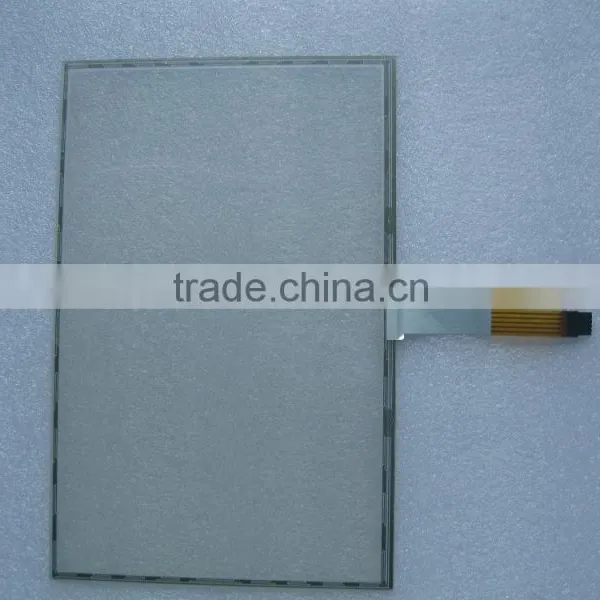

Product pictures:
Specifications:
Item model | GT-5W-*** | |
Detection method | 5 Resistive | |
Available Size | 10.4"~22" | |
Aspect ratio | 4:3/16:9/16:10 | |
Input method | Finger or touch pen | |
Touch action force | 20~80g | |
Position accuracy | 4.5~5mm | |
Operating Voltage | DC≤10V | |
Operating current | 5~25mA | |
Operating temperature | -10°C~60°C | |
Storage temperature | -20°C~70°C | |
Humidity | 10%~90%RH at 60°C, non-condensing | |
Relative humidity | 10%~90%RH at 40°C, non-condensing | |
Response time | <10ms | |
Transparency | ≥78% | |
Surface hardness | 3H | |
Material | Glass + Film | |
Thickness | ITO Glass:1.3~2.3mm | |
Light transmission | 92%~100% | |
Durability | Scratch-free; More than 50,000,000 touches in one location without failure | |
Surface Disposal | Glare hard coating;Anti-Newton ring | |
Working environment | Under sunlight,indoor and outdoor | |
Pen hitting life | ≥10,000,000/point | |
Pen sliding Durability | ≥500,000 times | |
Finger Touch life | ≥35,000,000 times | |
Certificates | CE,FCC,RoHS | |
OS | EETI USB Controller | Windows 2000/Windows XP/Win 7/ Win8/Linux/Android/DOS/QNX/MAC |
EETI RS232 Controller | Windows 2000/XP/Win7 8/Linux/Android/Linux(Ubuntu 5.1/6.06 etc.)/Windows NT4/DOS/QNX/Windows CE |
