4 wire 5inch resistive touch screen
Specifications :
4 Wire Resistive Touch Screen/Touch Screen/Resistive Touch Screen
1.1 Environmental characteristics:
NO. |
Item |
Specification |
1 |
Operation temperature |
-10°C~+60°C |
2 |
Storage temperature |
-20°C~+70°C |
1.2 Electrical characteristics :
NO. |
Item |
Specification |
Remarks |
1 |
Rated Voltage |
DC 5V 1mA |
|
2 |
Linearity |
1.5% |
Load 120gf |
3 |
Resistance |
Film side: 200Ω~1250Ω |
FPC At connector |
Glass side:100Ω~500Ω | |||
4 |
Insulation Resistance |
20 MΩ |
DC 25V |
Mechanical characteristics:
NO. |
Item |
Specification |
Remarks |
1 |
Operating force |
20-150g |
R0.8 |
2 |
Hardness of surface |
≥3H |
JISK5400 |
3 |
Light Transmission |
≥80% |
|
4 |
FPC Bending |
Bend radius 1.0mm,above 3 times |
Content 3.2 |
5 |
FPC peeling strength |
Horizontal direction 180degree,0.5kgf Will not peel within 10 minutes |
Content 3.2 |
Reliability test :
NO. |
Item |
Specification |
Remark |
1 |
High temperature storage |
50°C, 40hr |
|
2 |
Low temperature storage |
-30°C, 40hr |
|
3 |
High temperature high Humidity storage |
70°C,70%RH,120hr |
|
4 |
Temperature Cycling |
-20±2°C — 70±2°C (0.5hr each),10cycles |
|
5 |
Input life |
More than 5,000,000 times (Tip R0.8mm) |
|
6 |
lineation test |
More than 100,000 times (Tip R0.8mm) |
|

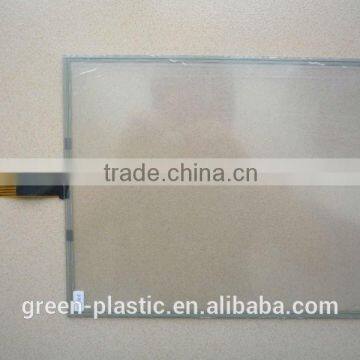

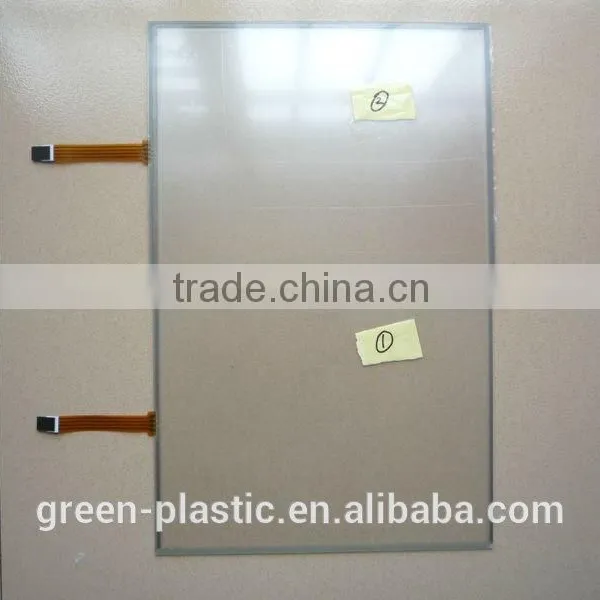

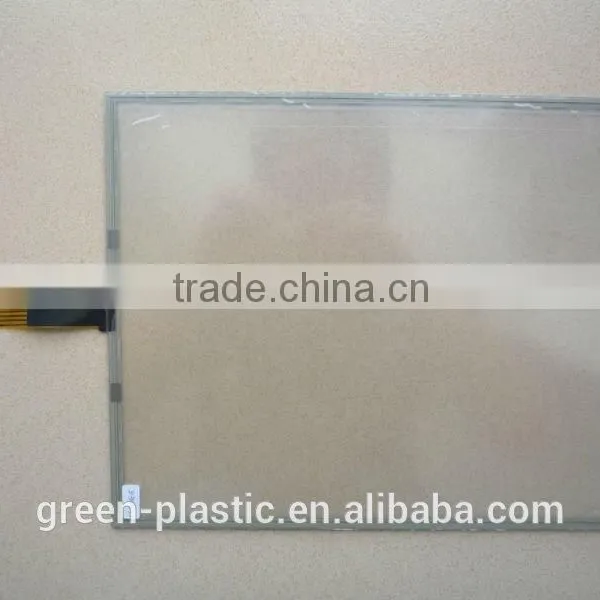

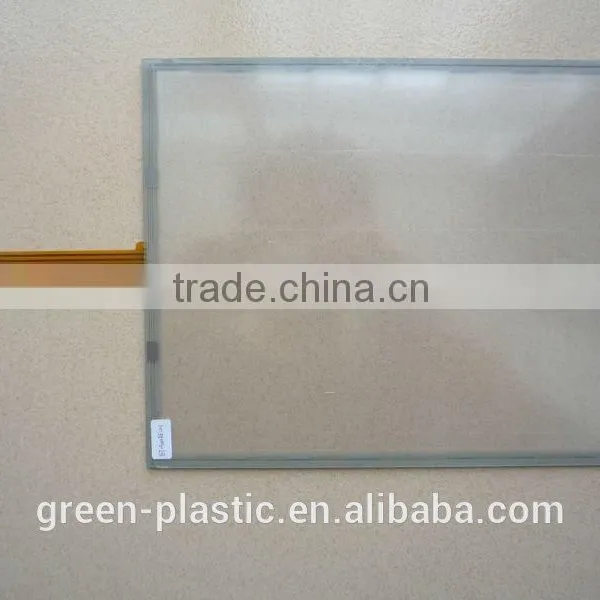

Products shown :
Green Touch certification approved:
Green Touch Factory shown:
