Help CenterFilm to Glass Type 5wire 17inch Resistive Touch Screen Panel 4:3
Related Products
-
POS Devices Touch Panel for POS,5 Wire Resistive Touch 15.6inchUS$ 28 - 40MOQ: 1000 Pieces -
GreenTouch 5 Wire Resistive 15.6inch Touch Screen for POSUS$ 28 - 40MOQ: 1000 Pieces
-
Factory Supply 5 Wire Resistive Touch Screen Panel for POS DeviceUS$ 10 - 40MOQ: 100 Pieces
-
5wire 17"resistive Touch Panel With USB ,R232controllerUS$ 30.30 - 30.30MOQ: 1 Unit
-
15"5wire Resistive Touch Screen,ITO Film to Glass Screen With 2.54pitch,5pin Line 4:3US$ 28.20 - 28.20MOQ: 1 Unit
GreenTouch®Professional Manufacturer of Touch Products
Resistive Touch panel Basic Specifications:
- Connect interface:USB or R232
- Size:size can be customized 5"~22".ITO glass thickness:0.7mm/1.1mm/1.8mm ,ITO glass type:standard or tempered glass(custom).total thickness:1.0/1.4/2.1mm.
- support systems:wince,win7/8,8.1/10,linux,Android,Mac.
- only one touch point
- low cost and durable with high stability .
- Fast delivery:express or airfreight ..it's up to you.
- cetification:CE,FCC,ROHS.
5wire Resistive Touch Screen Technology:
5 wrie resistive touch screen is a two-layer structure, two materials (film or glass) with ITO are attached with a gap between them so that the ITO layers are facing each other. Touch input will be made as the top layer is pressed down and the two ITO layers contact. There are insulators called spacing dots between the top and bottom ITO layers. These spacing dots prevent unintended contacts (inputs) of the ITO layers when not pressed.
When the top ITO film is pressed and makes contact with the bottom glass, the contacted area will be detected via electrical conduction. The notable characteristic of 5wire resistive is that only the bottom glass has detecting function. Even if the top ITO film is damaged, the detecting function will not be affected (except for the damaged area).
Specification for 5wire resistive touch screen :
Interface Type: |
USB or RS232 |
Resolution |
4096x4096 |
Screen Ratio |
4:3 16:9 or 16:10 |
Material |
Glass + Film or Film + Film |
Certificates |
CE, FCC, RoHS |
Input method |
Finger or touch pen |
Position accuracy |
2~5mm |
Operating Voltage |
DC ≤ 10V |
Operating current |
5~25mA |
Response time |
Less than 10ms |
Touch action force |
20~100g |
Operating temperature |
-10°C~60°C |
Storage temperature |
-20°C~70°C |
Surface hardness |
3H |
Working environment |
Under sunlight, indoor and outdoor |
Transparency |
≥80% |
Isolation resistance |
≥20MΩ DC 25V |
X.Y resistance |
30Ω~350Ω according to the size |
Linearity |
≤2% |
The number of hits |
≥35,000,000/point |
Warranty |
1 year |
Support Systems |
wince,win7/8,8.1/10,linux,Android,Mac |

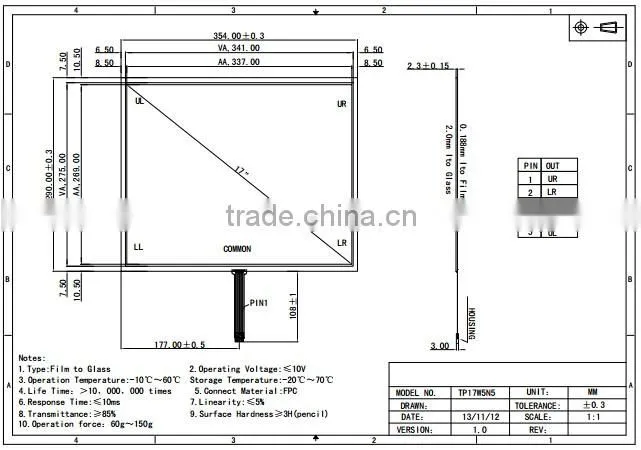

Datasheet of 5wire 17inch resistive touch screen:

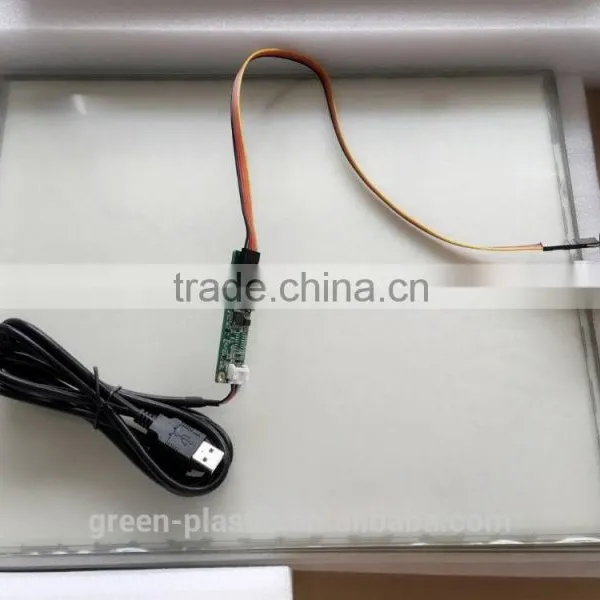

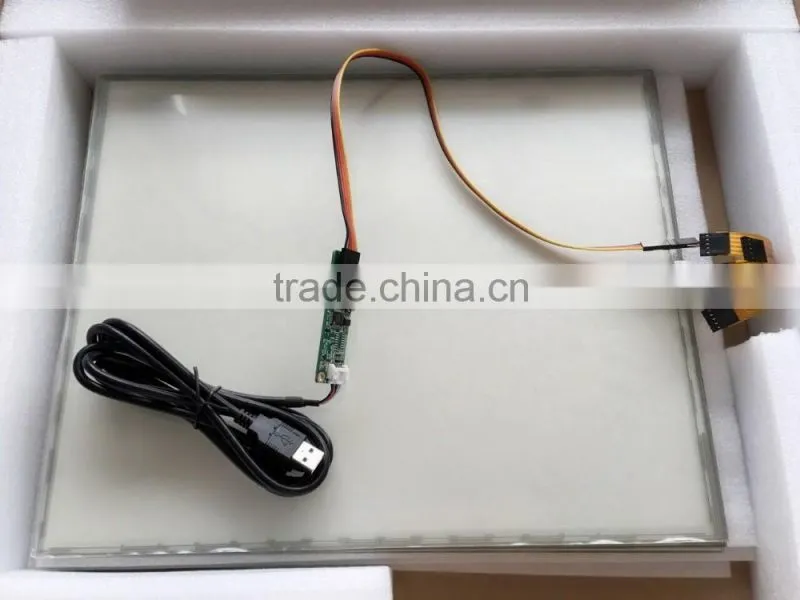

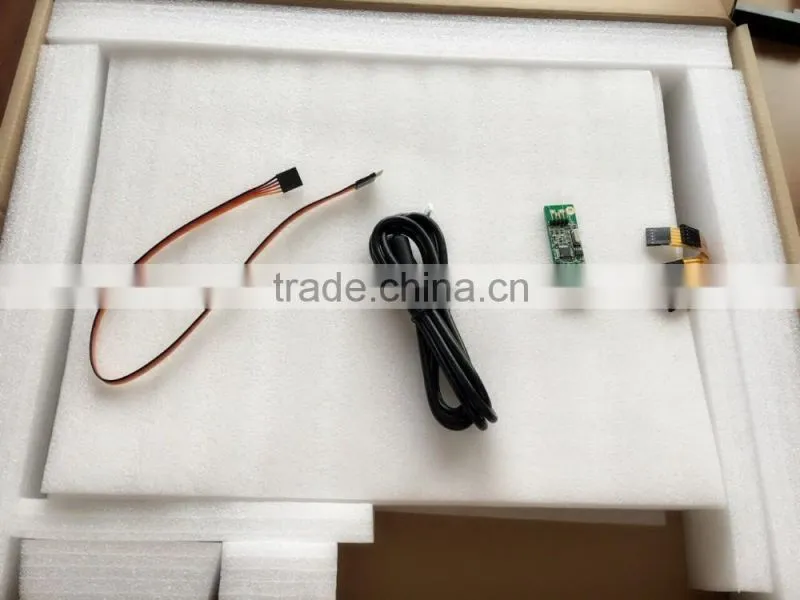

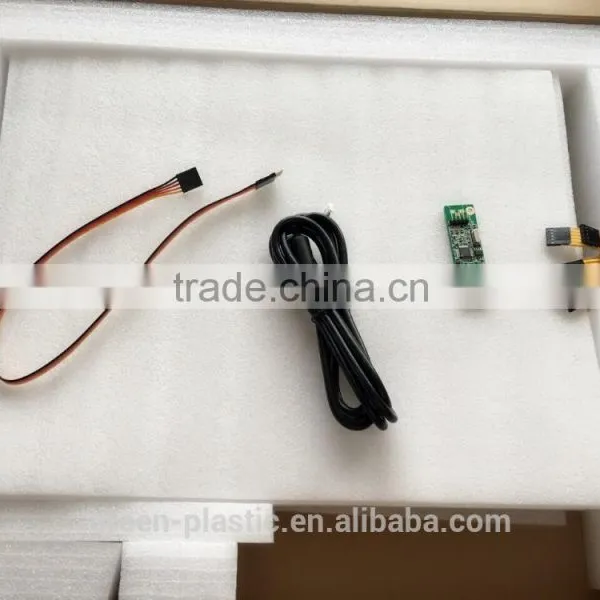

Real 5wire 17inch resistive touch screen 4:3 shown:
Application for 5wire resistive touch screen :
Suitable for GPS, medical, Light industrial ,Pos,Portable sport devices, Access control terminals, Portable medical devices, LCD and LED touch monitors,All-In-One ,Home appliances and other fields
Suitable for GPS, medical, Light industrial ,Pos,Portable sport devices, Access control terminals, Portable medical devices, LCD and LED touch monitors,All-In-One ,Home appliances and other fields
Certification shown:

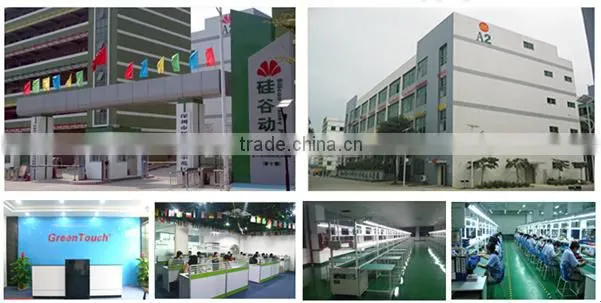

Factory shown &Delivery way:
Contact information shown:
