48-160/h Mobile Asphalt Plant Supplier
US$ 228,000 - 595,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Liaoyuan
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Mini Moblie Asphalt MixerUS$ 50,000 - 229,000MOQ: 1 Set -
Mini Asphalt Plant, Mobile Asphalt Drum Mixing Plant ManufacturerUS$ 70,000 - 166,000MOQ: 1 Set
-
Moving Fast and Easy Installation Asphalt Mixing PlantUS$ 230,000 - 595,000MOQ: 1 Set
-
MDHB60 Mobile Mini Asphalt Plant 60t/h Best Price With CE Gost-R ISO CertificateUS$ 75,000 - 165,000MOQ: 1 Set
-
MDHB40 Mobile Drum Asphalt Plant Best Price 40t/hUS$ 75,000 - 165,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Liaoyuan
Model Number
YLB
Voltage
220V/380V-50Hz (adjustable)
Certification
CE ISO GOST
Warranty
12 months after erecting the whole plant.
After-sales Service Provided
Engineers available to service machinery overseas
YLB Mobile Asphalt Plant Technical Parameters

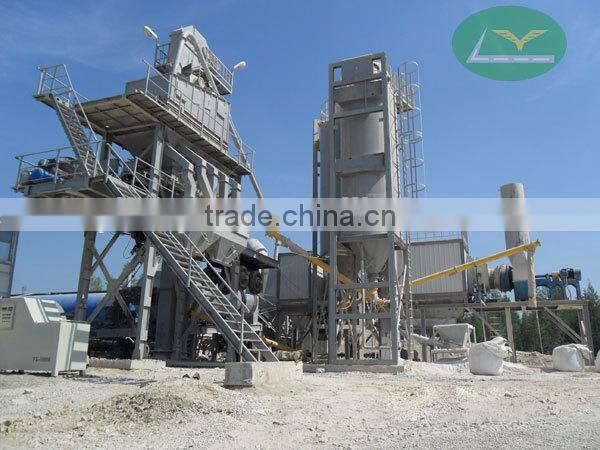

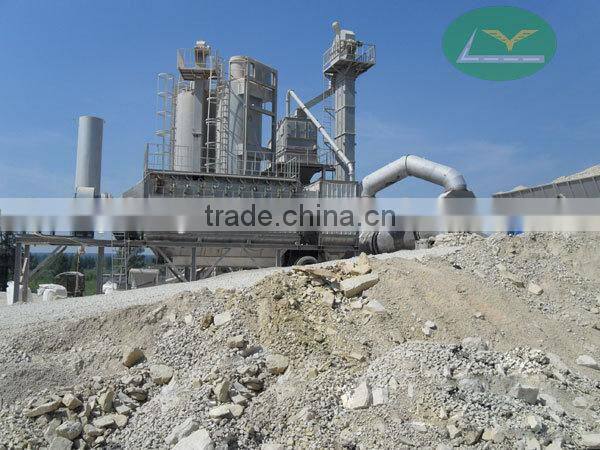

YLB Series mobile asphalt mixing plant is designed on the basise of LB series asphalt mixing plant, not only retains the advantages of LB series asphalt mixing plant, such as accurate screening & weighting, batch mix, and high quality asphalt, but also increased moving fast, easy installation features.

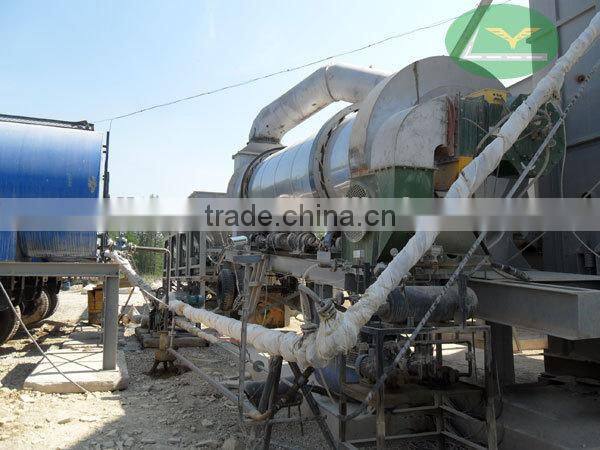

YLB Series mobile asphalt mixing plant is modular in design, compact structure, all the major components, such as cold aggregate supply system, drying drum, mixing tower, dust collector system, bitumen supply system, powder supply system, etc., can be hauled overall without any disassembly, transitions quickly and easily. YLB Series mobile asphalt mixing plant can greatly save the time and costs of installation.
| Model | YLB600 | YLB800 | YLB1000 | YLB1500 | YLB2000 | |
| Capacity | 48 t/h | 64 t/h | 80 t/h | 120 t/h | 160 t/h | |
| Mixer Capacity | 600 kg/batch | 800 kg/batch | 1000 kg/batch | 1500 kg/batch | 2000 kg/batch | |
| Fuel Consumption | Diesel consumption: 5.5-7 kg/ton | |||||
| Weighing Precision | Hot aggregate: ±0.5%; bitumen: ±0.3%; filler: ±0.2% | |||||
|
Hot Asphalt Temperature |
130℃-165℃ (adjustable) | |||||
| Air Emissions | ≤ 20 mg/Nm3 | |||||
| Working Noise | ≤ 70 db(A) | |||||
| Operation | Full Auto/Manual Operation | |||||
| Installation Power | 167 kW | 208 kW | 266 kW | 333 kW | 347 kW | |
| Voltage | 220V/380V-50Hz (adjustable) | |||||
|
Plant Covering Area |
Length | 35 m | 40 m | 40 m | 45 m | 50 m |
| Width | 28 m | 30 m | 30 m | 35 m | 40 m | |
| Height | 15 m | 15 m | 15 m | 17 m | 17 m | |
| Total Weight | 79 t | 115 t | 128 t | 153 t | 205 t | |
| Documents | Lay-Out/ Electric Circuit Diagram; Chinese-English Operation Manual; Qualification Certificate. | |||||
