Specifications
1)Transporting pure water2)Mechanical seal No leak
3)Medium temperature lower..

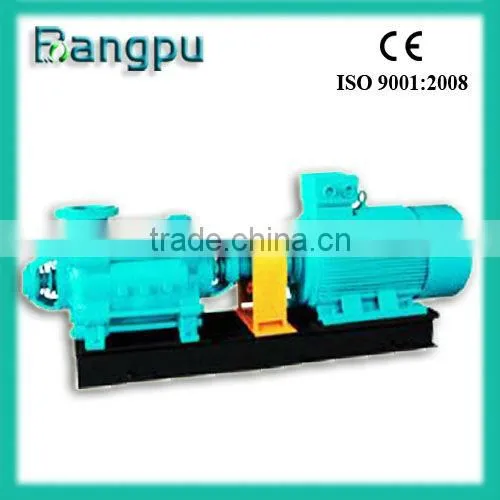

D horizontal multistage high pressure electric pump
<1>Performance :
a)Flow:4-2400m3/h
b)Head:8-150m
c)Medium temperature:-20-120oC
d)Operation pressure:≤1.6Mpa
<2>Features:
a)Compact structure
b)Stable running, low noise
c)No leakage
d)Convenient operation
e)Viewing from the inlet of the pump, the outlet of it can
be mounted in one of the three ways, horizontally leftward,
vertically upward and horizontally rightward
<3>Application:
a)Municipal water supply and drainage
b)Water circulation of air conditioner
c)Agriculture hydraulic engineering,such as irrigation,
drain flooded fields etc.
d)Industrial water supply system,fire fighting system,
drainage of heating system.
e)Transport of clean water or liquid of which physical
chemical properties similar as water
<4>Description of Structure:
Model D pump consists of four parts, stator, rotor , bearing and shaft seal:
1.Stator consists of inlet, mi ddle and outlet sections and the guide vane etc., with the take-up bolt tightly clamping a ll sections to form a working room. The inlet of it stands horizontally while the outlet vert ically upward.
2.Rotor consists of the shaft, impeller, balancing disk and muff etc., the shaft passes the power to the impelle r to have it work; the balancing disk balances the axia l force; and replaceable muff is mounted on both sides of the shaft to protect it.
3.There are rolling and sliding bearings:
The rolling bearing consists of bearing seat, be aring and bearing gland and uses grease for lubrication.
The sliding bearing consists of bearing body and cover, liner, dust-proof disk, oil leveller, oil throwing ring etc., and uses thinned oil for lubrication.
4. The shaft is sealed wit h stuffing and the sha ft seal consists of the sealing co ntent s, stuffing, baffle. The li quid in the sealing work-ro om functions water-sealing, water-cooling and water lubr icating and the water for water-sealing comes from the pres sure water inside of the pump .
In addition, the pump is direc tly actuated by the prime over through the elastic clutch and, viewing from the prime mover, moves CW.A mechanical seal can also be used upon the requirem end from users.

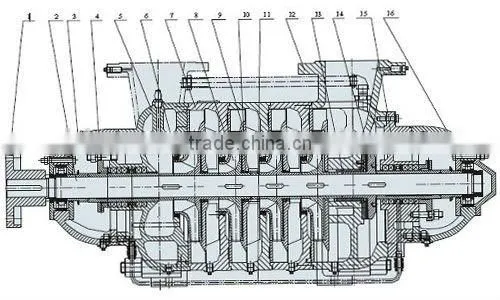

Structure of MD pump:

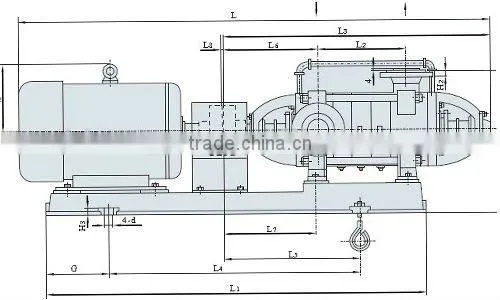

EXTERNAL AND ERECTION DIMENSIONS OF MODEL MD PUMP :
Other Advantage pump:
AFP submersible sewage pump
AY series centrifugal oil pump
BPL series single-stage singel-suction vertical centrifugal pump
BPW series single-stage single-suction horizontal centrifugal pump
BPX series low-carbon composite centrifugal pump
D series multi-stage sectional centrifugal pump
GDL series multi-stage pipline centrifugal pump
LP(T) series vertical drainage pump
QZ,QH series axial-flow pump
Z(H)LB series vertical axial-(mixed)-flow pump
BPO series single-stage double-suction open centrifugal pump
WFY non-negative pressure water-supply equipment
Company introduction:
Shanghai Bangpu Industrial Group Co., Ltd. is a group enterprise specializing in the research and production of various fluid transfer equipments. Our main products include pumps,valves,motors,electric series and water supply system package. Waste water treatment, environmental protection equipments, accessories are also within our main business area. In 2008, Bangpu Group acquired Shanghai Electrical Machinery Factory Co., Ltd. and embarked on a higher speed growing path.
Manufacture view:
