BPO series single-stage agriculture water pump
<1>FEATURES:
BPO series single-stage double-suction open type centrifugal pump self-researched by the Company after absorbed advanced technology of similar products and combined application requirement of various customers. The series pump adopts excellent hydraulic model, wider type spectrum and better structure. Pump casing is produced by special machine tool, which ensures concentricity among shaft bearing, shaft and pump case, and provides better reliability and maintainability. Apply to municipal water supply and drainage, water circulation of air conditioner, agricultural hydraulic engineering, such as irrigation, drain flooded fields etc., industrial water supply system, firefighting system, water supply and drainage of
heating system, transportation of clean water
<2> OPERATING CONDITION
a)Rotate speed: 2950r/min, 1480 r/min, 980 r/min, 730 r/min
b)Flow range: 64.4~9810m3/h
c)Delivery lift: =200m
d)Medium temperature: =80 ,
e)product adopting special materials: -20 ~120
f)Ambient temperature: Lower than 40
g)Operating pressure up to achieves 2.5MPa
<3> MATERIAL
a)Pump casing: Cast iron or magnesium iron
b)Pump cover: Cast iron or magnesium iron
c)Impeller: Cast iron, magnesium iron or tin bronze
d)Sealing ring: Cast iron or tin bronze
e)Pump shaft: 45# steel plated with chrome
f)Dynamic and static mechanical sea: Hard carbide, graphite
g)Configuring other material according to requirement is allowable

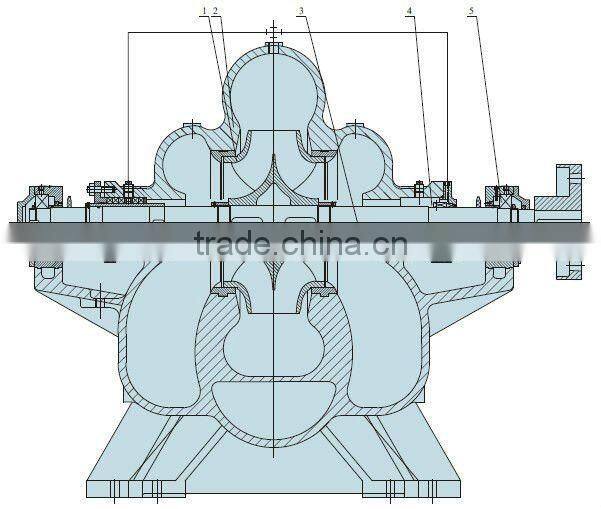

Structure of BPO pump:

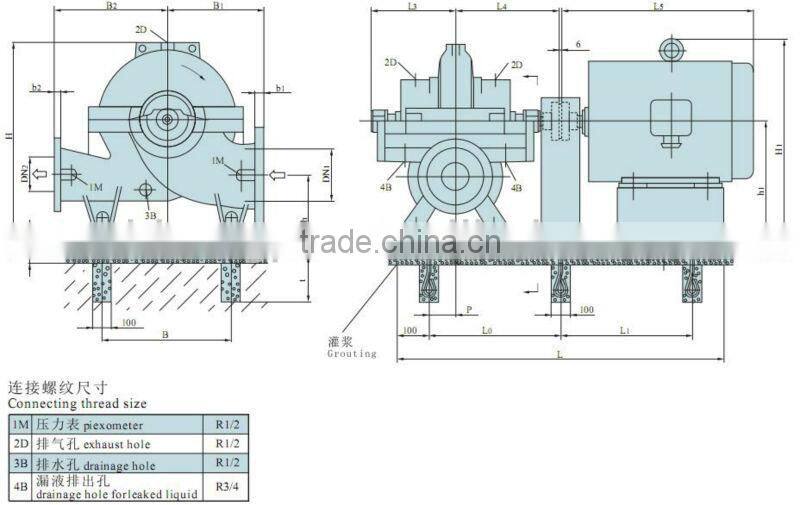

Installation Drawing:
Other advantaged seriers pump:
AFP submersible sewage pump
AY series centrifugal oil pump
BPW series single-stage single-suction horizontal centrifugal pump
BPX series low-carbon composite centrifugal pump
D series multi-stage sectional centrifugal pump
GDL series multi-stage pipline centrifugal pump
LP(T) series vertical drainage pump
QZ,QH series axial-flow pump
Z(H)LB series vertical axial-(mixed)-flow pump
WFY non-negative pressure water-supply equipment
Company introduction:
Shanghai Bangpu Industrial Group Co., Ltd. is a group enterprise specializing in the research and production of various fluid transfer equipments. Our main products include pumps,valves,motors,electric series and water supply system package. Waste water treatment, environmental protection equipments, accessories are also within our main business area. In 2008, Bangpu Group acquired Shanghai Electrical Machinery Factory Co., Ltd. and embarked on a higher speed growing path.
Manufacture view:
Project Case:
