Home > Manufacturing & Processing Machinery > Mixing Equipment > Drum Mixer > Mobile Type Mini Asphalt Mixing Plant With 25t/h Production Capacity/Water Dust Filter

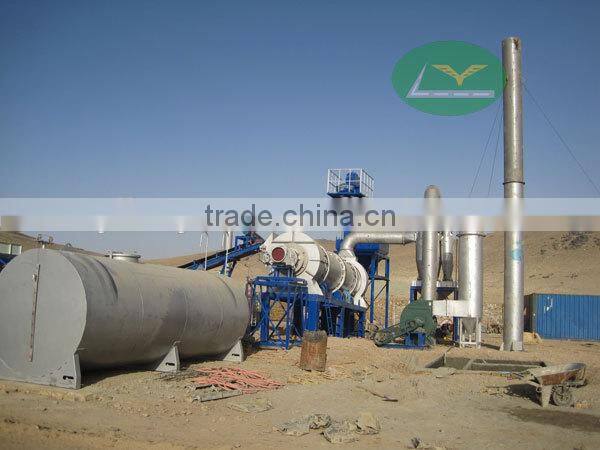

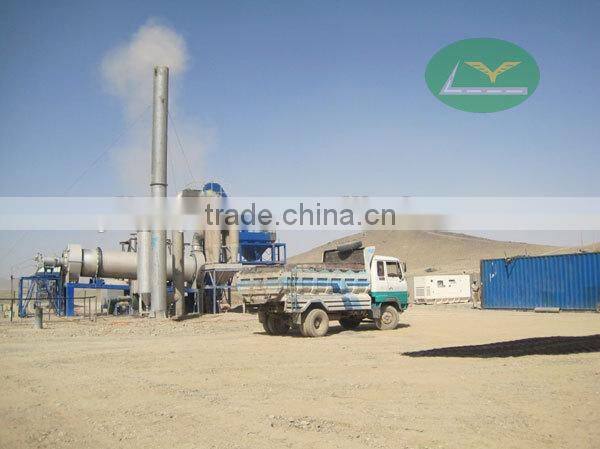

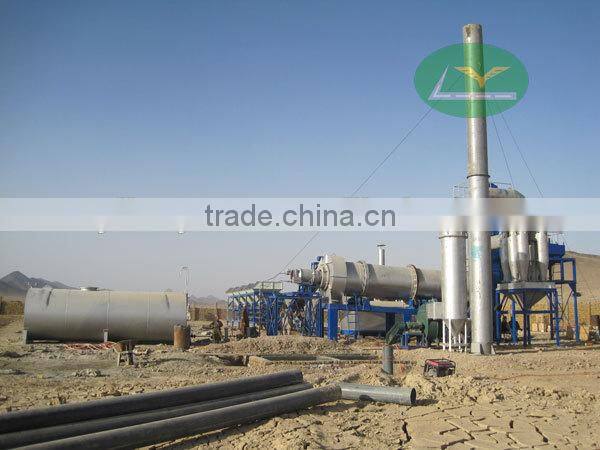

Mobile Type Mini Asphalt Mixing Plant With 25t/h Production Capacity/Water Dust Filter
US$ 50,000 - 125,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Henan, China
Brand Name:
Liaoyuan
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Shanghai Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Asphalt Drum Mix Plant for Mini Asphalt Plant, Mobile Asphalt Mixing PlantUS$ 70,000 - 165,000MOQ: 1 Set -
SLB Seires Mobile Asphalt Plant For Hot SaleUS$ 61,500 - 108,000MOQ: 1 Set
-
DHB Asphalt Drum Mixing PlantUS$ 59,800 - 125,000MOQ: 1 Set
-
MDHB100 Asphalt Drum Mix Plant 20t/h-100t/h Best PriceUS$ 75,000 - 165,000MOQ: 1 Set
-
MDHB40 Portable Asphalt Drum Mix Plant Best Price With CE,Gost-R, ISO CertificateUS$ 75,000 - 165,000MOQ: 1 Set
Condition
New
Place of Origin
Henan, China
Brand Name
Liaoyuan
Model Number
DHB
Voltage
220V/380V-50Hz (adjustable)
Certification
CE ISO GOST
Warranty
12 months after erecting the whole plant.
After-sales Service Provided
Engineers available to service machinery overseas
Asphalt Drum Mixing Plant Technical Parameters
DHB asphalt drum mixing plant mainly including: cold aggregate supply system, burner, drying and mixing drum, water dust catcher, bitumen supply system, electrical control system.
Drum mixing type asphalt plant, to continuously produce asphalt mixture.
Burning System: I. Oil burner; II. Gas burner; III. Coal burner; IV. Oil & Gas dual purpose burner.
| Model | Capacity (t/h) | Measurement Accuracy | Total Power (kW) | Fuel Consumption (kg/t) | ||
| Aggregate | Bitumen | Coal | Oil | |||
| DHB-20 | 20 | ±1.5% | ±1% | 40 | 10 | 5.5-7 |
| DHB-40 | 40 | ±1.5% | ±1% | 75 | 10-13 | 5.5-7 |
| DHB-60 | 60 | ±1.5% | ±1% | 128 | 10-13 | 5.5-7 |
| DHB-80 | 80 | ±1.5% | ±1% | 165 | 10-13 | 5.5-7 |
| DHB-100 | 100 | ±1.5% | ±1% | 200 | 10-13 | 5.5-7 |
Control System |
| The heat overload protect breaker is safe and reliable, the whole set control system is integrated on the operation platform, which is convenient and shortcut. The equipment has two operation modes: inter-lock operation and single-machine operation, which is convenient for equipment commissioning and production. |
Cold Aggregate Supply System |
| It can make aggregate material of four different sizes mixed well according to the construction requirement, for the oversized grain, it will be separated by the middle screen, and the qualified material will be conveyed into drying drum by tilted belt conveyer. |
Mixing Mainframe |
| Integrated drying, heating and mixing in the whole part: the aggregate material will form an inadequate material flow in the drying section and go ahead promptly for preheating, and then it will form a sufficient material flow and heat quickly in the heating section. In the mixing section, the asphalt and will be sprayed into the aggregate material, which makes the aggregate material and asphalt mixing equably. |
Coal Burning System |
| The high efficient coal crusher integrated with speed adjustable coal powder supply, it provides the coal powder with size of less than 50 micron far the burner. The burner adopts oil supply device and wind supply device, and can provide sufficient heat energy for the mixing plant. |
