Optical Touch Screen
Description

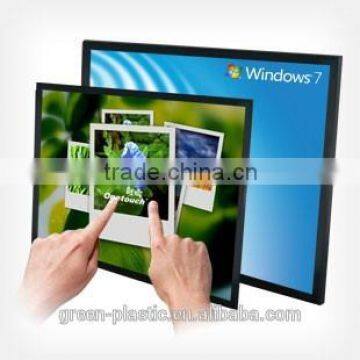

1. Optical touch screen takes the optical and imaging touch technology .it’s place by the cameras on the adjacent corners of the touch screen pass the date of the surface objects continuously, and it change the touch position continuously through the movement sensor.
2.The technology combines with the WIN7 OS successfully, which realizes the two points touch more accurately , more fast and more fluently. It guides and promotes the touch application to a new position.
Specification
Technical Specification | |
Touch Technology |
Optical Imaging |
Performance | |
Resolution(Interpolation) |
32768*32768 |
Ratio |
16:9 |
Linearity Error |
1.5mm |
Response Speed |
<10ms |
Mechanical | |
Input Method |
Finger, gloved hand, or opaque object |
Touch Times |
Unlimited |
Touch Activation Force |
No minimum touch activation force is required with IR touch technology |
Minimum Touch Object |
5mm |
Environmental suitability | |
Temperature |
Operating: -20°C ~ 70°C |
Storage: -40°C ~ 85°C | |
Relative Humidity |
Operating: 90%(non-condensed at max 40°C) |
Storage: 90%(non-condensed at max 40°C) | |
Altitude |
Up to 3,000m |
Life Time |
At least 7 years |
Electrical | |
Appearance Color |
Standard: Black |
Scan frequency |
125Hz |
Connection interface type |
USB 2.0 |
Output Format |
Coordinate output |
Touch Accuracy |
2MM(Over 90%Area) |
Operation Voltage |
Typical +DC 5V, +4.75V to +5.25V |
Power Supply |
USB, power ripple max.200mV rms |
Power |
<2W, operating current<200mA |
Agency Approvals |
CE, FCC Class B |
Operation current |
<180mA |
USB Connector Cable |
1500mm |
Glass |
Thickness 4mm |
Size (inch) |
Proportion |
Model |
Outline Dimension |
Active Area |
||||
|
|
|
Height±1.0(mm) |
Width±1.0(mm) |
Thickness±0.5(mm) |
Height±1.0(mm) |
Width±1.0(mm) |
Diagonal |
32 |
16:9 |
GT-OT-32 |
476.8 |
777.3 |
15.65 |
392.3 |
697.7 |
812.8 |
42 |
16:9 |
GT-OT-42 |
698 |
1005.6 |
15.65 |
567.9 |
934.7 |
1066.8 |
46 |
16:9 |
GT-OT-46 |
662.6 |
1098 |
15.65 |
577.6 |
1023 |
1187 |
47 |
16:9 |
GT-OT-47 |
674.1 |
1118.4 |
15.65 |
588.8 |
1043.6 |
1200.3 |
50 |
16:9 |
GT-OT-50 |
681 |
1155 |
15.65 |
622.1 |
1106.5 |
1283 |
52 |
16:9 |
GT-OT-52 |
729 |
1226 |
15.65 |
648.0 |
1152 |
1343 |
55 |
16:9 |
GT-OT-55 |
773.6 |
1289 |
15.65 |
685.4 |
1215 |
1397 |
60 |
16:9 |
GT-OT-60 |
837.1 |
1396.1 |
15.65 |
747 |
1321.1 |
1524.4 |
65 |
16:9 |
GT-OT-65 |
878 |
1508.2 |
15.65 |
807.5 |
1432.5 |
1654 |
70 |
16:9 |
GT-OT-70 |
976 |
1630 |
15.65 |
877.56 |
1555.4 |
1778 |
82 |
16:9 |
GT-OT-82 |
1102 |
1891 |
15.65 |
1023 |
1812 |
2081 |
84 |
16:9 |
GT-OT-84 |
1380 |
1806 |
15.65 |
1280 |
1706 |
2133.6 |
103 |
16:9 |
GT-OT-103 |
1683 |
2168 |
15.65 |
1569.7 |
2092.9 |
2616.2 |
Features
- Represents delicate scribble of your finger with high touching precision.
- CCD camera with short response speed, no scribble slipping, and no lagging.
- No touching tools, no special touching pen is required, only your finger.
- Prefect multi-point touch with humanized operation.
- Design with narrow frame, process in modular, easy for mounting and dismounting and maintaining.
- Excellent extension, offer customized touch screen with special size.
- Internal and external linked types.
- Without driver, supporting plug and play.
- Compatible with many operating systems, intelligent switching including winxp ,win7,liunx, mac,android,etc
Application
LCD monitor and car monitor , TV, Computer screen
Touch panel, POS, ATM, KISOKS
Advertising Media, Meeting and Education and training system
