Specifications
22''openframe touch monitorAll in one touch monitor
HD resolution high contrast ratio
fast response wide angle
Lowprice

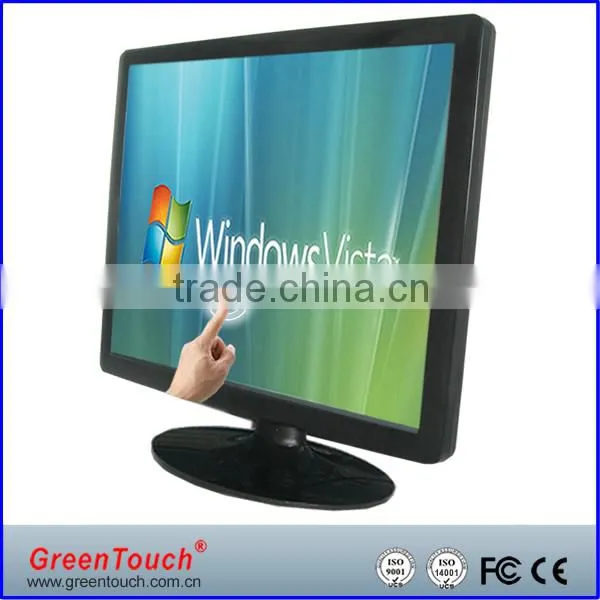

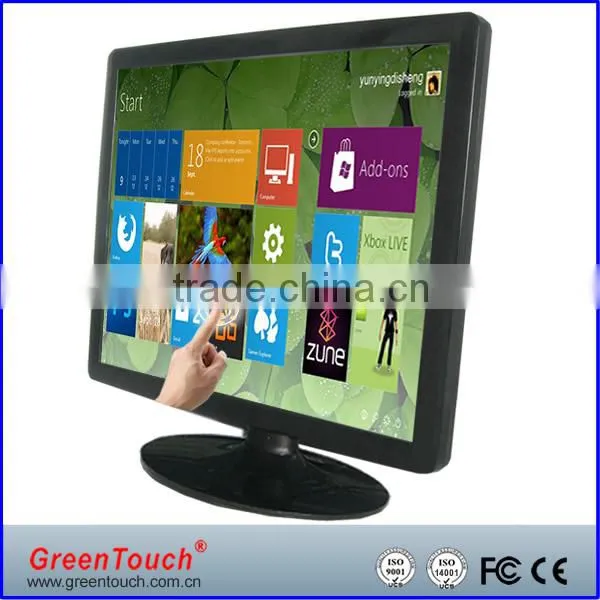

22 inch Open Frame Touch Monitor
Product specifications and parameters:
GreenTouch Open Frame Monitor adopt new A + LCD screen produced by international companies, designed withall-plasticergonomic shell, and new energy-saving drive board . Special for desktop anddesktop public service inquiry system,POS systems, hotel reception, self-service, industrial manufacturing, information systems and other interactive touch applicationsenvironmental design .
| Model Number | GT-TMO220A |
| Display type | TFT LED panel |
| Screen Ratio | 16:10 |
| Resolution | 1680X1050 |
| Active area | 475X292(mm) |
| Brightness | 300cd/m2 |
| Contrast Ratio | 1000:1 |
| Support color | 16.7M |
| Response time | 8ms |
| Pixel Pitch | 0.297x0.297mm |
| Viewing Angle | Horizontal(L/R):85°/85° Vertical(Up/Down):80°/80° |
| Video input | DVI,VGA |
| Scan Frequency | Horizontal:30~80KHz ,Vertical: 56.3~75Hz |
| Power Input | Support AC 100 ~ 240V,50 ~ 60Hz,DC12V-3A |
| Environment | Operating temperature:0 to 50°C Storage temperature:-20 to 60°C |
| Operating humidity:20% to 80% Storage humidity:10% to 90% | |
| Mean Time Between Failure (MTBF) | 30,000 hours |
| Backlight working life(Typ.) | 50,000 hours |

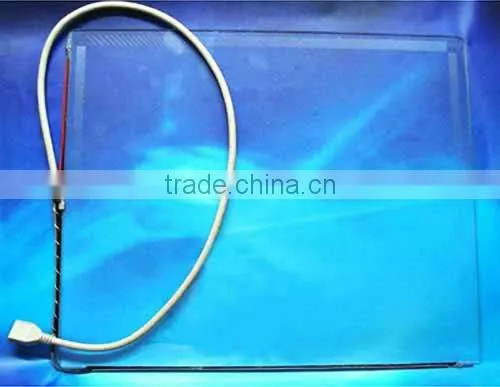

| Touch screen Type | 4/5 wire resistive,SAW,IR Optical touch screen (can be selected) |
| Touch life | Over 5,00 million times |
| Touch object | Finger or touch pen |
| Touch screen interface | USB or RS232 interface |
| Power consumption | Max 30W |
| Certificates | CE, FCC |
| Button | POWER,MENU,AUTO,UP,DOWN |
| Warranty | 1 year |
Shipping and payments
Note: DHL/UPS/Fedex Express usually take about 3 ~7working days to the destination, and it is about 5~10 work days by EMS or TNT, Hongkong post air mail and Hong post Air Parcel takes 7 to 30 days to ship to worldwide.
Certificates
Factory shows:
(If I'm off line, would you send a massage to me or email please ? i will reply within 12hours .)
