Specifications
1.IR Multi Touch Frame Screen,IR Touch Screen up to 350"
2.Up to 350"
3.Up to 16 points
4.Make your screen interactive
Specifications
IR(Infrared) Multi Touch Frame(Screen):
Dust and water proofing, anti-vandal;
Stable and no drift;
No light spots;
High durability
IR/Infrared multi touch screen frame/bezel/panel (Supply multi touch driver for WINDOWS, MAC, ANDROID 4.0 or better, Linux 4.0 OS or better and 2 kinds multi touch software for our multi touch frame, they are free!!!)
Touch screen overlay can transform your LCD/LED Screen or projection surface into an interactive touch screen. The screen overlay is integrated with a printed circuit board which contains a line of IR-LEDs and photo transistors hidden behind the bezel of the overlay. The photo transistors can detect the IR light beams interrupted by touch and transmits a signal identifying the relevant x and y axes coordinates to the PC. By our product, human computer interface can be realized just beyond your imagination.
Infrared Dual/Multi Touch Screen Size:15' to 350"
Infrared Touch Panel using solid structure is to fit a variety of large-size and large size displays designed to touch the new program, used to large-size displays such as LCD, PDP, rear projection, etc. into a large interactive display device.
Infrared Touch Panel is not only with other products the same characteristics, but also with uniform resolution, installation of small size, resistant to light interference, the advantages of long life. Anti-scratch, users touch the surface of Touch Panel operation, without damaging the display surface of the screen resolution will not be affected, there is high demand for the industry provides an ideal solution.
Infrared Touch Panel with large-size display may be composed of the best interactive system, access network if the computer can be composed of real-time, interactive and efficient conferencing systems.
Infrared touch screen technology parameters
Touch-Points |
True MultiTouch - up to 16 simultaneous inputs |
Touch Technology |
LED Cell Imaging |
TUIO |
Full TUIO Support |
Touch Force |
No pressure required |
Touch Method |
Naked fingers, gloved fingers or any other stylus with a minimum of 3mm size, shape recognition (fist, palm) |
Photosensitivity |
Automatically adjusts to light conditions |
Light transmission |
more than 95% |
Touch duration |
unlimited |
Accuracy |
2.7 mm |
Report Resolution |
32768x32768 |
Refresh Rate |
up to 350 fps |
Response time |
5ms – 10ms |
Interface |
USB 2.0 |
Power |
DC Power Adapter |
Operating temperature |
0 – 50° C |
Storage temperatur/th> |
-25 – 85° C |
Operating System |
Windows XP / Vista, Windows 7, Windows 8,10, Mac OS X, Linux |
connection way |
USB cable with plug and play ,free drive |
Native Touch |
Windows 7 / Windows 8 Native Touch |
Frame color |
Black |
Depth |
6.9 mm |
Thickness |
18 mm |
Assembly Method |
Smart Easy Assembly |
the thickness of glass |
3 to 6mm tempered glass (ultra-smooth touch glass) |
Warranty |
3-5 year parts and labor |

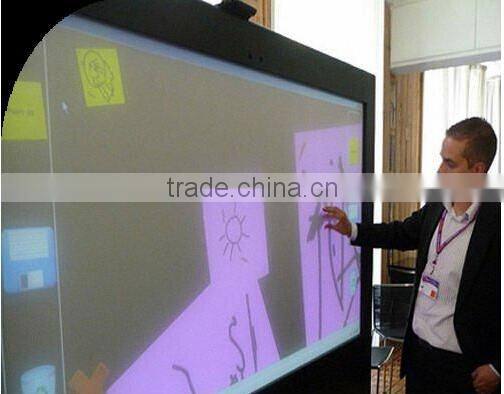

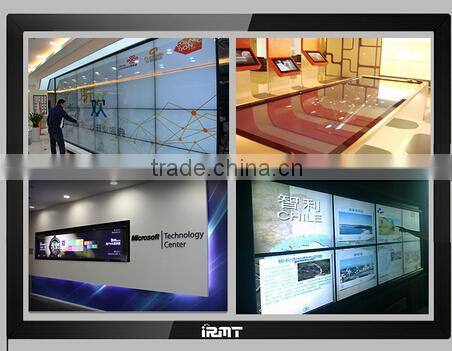

Typical Applications:
1.Video conference system
2.Command center
3.Mall kiosks
4.Public venue directory
5.Interactive advertising
6.Hotel entertainment center
7.Weather forecast
Main Features:
True multi-touch points support
Extraordinary ambient light immunity
Low Power Consumption
High quality with competitive price
Easy to install
Export carton package for safy and disassemble for express ,airfreight or seafreight .
Shipping way:
Sample will be sent by DHL ,UPS,TNT,Fedex..express and masses of quantites will be sent by seafreight.

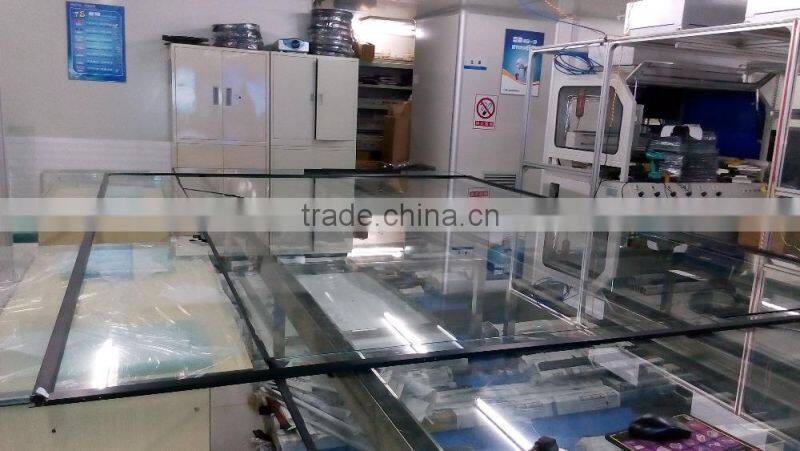

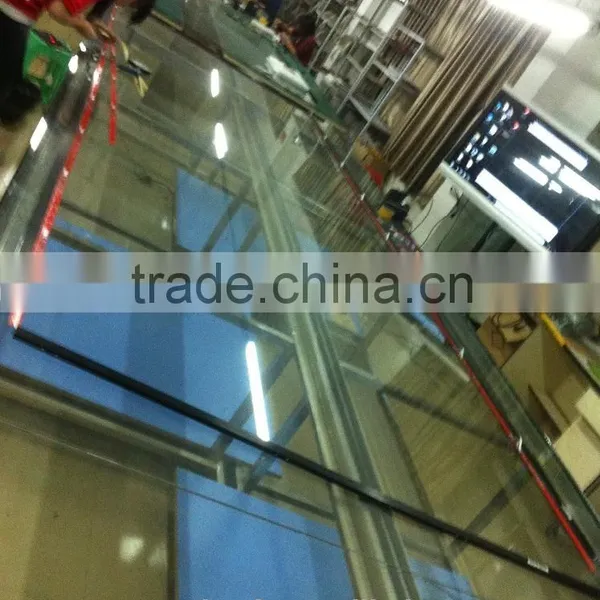

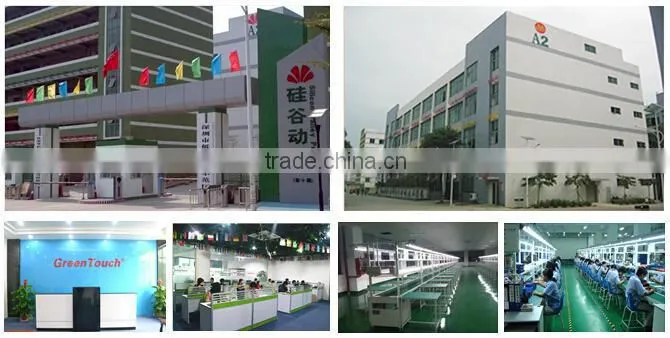

Factory Shown:
