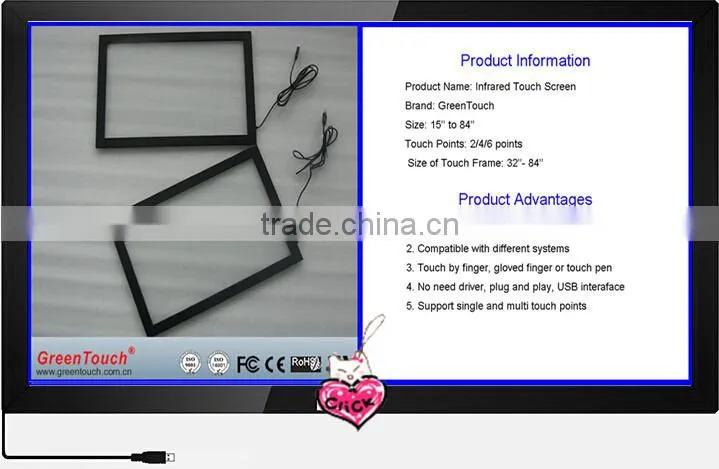

Help Center18.5 Inch Infrared Touch Screen Frame, USB Multi-touch Screen Overlay Kit
Related Products
-
(HOT Sale!) 17''-350'' IR Touch Screen ,Multi-touch Infrared Touch Screen With Best PriceUS$ 1 - 2,000MOQ: 1 Piece -
19" IR Touch Screen Frame for Kiosk, JukeBox HD Mini With Multi-touchUS$ 1 - 2,000MOQ: 1 Piece
-
42 Inch LCD USB IR Multi Points Touch Screen,infrared Touch FrameUS$ 1 - 2,000MOQ: 1 Piece
-
Hot Selling!18.5" USB IR Touch Screen,infrared Touch ScreenUS$ 1 - 2,000MOQ: 1 Piece
-
Cheap and Top Quality Infrared 32 IR Touch Screen,infrared Touch Screen Kit for Lcd ScreenUS$ 1 - 2,000MOQ: 1 Piece

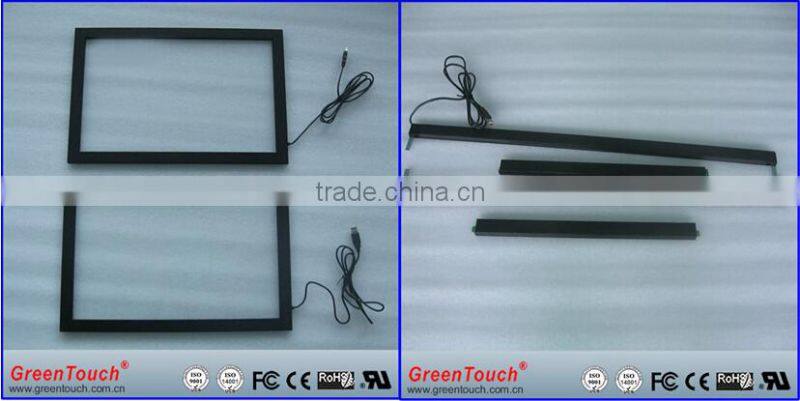

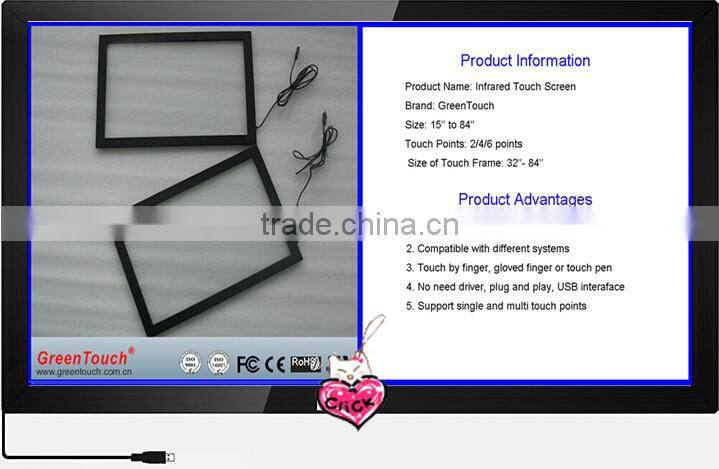

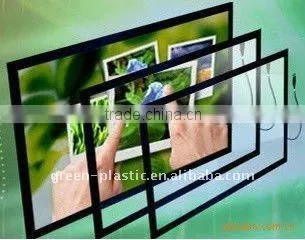

GreenTouch Infrared Touch Screen 18.5''
Skype: touchscreensales
Description of Infrared (IR) Touch Screen:
Infrared touch screen instantly turns LCD/PLASMA/front/rear projection monitor into interactive display. Unlike most other technologies, the Infrared based design offers superb image clarity. The original image quality is preserved because there is no other layer in front of the display. After a simple installation, the screen can be operated with finger, gloved hand or pen.
Features of Infrared Touch Screen
1. Double-point write with peace,precise multi-point touching.
2. USB interface, Intelligent automatic calibration, drive-free and maintenance-free.
3. Longevity of service ,maintenance free.
4. Aluminum alloy shell with strong stability.
5. Tempered glass with high light transmittance and true color rendition.
6. Without driver ,supporting plug and play.
7. Adapt to internal and external linked environment.
8. No touching tools,no special touching pen is required ,only your finger.
9. Fast response(less than 16 ms), no blind area, breakpoints, jump points, pause and other undesirable phenomena.
10. Compatible with multiple systems, support TUIO enables multi-touch in windows XP

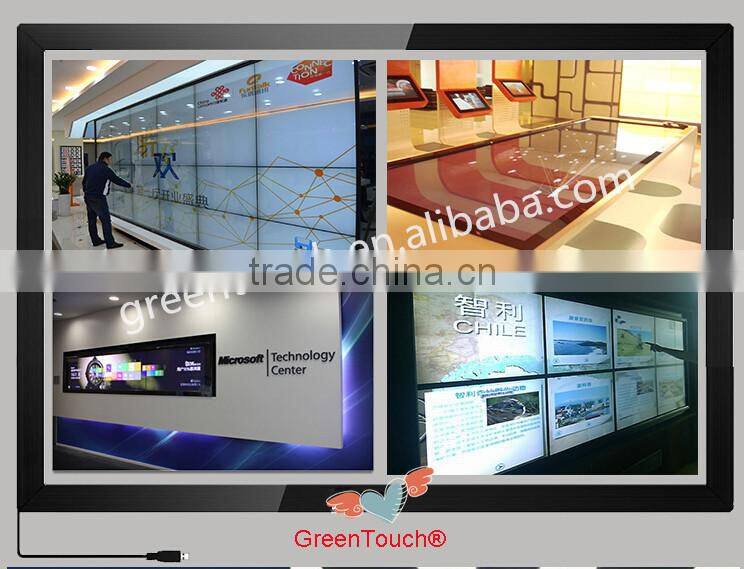

Application of Infrared Touch Screen
• TV
• PC
• Gaming device
• Exhibition
• Education training
• Pubic query machine
• Self-service machine
• Map directory
• Any interactive machine
• And more
Specification of Infrared Touch Screen
Physical characteristic |
Standard color |
black |
Material |
tempered glass |
|
Transparency |
≥92% |
|
USB connector cable |
1500mm |
|
Minimum touch object |
≥5mm |
|
Input method |
Finger,gloved hand,or opaque object |
|
Resolution |
4096x4096 |
|
Electrical characteristic |
Scan frequency |
60Hz |
Interface type |
USB2.0 or RS232 |
|
Output format |
Coordinate output |
|
Response time |
<15ms |
|
Touch accuracy |
2mm |
|
Working voltage |
DC +5V+/-5% |
|
Power supply |
USB |
|
Operation current |
<180mA |
|
Environmental suitability |
Working temperature |
-20℃~65℃ |
Storage temperature |
-40℃~85℃ |
|
Working humidity |
0~85% RH,non-condensing |
|
Storage humidity |
0~95% RH,non-condensing |
|
Light immunity |
Anti-glare |
|
Reliability |
Touch times |
unlimited |
Flammability |
UL94V-0 |
|
Certification |
CE,FCC,ROHS |
|
Software characteristic |
Windows 2000/Windows XP/Win 7/ Win 8/Windows NT/ Linux(single touch)/ Mac(single touch) |
|

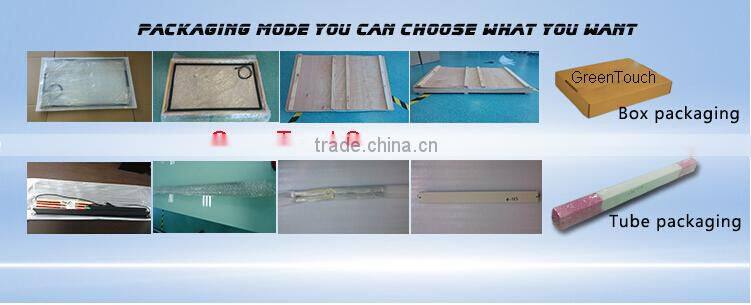

Packaging:

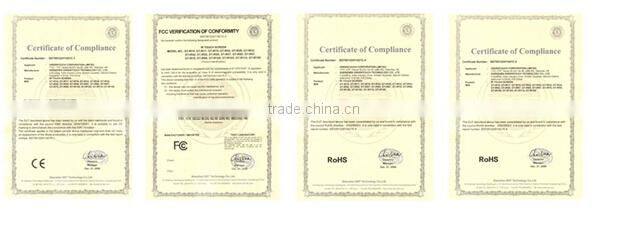

Certificates of Infrared Touch Screen:
Delivery and Payment way :

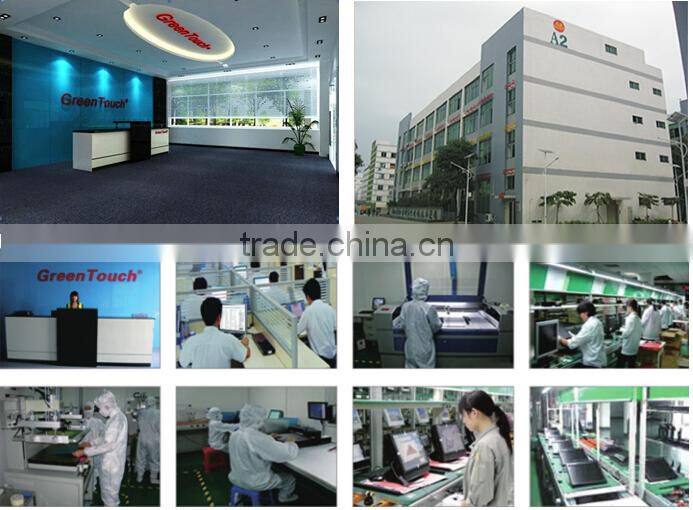

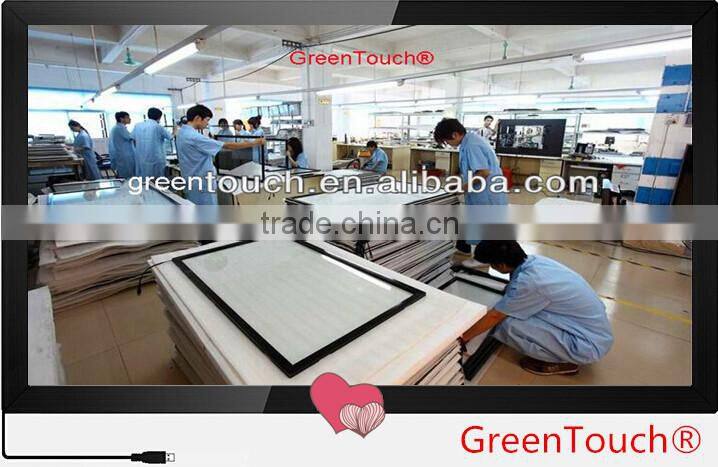

Factory shown:
Thanks for your visit,welcome contact us in anytime.Thank you.
