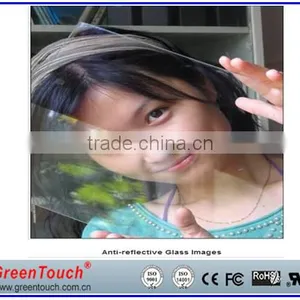

Help CenterAnti Reflective Glass 27 IR Touch Screen Anti-Reflective Glass Infrared Touch Screen With 2points 4points 6points for Outdoor
Related Products
-
IRGT F Series 42inch Infrared Multi Touch Screen IR Screen Touch Frame OverlayUS$ 1 - 164.1MOQ: 1 Piece -
65inch IR Touch Frame,infrared Screen Touch Screen Advertising Screen LcdUS$ 1 - 335.7MOQ: 1 Piece
-
42" USB Infrared Touch Screen,ir Touch Screen for Advertising,entertainment,public Usb InterfaceUS$ 1 - 200MOQ: 1 Piece
-
Hot Promotion 58inch Infrared Touch Screen Multitouch PointsUS$ 1 - 256MOQ: 1 Piece
-
Hot Promotion 50inch IR Touch Screen Panel Infrared Touch Panel Multi Touch PanelUS$ 1 - 240MOQ: 1 Piece
Trade Info
1.Trade terms >>FOB,CIF,EXW
2.Payment terms >>Western Union,PayPal,HSBC.
3.Delivery time >>samples:3~5workdays before payment ,7~15workdays for mass production
4.Packing >>Carton,wooden case ,cylinder.
5.Shipping >>By sea,by air and by express
Trade Procedure
Inquiry >>Reply >>Contract >>datahseet for approval >>make a preform invoice>Receive payment >>Produce >>Testing&packing >>Delivery >>Receiving
After-Sale Service
1.Supply OEM&ODM Service,independent QC department,many times testing and checking well in site
2.100% QC pass checking and testing before shipping
3.12months of warranty
4.CE,RoHs
Kinds of products
GreenTouch is specialized in producing resisitve touch screen,capacitive touch screen. Surface Acoustic Wave(SAW) touch screen, Multi-touch Infrared touch screen/IR Touch Panel frame, LCD Touch Monitor, Kiosk, Interactive touch foil, all in one ...etc.unstandard size of touch panel we can customized for you.

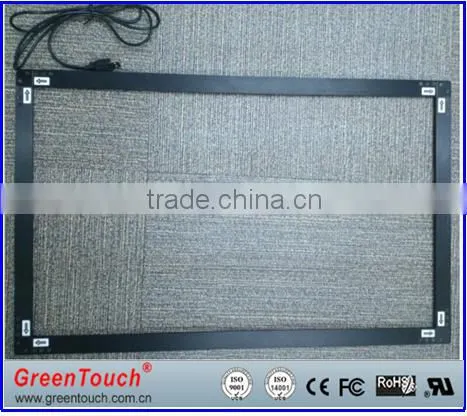

Technology for Infrard/IR touch screen:
1

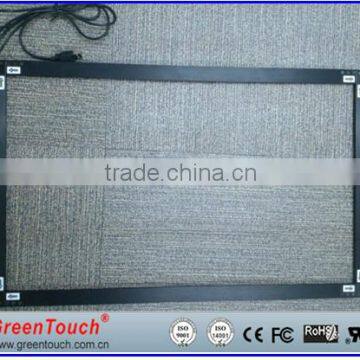

Infrared touch screen is to use a dense matrix of infra-red x, y directions to detect and locate the user's touch. Infrared touch screen installed in front of the monitor box outside a circuit board, circuit board arranged on four sides of the screen infrared led and an infrared receiver and corresponding anyway cross the infrared matrix.
When users touch the screen, fingers will be blocked anyway after the location for both infrared and therefore can judge the position of the touch points on the screen .it can detect essentially any input including a finger, gloved finger, stylus or pen
.

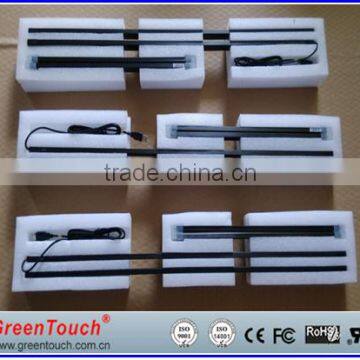

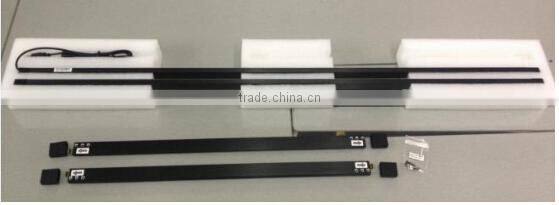

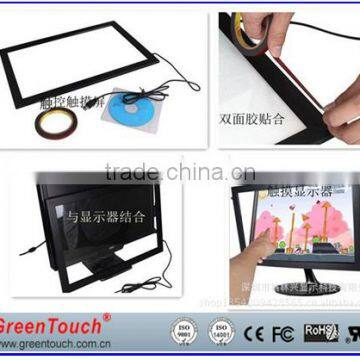

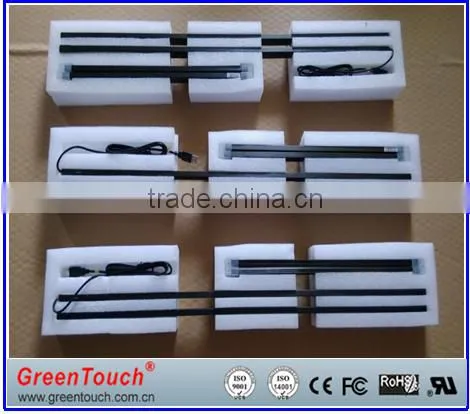

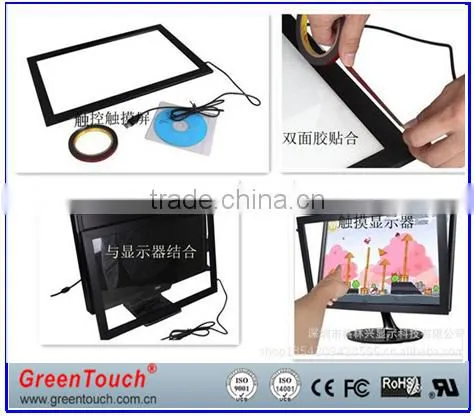

F-series Assemble User Manual
Step1 :

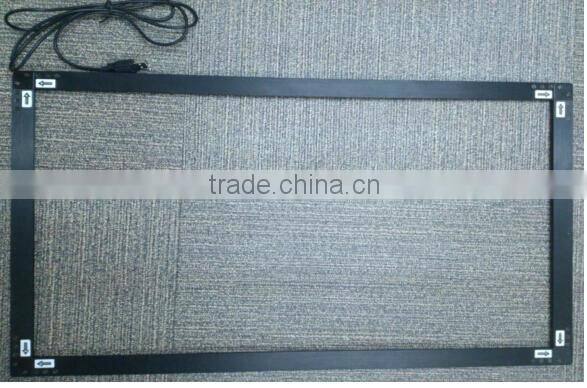

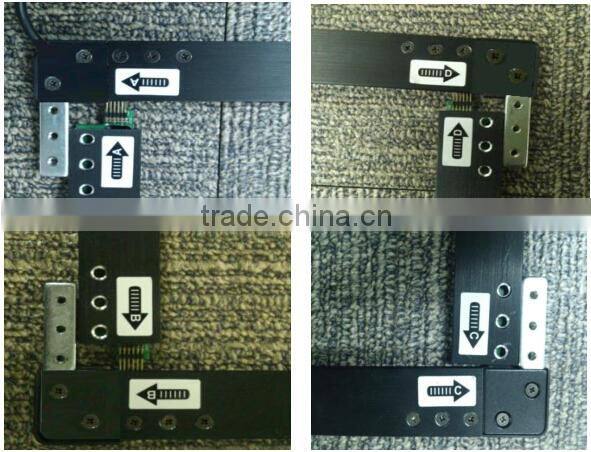

Match the NO. on the touch frame (No. A match No.A, No.B match No.B, No.C match No.C ,No.D
match No.D)
Step2:

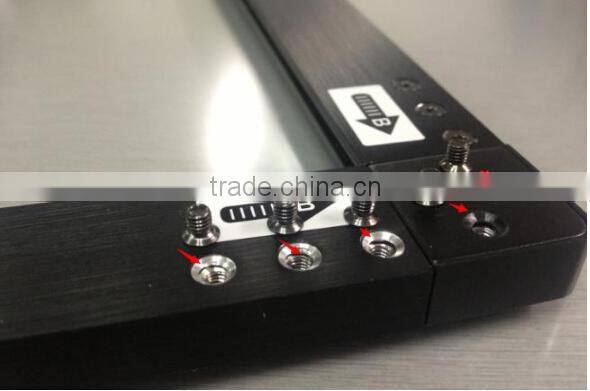

Open the cover of each corner (as below)
Step3:

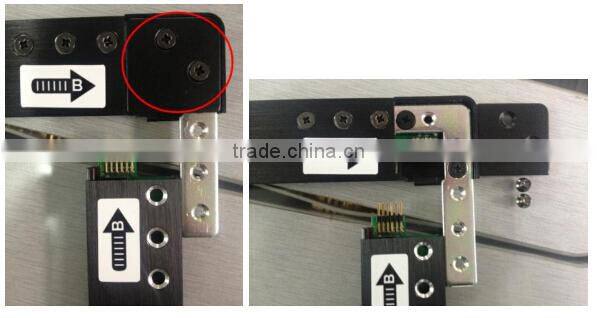

Connect the spare part via the 10pin connector and fix the cover of corner
Step 4 :
According to the same principle, repeat the corner B,C,D and finish the assembling as below.
Attention:
1. Must open the cover of the corner before connecting the frame (as below) , in case the 10 pin connector broke.
