5"-55"Capacitive touch screen
Capacitive touch screen Description:
Green Touch now developed a single point and multi-point capacitive touch screen, mainly in G+G and G+P structure based, covering the 5 inch to 32 inches (supports customizable), supports 10touchs, slide, flip, etc. function. 10:00 real touch points to support handwriting, pen function, the focus for educational, medical, computer machine, automotive and other industrial applications.
Capacitive touch screen Category:
Size |
Thickness(mm) |
Application IC |
Structure |
Interface |
5"-10.1" |
1.25 |
SLV,FT |
G+P/G+P/G+F/G+F+F |
I2C/USB |
10.4"-32" |
2.0-3.3 |
EETI/EM |
G+G/G+P |
USB/R232 |
Capacitive touch screen System Type:
Size |
Windows XP |
Win7 |
Win8 |
Android |
Linux |
MAC |
5"-10.1" |
Support |
Support |
Support |
Support |
Support |
Support |
10.1"-55" |
Support debug |
Driver free |
driver free |
Support debug |
Support debug |
Support debug |
Capacitive touch screen applications:
1. Consulting appliances
2. Communication Equipment.
3. Household appliance
4. Entertainment equipment
5. Medical Equipment
6. Equipment
Capacitive touch screen advantages:
1. Antistatic ability, aesthetic design
2.Touch intensity small, high transmittance
3. Support for I2C, USB, IPS and R232 Interface
4. High definition, waterproof, fog
5. Support for single and multi-point touch
Capacitive touch screen specifications:
Capacitive touch screen size |
5"-55" |
Capacitive touch screen Structure |
G+G/G+P |
Drive mode |
COB/COF |
Proportion |
16:9/4:3 |
Capacitive touch screen Thickness |
1.25-3.3mm |
Surface hardness |
6H |
Transmittance |
>90% |
Working temperature |
-30 ℃ ~ +75 ℃ |
Storage temperature |
-40 ℃ ~ +85 ℃ |
Humidity |
90% at 60℃ |
Linearity |
1PT:+/-1mm,10PT:+/-2.5mm |
Touch life |
> 100,000,000 times |
Maximum resolution |
4096×4096 |
Maximum support points |
Max,10 points |
Controller Type |
PCBA control board |
Connection |
I2C/USB/RS232 |
Host Interface |
USB, 4 wire, 2.0 Full speed |
Operating Voltage |
USB 5VDC |
Power consumption |
Active Mode:<30mA,Idle Mode:5mA |
Oscillation frequency |
12MHz |
Reaction time |
<10ms |
Read speed |
100 MHz |
Antistatic air discharge |
8KV |
Antistatic. Contact Discharge |
4KV |
Adapter ripple |
Vpp<50mv |

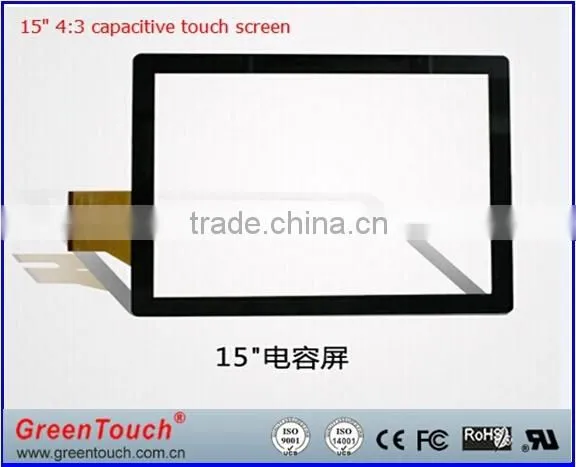

Capacitive touch screen picturers:
