High quality factory price touch screen,42" capacitive touch overlay
- 5000 Piece / Pieces per Month
- Shenzhen
- Credit Card
- 12.1" SVGA Open Frame Touch Screen Industrial LCD Display (LCD Module)
- 7" Open Type Module (OTM) Touch Screen Industrial LCD Display
- 7" Open Type Module (OTM) Touch Screen Embedded LCD Monitor
- 17" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 19" Wide Open Frame Touch Screen LCD Monitor (LCD Module)
- 12.1" XGA Open Frame Touch Screen Embedded LCD Monitor (LCD Module)
Product Details
Products Status: | Stock | Screen Size: | Other, 42'' | Type: | Capacitive |
Interface Type: | USB | Resolution: | Other, 4096*4096 | Brand Name: | GreenTouch |
Model Number: | GT-PCAP-42 | Place of Origin: | Guangdong, China |
Product Description
High quality factory price touch screen,42" capacitive touch overlay
Skype:touchscreensales
Capacitive Touch screen CTP (Capacity Touch Panel) is to use the working current of induction of human body.The operational principle of the projected capacitive touch panel: There are two layers of the ITO layer under the surface of glass. This ITO layer respectively forms the electric field of X axis and Y axis, which can keep balance by crossing the surface of the class. Once the fingers approach the glass surface, the fingers and the electrode X axis or Y axis will form a new electric field, which can make the local capacitance change. Then the controller will determine the location based on capacitance changes.
Capacitive touch screen is very different with traditional resistive touch screen. When the resistive touch screen works, you can only judge a touch point. And if there are two or more touch points, you can not make the right judgments. So the resistive touch screen applies only to judge a few simple actions such as click, drag and drop. The capacitive multi-touch screen can decompose the user's touch into colleting multi-point signal and determining the significance of the signals, and complete the judgments of complex action. Moreover, you can feel it when you lightly touch the projected capacitive touch sensor panel. Better durability, more than 90% light transmission rate, high transparency than the traditional resistive touch screen are the advantages of our products.
Applied range:
Along with the capacitive technology is grandually maturity, it is used be in everywhere: industries, applications, products and services, such as smart phone, car GPS, tablet PC, Medical device, car DVD, PDA, MP5, MP4, learning machine, dictionary, PSP, consumer electronics, moderate to harsh Machine Control, Process Control, System Control/Office Automation and Car PC, etc.
Advantage:
-Capacitive touch technology.
-Highest resolution, sensitive and fast response
-Easy to install with LCD monitor
-Dustproof and Waterproof maintenance free.
-Touch screens can be built in specific dimensions requested by clients in custom orders
Application:
-Point-of-information kiosks
-Vending and ticket sales
-Electronic catalogs
-Gaming, lottery, and amusement
-Public pay phones
-Multimedia marketing
-Banking/financial transactions
-Industrial control rooms
-Computer-based training

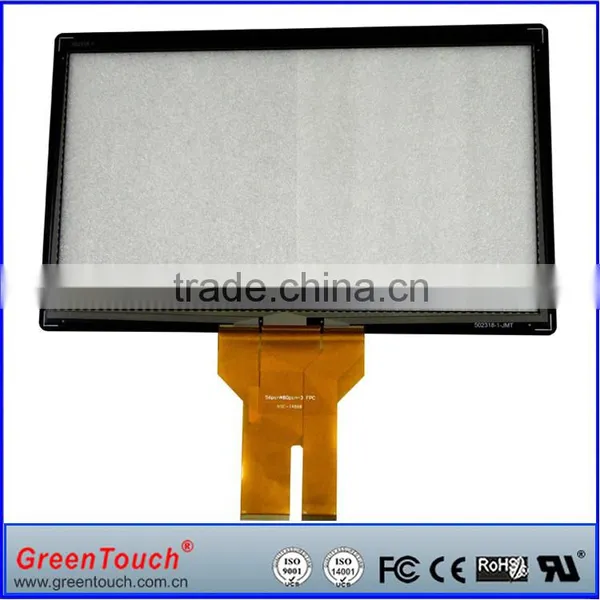

Product show:
Specification:
Product model | GT-PCAP-42 |
Dimensions | 42" |
Structural | GG |
Drive form | COB |
Rati | 16:9 |
Thickness | 2.4mm |
Surface hardness | 6H |
Transparency | >90% |
Operating temperature | -30 °C~ +75°C |
Storage temperature | -40 °C~ +85°C |
Relative Humidity | 90% at 60°C |
Linearity | 1PT:+/-1mm,10PT:+/-2.5mm |
Touch life | >300,000,000 times |
Max. Resolution | 4096 X 4096 (Automatic matching ) |
Max. Support Points | Max,10 points |
Control Type | PCBA control board |
Connector Type | USB |
Interface to Host/Master | USB, 4 wire, 2.0 Full speed |
Supply Voltage | USB 5VDC |
Power Consumption | Active Mode:<30mA,Idle Mode:5mA |
Oscillator Frequency | 12MHz |
Response Time | <10ms |
Min. Report Rate | 10PT: 80Hz |
Max. operating frequency | 100 MHz |
ESD.Air discharge | 8KV |
ESD.Contact discharge | 4KV |
Operating system | Windows7/Windows8/Windows XP... |
Adapter ripple | Vpp<50mv |
