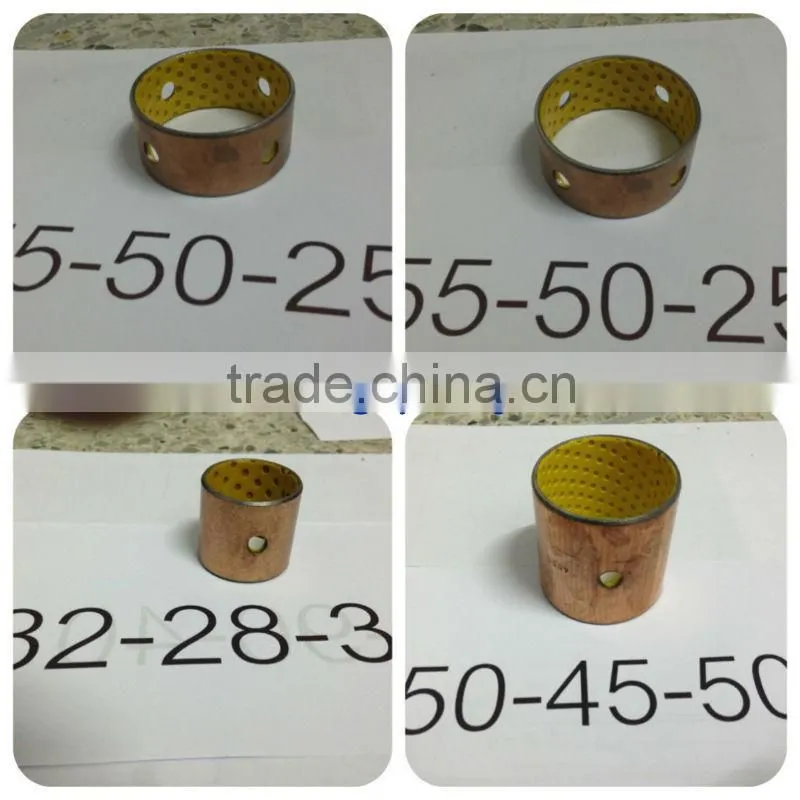

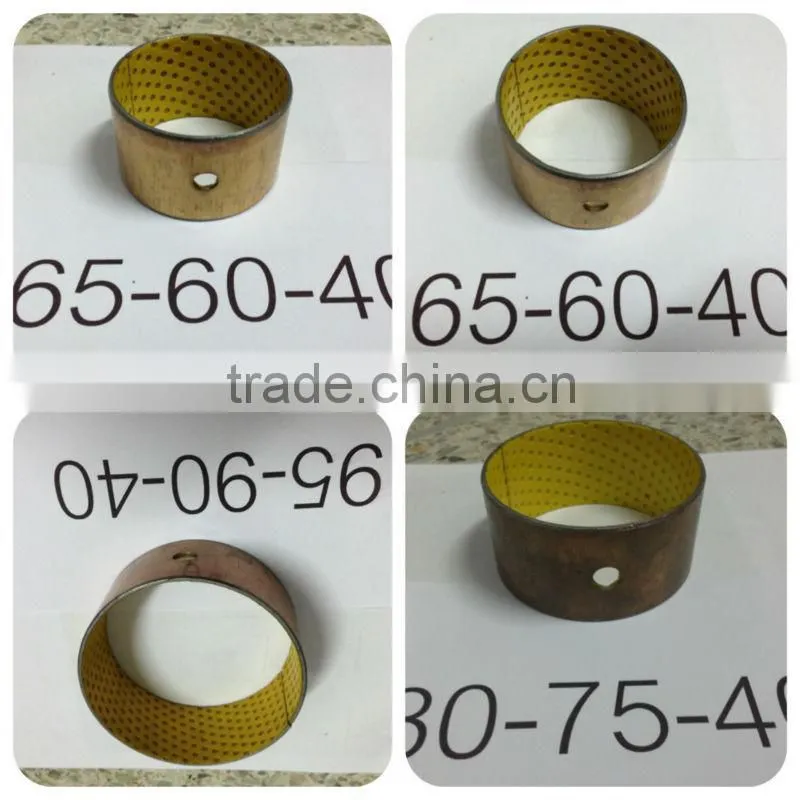

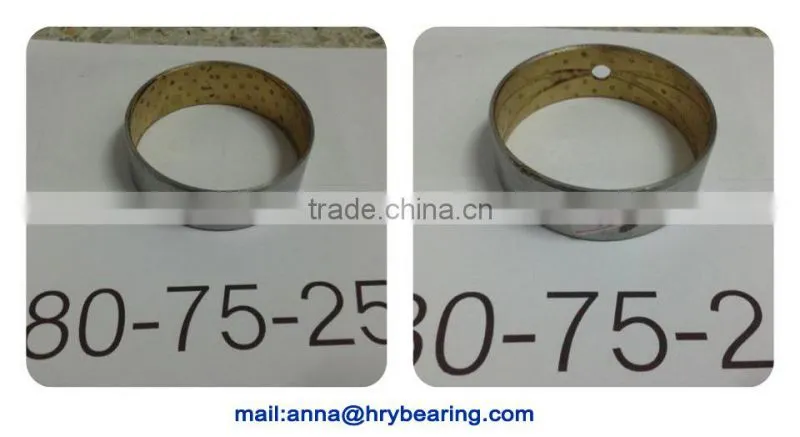

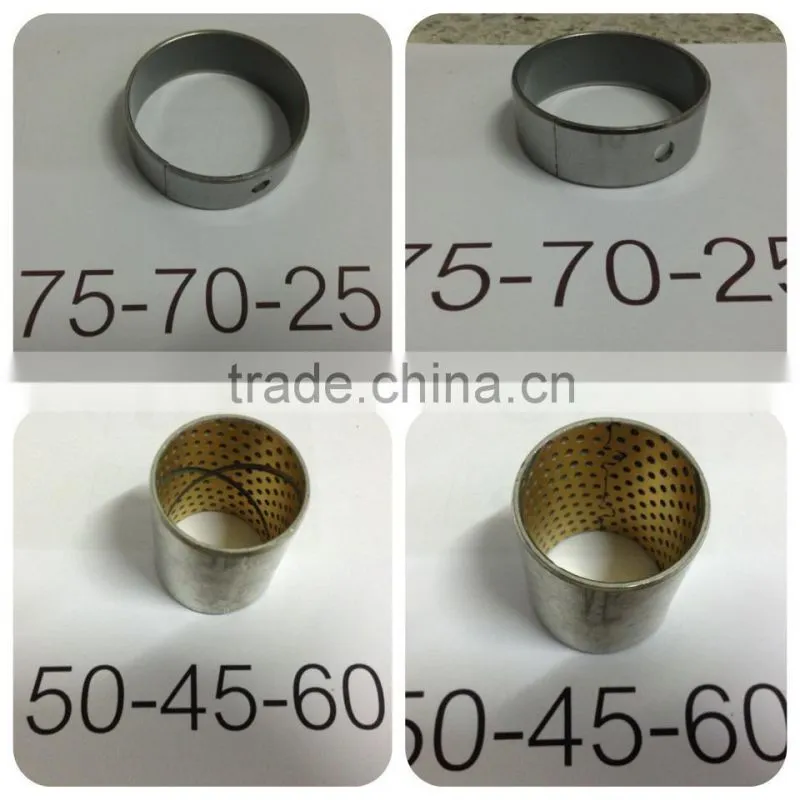

Help Center50mm Auto Bushing Steel and Copper Casting for Construction Machinery Parts ODM Parts Bush Bearing Bronze Bush
Related Products
-
ODM Parts Bush 80mm SF-2 DX Splite BushUS$ 0.1 - 50MOQ: 50 Pieces -
DX Bushings Sliding Bushings 40mm SF-2 Slide Bush Bearing 40x44x55mmUS$ 0.1 - 50MOQ: 50 Pieces
-
DU SF-1 6mm Bushings Sliding Bushings SF-2 Slide Bush BearingUS$ 0.1 - 50MOQ: 50 Pieces
-
DU SF-2 10mm Bushings Sliding Bushings DX Bush for Automotive Industry BushingUS$ 0.1 - 50MOQ: 50 Pieces
-
JF800 10mm Bushings Sliding Bushings DX Bush for Automotive Industry BushingUS$ 0.1 - 50MOQ: 50 Pieces
Specifications
bush/cylindrical bush/tornion bush1.Material : Bimetal
2.Production way:centrifugal casting
|
1.POM thickness 0.30~0.50 mm 2. Sintered bronze powder thickness 0.20-0.35mm 3. Low-carbon steel 4. Copper/Tin plating thickness 0.002mm
Equipment
CNC machining,EDM electrode,Lathe Machining, drilling machine,NC Milling machine ,RHC heat treatment,Mirror surface,Inner/Outer grinding machine and so on .
|
| Max.load | Static | 250N/mm² |
| Lower speed | 140N/mm² | |
| Roatating oscillating | 70N/mm² | |
| Max.PV(dry running) | 2.8N/mm².m/s | |
| Temp.limit | -195°C to+ 280°C | |
| Friction coefficient | 0.05~0.25 | |
| Max.speed | Dry friction | 2.5m/s |
| Oil lubrication | 5.0m/s | |
| Thermal condustivity | 4W/m.k | |
| Coefficient of thermal expansion | 11X10-6/K | |
| Initial assembly must be painted in the oil hold in the grease. | ||
Color:Black, Silver, Red, Blue, Gold, Oliver, White and etc.
material:Brass,Bronze,Copper,Hardened Metals and etc.,
Surface treatment: Polishing ,hardening, carburizing, anodizing, clear anodizing,black anodizing ,chrome plating, black oxide coating, nickel plating, zinc plating, nitriding, degreasing, painting or depend on clients' requirement
Feature:Strict QC and reliable quality.
Special purpose: Used in various Metal stamping,Auto,Motor, Machinery, Electric Tools, Sports Apparatus, office equipment , toys, Fan,and automatic machine,Textile machine, Pump,Agricultural machinery,Machine tool,window ,sliding door, etc
Main markets: cccccc and all over the world.
Equipment:CNC machining,EDM electrode,Lathe Machining, drilling machine,NC Milling machine ,RHC heat treatment,Mirror surface,Inner/Outer grinding machine and so on .
primary Competitive Advantages
1. Advanced machinery & excelent engineering team,competitive price.
2.made in various materials according to cilent's request.
3.non-standard machining parts are available upon request.
4.Small quantity order acceptable.
5.High accuracy with 0.002.
Packaging Details:Products packed by plastic bag, each bag contain 500pcs or 5kg Max, packed Cartons max 20kgs each. Delivered by Wooden package or Iron cage / Pallet as requested, Standard Size 800x800x1200; Max G.W. 800kgs
Delivery Time:Within 10-20days after order confirmation.
