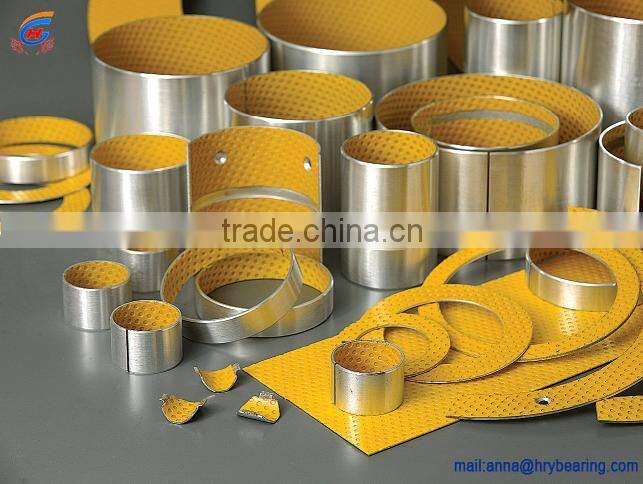

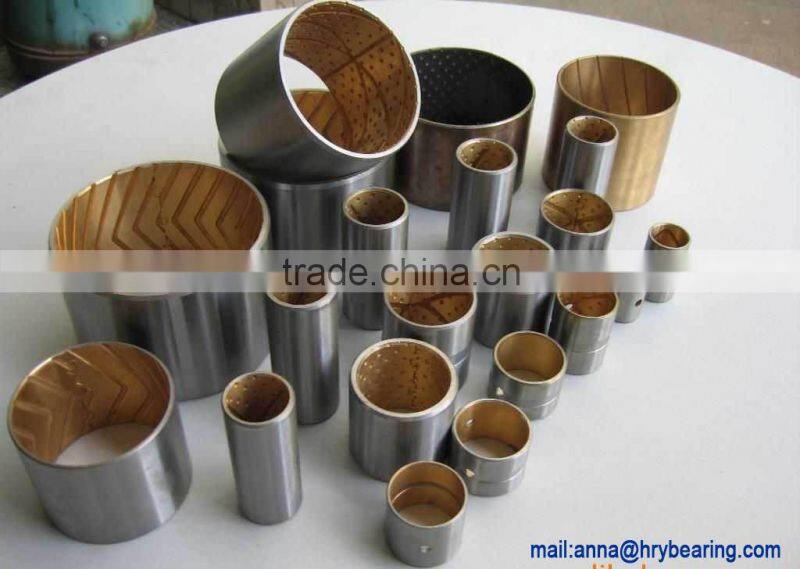

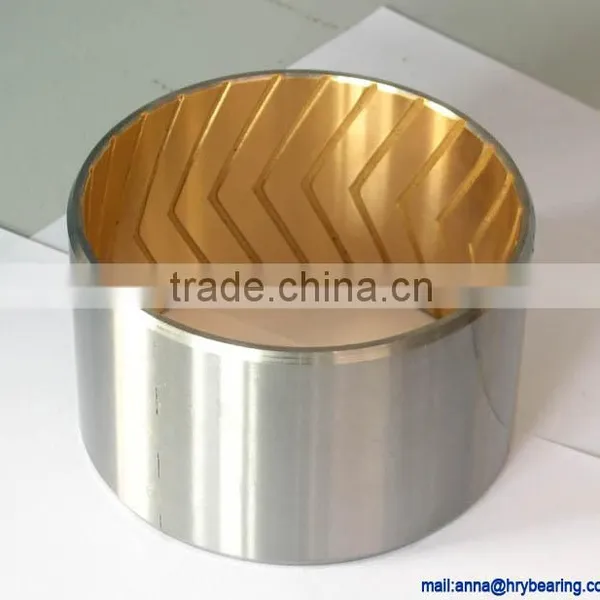

JF800 10mm Bushings Sliding Bushings DX Bush for Automotive Industry Bushing

Name: JF800 10mm Bushings Sliding Bushings DX Bush for Automotive Industry Bushing
Brand: NSK NTN HRY OEM
SKU: 112107713
Availability: InStock

JF800 10mm Bushings Sliding Bushings DX Bush for Automotive Industry Bushing thumbnail-1

JF800 10mm Bushings Sliding Bushings DX Bush for Automotive Industry Bushing photo-1

US$ 0.1 - 50 MOQ: 50 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Jiangsu, China

Brand Name:

NSK NTN HRY OEM

Model Number:

DU,DX,FB090,FB092,JDB,SF-1,SF-2

Contact Supplier Request Quote Chat Now

Wuxi Hangruiyu Bearing Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Jiangsu, China

Brand Name NSK NTN HRY OEM

Model Number DU,DX,FB090,FB092,JDB,SF-1,SF-2

Type Other, Sleeve, bush

Material HLDB-2Y HLDB-10Du HLDB-800

Specifications

1.Good anti-wear,low friction
2.low noise,long useful time
3.direct Du bush supplier
4. High Precison, Low Friction

1.POM thickness 0.30~0.50 mm

2. Sintered bronze powder thickness 0.20-0.35mm

3. Low-carbon steel

4. Copper/Tin plating thickness 0.002mm

Equipment

CNC machining,EDM electrode,Lathe Machining, drilling machine,NC Milling machine ,RHC heat treatment,Mirror surface,Inner/Outer grinding machine and so on .

Max.load	Static	250N/mm²
	Lower speed	140N/mm²
	Roatating oscillating	70N/mm²
Max.PV(dry running)		2.8N/mm².m/s
Temp.limit		-195°C to+ 280°C
Friction coefficient		0.05~0.25
Max.speed	Dry friction	2.5m/s
Max.speed	Oil lubrication	5.0m/s
Thermal condustivity		4W/m.k
Coefficient of thermal expansion		11X10^-6/K
Initial assembly must be painted in the oil hold in the grease.

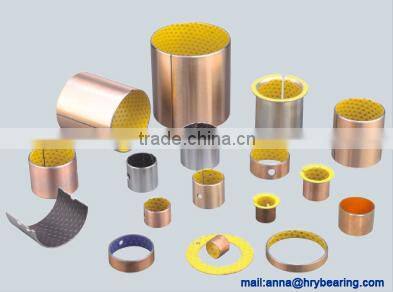

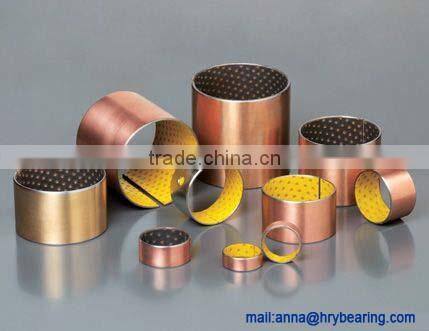

Sleeve Bearings:

Model No.	Min. I.D.	Min.O.D.	Max.I.D.	Max.O.D.	Max. Length
DU,SF-1	6mm	8mm	300mm	305mm	100mm
DX,SF-2	10mm	12mm	300mm	305mm	100mm
JF800	10mm	12mm	173mm	180mm	100mm
FB090	10mm	12mm	300mm	305mm	100mm
FB092	10mm	12mm	300mm	305mm	100mm
JDB,JCB	8mm	12mm	160mm	180mm	150mm
FU	1.5mm	3mm	50mm	70mm	70mm
JGB	1.5mm	3mm	300mm	320mm	100mm

I.D. = inner diameter

O.D. = Outer diameter

Flange Bearings:

Model No.	Min. I.D.	Min.O.D.	Max.I.D.	Max.O.D.	Min.F.D.	Max.F.D.	Max. Length
DU,SF-1	6mm	8mm	40mm	44mm	12mm	53mm	40mm
JF-800	40mm	46mm	95mm	105mm	60mm	144mm	127mm
FB090	25mm	28mm	300mm	305mm	35mm	340mm	90mm
FB092	25mm	28mm	300mm	305mm	35mm	340mm	90mm
JDB	10mm	14mm	120mm	140mm	22mm	170mm	100mm
FU	6mm	12mm	50mm	60mm	14mm	70mm	70mm
JGB	6mm	12mm	300mm	320mm	35mm	340mm	130mm

I.D. = inner diameter

O.D. = Outer diameter

F.D. = Falnge diameter

Color:Black, Silver, Red, Blue, Gold, Oliver, White and etc.

material:Brass,Bronze,Copper,Hardened Metals and etc.,

Surface treatment: Polishing ,hardening, carburizing, anodizing, clear anodizing,black anodizing ,chrome plating, black oxide coating, nickel plating, zinc plating, nitriding, degreasing, painting or depend on clients' requirement

Feature:Strict QC and reliable quality.

Special purpose: Used in various Metal stamping,Auto,Motor, Machinery, Electric Tools, Sports Apparatus, office equipment , toys, Fan,and automatic machine,Textile machine, Pump,Agricultural machinery,Machine tool,window ,sliding door, etc

Main markets: cccccc and all over the world.

Equipment:CNC machining,EDM electrode,Lathe Machining, drilling machine,NC Milling machine ,RHC heat treatment,Mirror surface,Inner/Outer grinding machine and so on .

primary Competitive Advantages

1. Advanced machinery & excelent engineering team,competitive price.

2.made in various materials according to cilent's request.

3.non-standard machining parts are available upon request.

4.Small quantity order acceptable.

5.High accuracy with 0.002.

Packaging Details:Products packed by plastic bag, each bag contain 500pcs or 5kg Max, packed Cartons max 20kgs each. Delivered by Wooden package or Iron cage / Pallet as requested, Standard Size 800x800x1200; Max G.W. 800kgs

Delivery Time:Within 10-20days after order confirmation.
