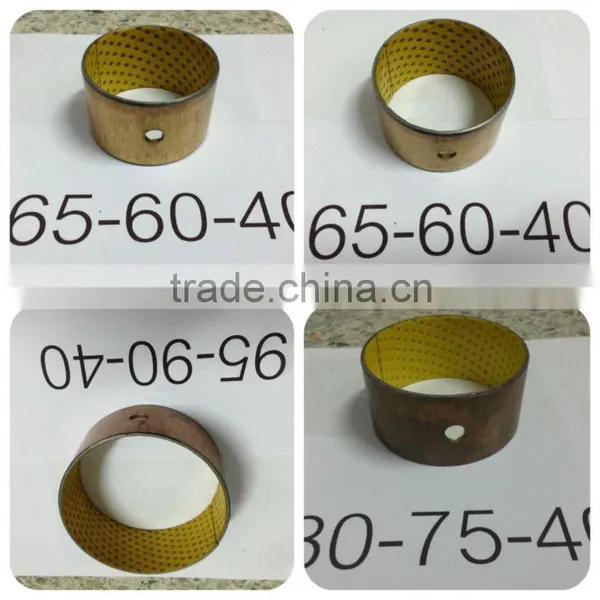

Help CenterDx Bushing POM Mixture Split 65mm Bushing Sleeve Bearing Bush
Related Products
-
50mm Auto Bushing Steel and Copper Casting for Construction Machinery Parts ODM Parts Bush Bearing Bronze BushUS$ 0.1 - 50MOQ: 50 Pieces -
ODM Parts Bush 80mm SF-2 DX Splite BushUS$ 0.1 - 50MOQ: 50 Pieces
-
DX Bushings Sliding Bushings 40mm SF-2 Slide Bush Bearing 40x44x55mmUS$ 0.1 - 50MOQ: 50 Pieces
-
DU SF-1 6mm Bushings Sliding Bushings SF-2 Slide Bush BearingUS$ 0.1 - 50MOQ: 50 Pieces
-
DU SF-2 10mm Bushings Sliding Bushings DX Bush for Automotive Industry BushingUS$ 0.1 - 50MOQ: 50 Pieces
Specifications
1.Dx bushing2.Eexcellent wear resistance
3.Low coefficient of friction
4.ISO9001certificate
|
1.POM thickness 0.30~0.50 mm 2. Sintered bronze powder thickness 0.20-0.35mm 3. Low-carbon steel 4. Copper/Tin plating thickness 0.002mm
Equipment
CNC machining,EDM electrode,Lathe Machining, drilling machine,NC Milling machine ,RHC heat treatment,Mirror surface,Inner/Outer grinding machine and so on .
|
|
Tech. Data | ||||||
Max. load |
Static | 250N/mm2 | Friction coefficient | 0.05~0.20 | ||
| Very low speed | 140N/mm2 | |||||
| Rotating oscillating |
70N/mm2 | Max. speed |
Pre-lubricated | 2m/s | ||
| Oiling Grease |
>2m/s | |||||
| Max. PV | 3N/mm2*m/s | Thermal conductivity | 4W(m*K)-1 | |||
| Temp. limit | -40°C~+110°C | Friction coefficient | 11*10-6*K-1 | |||
Color:Black, Silver, Red, Blue, Gold, Oliver, White and etc.
material:Brass,Bronze,Copper,Hardened Metals and etc.,
Surface treatment: Polishing ,hardening, carburizing, anodizing, clear anodizing,black anodizing ,chrome plating, black oxide coating, nickel plating, zinc plating, nitriding, degreasing, painting or depend on clients' requirement
Feature:Strict QC and reliable quality.
Special purpose: Used in various Metal stamping,Auto,Motor, Machinery, Electric Tools, Sports Apparatus, office equipment , toys, Fan,and automatic machine,Textile machine, Pump,Agricultural machinery,Machine tool,window ,sliding door, etc
Main markets: cccccc and all over the world.
Equipment:CNC machining,EDM electrode,Lathe Machining, drilling machine,NC Milling machine ,RHC heat treatment,Mirror surface,Inner/Outer grinding machine and so on .
primary Competitive Advantages
1. Advanced machinery & excelent engineering team,competitive price.
2.made in various materials according to cilent's request.
3.non-standard machining parts are available upon request.
4.Small quantity order acceptable.
5.High accuracy with 0.002.
Packaging Details:Products packed by plastic bag, each bag contain 500pcs or 5kg Max, packed Cartons max 20kgs each. Delivered by Wooden package or Iron cage / Pallet as requested, Standard Size 800x800x1200; Max G.W. 800kgs
Delivery Time:Within 10-20days after order confirmation.
