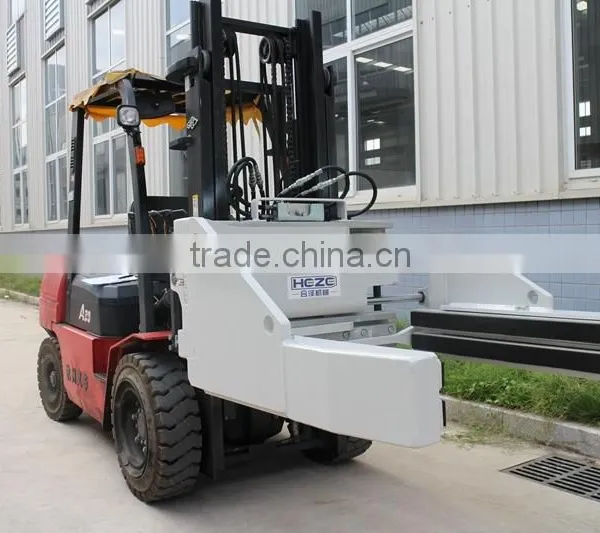

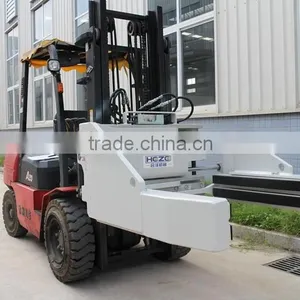

Forklift Flat Holding Stone Clamp

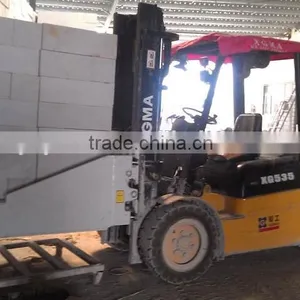

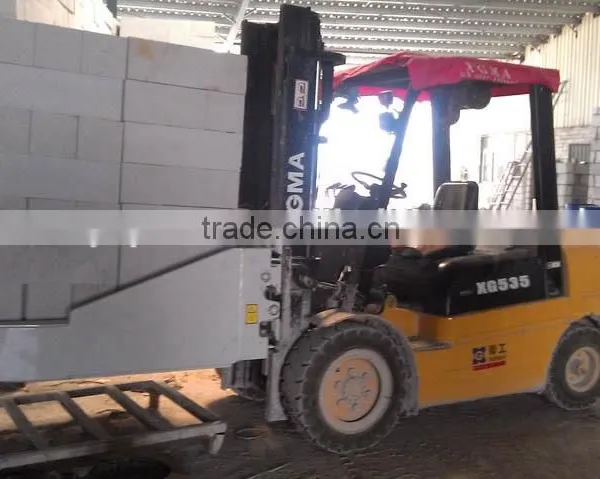

1.Function & Application
Stone clamp can efficiently and saftly clamp various stone and block units. It is applied in fields like brickm, hollow block prefab contrete, and stone slab, etc. Non pallet conveying and stacking process.
2.Features
-Adopt full steel complete frame, high density, can meet the requirement of high forcing performance.
-Self-lubricate sliding brace, installation firm and stable, longer life-span.
-Unique hydraulic design, ensuring moving right and left smoothly while clamping status, easy to lay out.
-Optimized structure ensure nice visual field.
-Adopting T sliding sheft with high force and bear equally.
|
Capacity/ Load Center |
Type |
Mounting Class |
Opening Range |
Arm Height |
Arm Length |
Frame Width |
Overall Height |
Vertical Center of Gravity |
Weight |
Effective Thickness |
Horizontal Center of Gravity |
| E | H | L | B | A | VCG | ET | HCG | ||||
| (kg@mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (mm) | (kg) | (mm) | (mm) | ||
| 2700@500 | CKS30D-001A | II | 290-1610 | 128 | 1100 | 1016 | 710 | 220 | 500 | 145 | 220 |
| 2700@500 | CKS30D-002A | II | 290-1610 | 242 | 1100 | 1016 | 710 | 220 | 550 | 145 | 220 |
| 2700@500 | CKS30D-003A | II | 290-1610 | 128 | 1000 | 1016 | 710 | 220 | 490 | 145 | 211 |
| 2700@500 | CKS30D-004A | III | 290-1610 | 128 | 1100 | 1016 | 710 | 220 | 500 | 152 | 220 |
| 2700@500 | CKS30D-005A | III | 290-1610 | 242 | 1100 | 1016 | 710 | 220 | 550 | 152 | 220 |
| 2700@500 | CKS30D-006A | III | 290-1610 | 128 | 1000 | 1016 | 710 | 220 | 490 | 152 | 220 |
| 2700@500 | CKS30D-007A | III | 290-1610 | 242 | 1400 | 1016 | 710 | 220 | 650 | 152 | 250 |
3.Options
*Custom opening ranges
*various material facing arm
*various mounting class available.
*slip-on arm
*load backrests

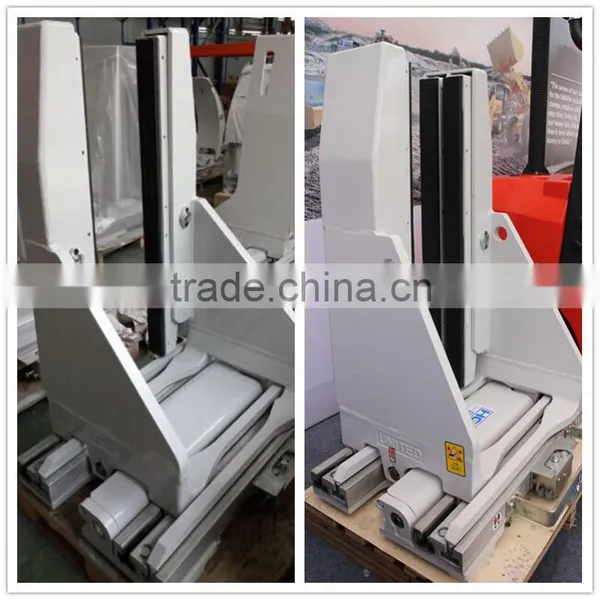

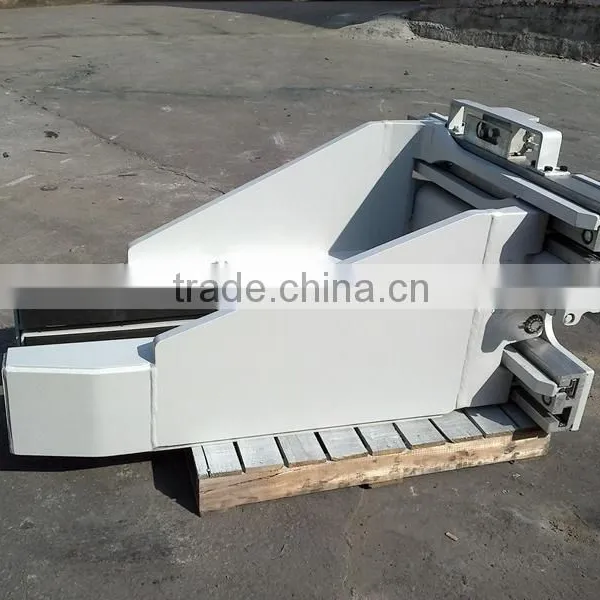

4.Packages & Delivery of stone clamp
5.Stone Clamp on fairs and attracted lots of customers
6.Installation steps of stone clamp
