Home > Products > 12. Linear Motion Bearings > European standard 12mm bore self-lubrication plastic guide linear motion bearings LME12UU with spindle drive or toothed belt
European standard 12mm bore self-lubrication plastic guide linear motion bearings LME12UU with spindle drive or toothed belt
- 15000000 Piece / Pieces per Month
- Shanghai
- T/T
-
Linear slide bearing linear bushing linear bearing LM100
-
Best price linear motion bearing LM80
-
Competitive price special Linear motion ball guide bearing LM60
-
Long life cheap price plastic linear bearing LM50
-
Double side rubber seal linear bearing ball screw LM40
-
Plastic linear motion bearing long rail LM38
Product Details
| Brand Name: | OEM | Precision Rating: | P0,P2,P4,P5,P6, ABEC-1, ABEC-3, ABEC-5, ABEC-7,ABEC9 | Model Number: | LME12UU |
| Place of Origin: | Jiangsu, China |
Packaging Details
We have different types following customer requirements: 1. Single box followed by big box (400 Pcs to 500 Pcs/Caton) (More for trading companies) 2. Plastic tube (10 Pcs/tube) then, shipping carton (after market and small quantity OEM) 3. Bulk pack (many OEM businesses prefer this type)

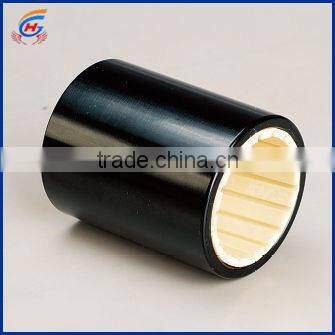

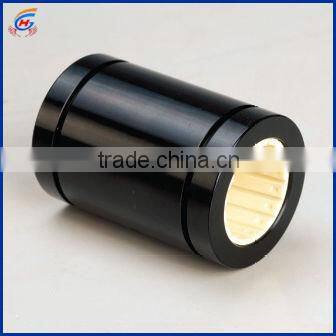

Product Description
- Maintenance free - self lubricating material - quiet operation
- Improved reliability in hostile environments. Resistant to galvanic corrosion
- Does not gall or Brinell mating shaft
- Interchangeable with all linear ball bearings
- Use with all hard or "soft" stainless steel shafting
| Title | European standard 12mm bore self-lubrication plastic guide linear motion bearings LME12UU with spindle drive or toothed belt |
| Bearing model no. | LME12UU |
Sizes (mm) (d*D*B) | 12 * 22 * 32 |
| Service | OEM and ODM(any brands you want) |
| Shipment | 1- Sample sent by Courier Express, like DHL,Fedex(4-7working days) 2- Send by Air: Arrive at the destination Airport,it's fast.It needs you to pick it up 3- Ship by Sea: Low shipping cost, Suitable for large quantity and non-urgent delivery |
| Payment terms | T/T, Western Union, PayPal, Escrow, MoneyGram; |

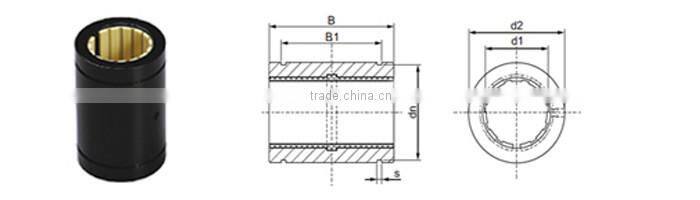

| Items nos. | Sizes (mm) | |||||
| d1 | tolerance | d2 h7 | B h10 | s h10 | dn h10 | |
| LIN-01R-10 | 10 | 0.030~0.088 | 19 | 30 | 17.5 | 2.5 |
| LIN-01R-12 | 12 | 0.030~0.088 | 22 | 32 | 20.5 | 3 |
| LIN-01R-16 | 16 | 0.030~0.088 | 26 | 36 | 24.2 | 3.5 |
| LIN-01R-20 | 20 | 0.030~0.091 | 32 | 45 | 29.6 | 3.5 |
| LIN-01R-25 | 25 | 0.030~0.091 | 40 | 58 | 36.5 | 4 |
| LIN-01R-30 | 30 | 0.040~0.110 | 47 | 68 | 42.5 | 4 |
| LIN-01R-40 | 40 | 0.040~0.115 | 62 | 80 | 57.8 | 5 |
| LIN-01R-50 | 50 | 0.050~0.130 | 75 | 100 | 70.5 | 6 |
Please visit our online catalogue:
If you're interested in the following products,please click on it. | ||
|
|
|
|
|
|
Our services as followings:
1. Perfect groups of technical engineers give you the best supports
2. Well-trained groups of International salesman provide the best service
3. OEM and ODM service
4. Good after-sale service
The product will be strictly inspected by our factory QC Process System before shipment.
Multi-layer packaging to ensure that the goods are not damaged during the process of transportation.
Wuxi Hangruiyu Bearing Co.,Ltd was established in 2006. Our products have been widely used in USA,Korea, Europe, Southeast Asia, the Middle East, Africa and other countries and regions.
Our Main products are Deep groove ball bearings , Angular contact ball bearings , Tapered roller bearings , Cylindrical roller bearings , Pillow Block bearings. OEM Service is also welcomed .
Customers Spoke highly to our high quality with competitive price , and good service . We always stick to the principle : “Treat customers wholeheartly” and making progress .
For more information, please send an inquiry below.
Company Profile
Wuxi Hangruiyu Bearing Co., Ltd. is a manufacturer of bearings with well-equipped testing equipment and strong technical force.
With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in large machinery, petrochemical industry, mine, metallurgy and other machinery industry supporting products.
Our products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
We welcome new and old customers from all walks of life to contact us for future business relationships and achieving mutual success!
