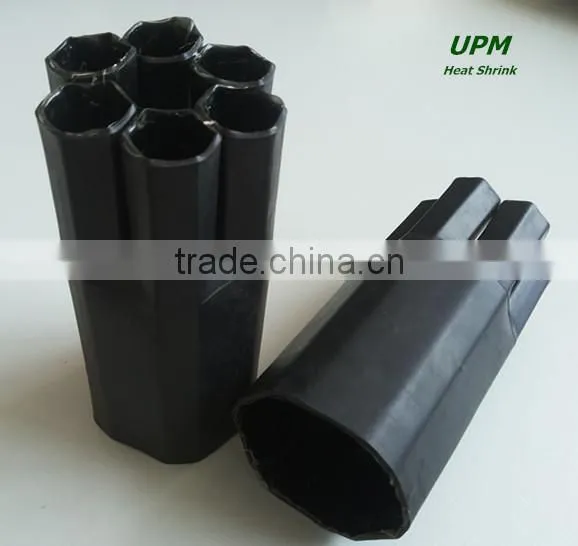

6 Cores Cable Protection Breakout Boot
US$ 2 - 10
MOQ: 100 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
Y1-MVR
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
6 Fingers Cable Protection Breakout BootUS$ 2 - 10MOQ: 100 Pieces -
6 Fingers Cable Insulated Waterproof BootUS$ 2 - 10MOQ: 100 Pieces
-
Busbar Protection Shrink TubeNegotiableMOQ: 100 Meters
-
24kV Copper Busbar Insulative Heat Shrink TubeNegotiableMOQ: 100 Meters
-
Bus Bar TubeUS$ 1 - 9MOQ: 100 Meters
Place of Origin
Liaoning, China
Brand Name
UPM
Model Number
Y1-MVR
Conductor Material
Copper
Insulation Material
PE
Jacket
PE
Number of Conductors
6
Application
1-15kV
Y1-MVB medium Voltage semiconductor red Cable Break-out Boots
Voltage Class 24-36kV Ideal for insulation and protection of cable break-out
Molded heat shrinkable cable break out boots, commonly used for insulation, protection and seal against water and corrosion for cable breakouts.
Applications
Energy supply infrastructure, chemical factory, oil refinery, metallurgy, harbor or other location where safety and reliability of energy supply is vital for daily operation
Features/Benefits
Semiconductor product
Radial shrinkage ≥ 50%
Longitudinal shrinkage < 20%
Waterproof(red sealed adhesive)
Long Life Expectancy of 20 Years at -55 ~ 105 oC
Anti tracking product
Temperature Range
Operating Temperature : -55 ~ 105 oC
Shrink Temperature : 120 ~ 140 oC
Colour:red
Product Code Cross References
RAYCHEM : CCBA
Technical Details
Test item |
Test standard |
Typical Data |
Density |
ASTM D2671 |
1.1~1.2 |
Thermal endurance |
IEC 216 |
-55~105 |
Tensile strength |
ASTM D2671 |
>12MPA |
Ultimate Elongation |
ASTM D2671 |
>400% |
|
Accelerated Ageing 168hrs at 136
Tensile strength
Ultimate Elongation
|
ASTM D2671 |
>10MPA
>300%
|
Low temperature flexibility 4hrs at -40 |
ASTM D2671 |
No cracking |
Heat shock 4hrs at 200 |
ASTM D2671 |
No drop no flow |
Volume resistivity |
ASTM D2671 |
>104Ω.cm |
Water absorption |
ASTM D570 |
<0.5% |
Product Selection
Product Code |
Big end (mm) |
Finger (mm) |
||
|
Before
shrink
|
After
shrink
|
Before
shrink
|
After
shrink
|
|
Y1-6/0b |
46 |
20 |
12 |
5 |
Y1-6/1b |
56 |
25 |
16 |
8 |
Ordering
When ordering this product, please specify 1) Product code 2) Colour 3) Quantity Required
