Super Thin Wall Heat Shrink Tube for Covering Fluorescent Lamp

US$ 0.01 - 9.99 MOQ: 1000 Meters

Key Specifications

Place of Origin:

Liaoning, China

Brand Name:

UPM

Model Number:

S15

Union Polymer Material Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Dalian China

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Liaoning, China

Brand Name UPM

Model Number S15

Type Insulation Sleeving

Material Composite Polymer

Application Low Voltage

Rated Voltage 1kV

Tensile Strength 20MPa

Specifications

Ideal for protecting against splinters from accidental breakages

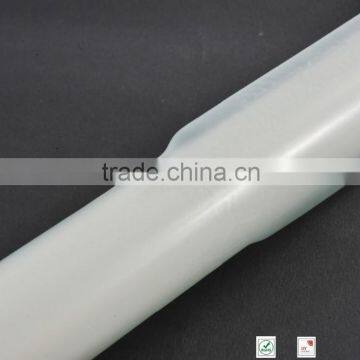

S15 Super Thin Wall Crosslinked Polyolefin for Covering Fluorescent Lamp
Features
Insulation, Protection		Operating temperature: -55~135 ℃
UV resistance		Shrink temperature: 125 ℃
Halogen free, Flexible		Shrink Ratio:≤2:1
Technical Data
Property		Test method	Values
Physical	Density	ASTM D2671	0.95~1.00
	Thermal endurance	ASTM D2671	135℃
	Tensile strength	ASTM D2671	≥20 MPa
Aging (158 ℃/168hrs)	Breakdown elongation	ASTM D2671	≥ 300%
Aging (158 ℃/168hrs)	Tensile strength	ASTM D2671	≥ 16 MPa
	Breakdown elongation	ASTM D2671	≥ 240%
	Water absorption (23 ℃/24hrs)	ASTM D570	≤0.5%
	Halogen free	_	Cl : 900ppm max. Br : 900ppm max. Total (Cl + Br) : 1500ppm max.
	Halogen free	_
Electrical	Dielectric breakdown voltage	ASTM D2671	2500V pass
	Volume resistivity	ASTM D2671	≥1014 Ω.cm
Chemical	Copper stability	ASTM D2671	No corrosion

Dimensions
	Shrink ratio ≤2:1
Reference	As supplied(mm)	After recovered(mm)		lamp type
UPM S15	ID min.	ID max.	WT nom.	lamp type
21/13	21.0	13.0	0.20	T5
29/16	29.0	16.0	0.20	T8
38/19	38.0	19.0	0.20	T12

ID=Internal Diameter		WT= wall thickness
Typical application
Ideal for protecting against splinters from accidental breakages.

Ordering
Standard color :Clear

Cross reference
DSG Canusa: ITUV
