Flame Retardant Heat Shrink Tube

Flame Retardant Heat Shrink Tube thumbnail-1
Flame Retardant Heat Shrink Tube photo-1
US$ 0.5 - 15 MOQ: 122 Meters
Key Specifications
Get Latest Price
Place of Origin:
Liaoning, China
Brand Name:
UPM
Model Number:
S3
Contact Supplier Request Quote Chat Now
Union Polymer Material Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Dalian
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Liaoning, China
Brand Name UPM
Model Number S3
Type Other, Heat shrink tube
Material PE
Application Low Voltage
Rated Voltage 1-36kV

Specifications

heat shrink tube
Adhesive coating
Certified by DNV and CCS
Size from 12/4 to 260mm
Heavy wall

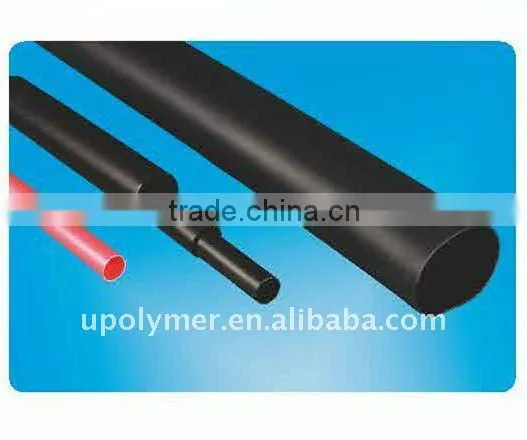

S3 Flame retardant Dual Wall Heat Shrinkable Tubing

Voltage Class 1kV Ideal for electrical insulation and protection of outdoor electrical equipments

Dual wall, flame retardant abrasion resistant heat shrinkable tubing with adhesive liner.

Applications
  Insulation protection for outdoor electrical equipments and connections (such as hanging lamps, external lighting system, electrical cable for motors and other cabling joints) in sea-going vessel, off-shore oil platform, shipyard and harbor.
  Water sealant applications for outdoor electrical equipments
  Other applications which require mechanical protection and waterproof sealing against seawater, moisture and other common contaminates



Temperature Range
       Operating Temperature         : -55~ 105 ºC
       Shrink Temperature              : 105 ~ 135 ºC

Color: Black, Red

Certification
·Type certified by DNV
·Type Certified by CCS

Product Code Cross References
·Raychem/Tyco            : SST
·DSG Canusa            : FCFW
 3M                 : HDT



Technical Details



Test Item Test Method Typical Value
Tensile strength ASTM D2671 ≥10.4MPa
Break down elongation ASTM D2671 ≥450%
Tensile strength after aging ASTM D2671 ≥10.4MPa
Break down elongation after aging ASTM D2671 ≥400%
Upright combustibility ASTM D2863 FV-1
Water absorption ASTM D570 ≤0.5%
Heat shock 200 for 30min No drop, no flow
Low temperature flexibility -40 for 4h No cracking
Dielectric strength ASTM D2671 ≥15kV/mm
Peel off strength to PEX ASTM D2671 ≥30N/cm
Peel off strength to steel ASTM D2671 ≥30N/cm



Product Selection



Product Code Min. wall
thicknessafter free
recovery(mm)		 Tube shape Standard Length Per Piece(m) Standard Packing(pc/carton) Carton Size
(cm)
12/4 2.0   1.22 650 127*39*44
16/5 2.2   1.22 450 127*39*44
19/6 2.5   1.22 350 127*39*44
22/6 2.5   1.22 250 127*39*44
25/8 2.5   1.22 190 127*39*44
28/6 2.5   1.22 170 127*39*44
33/8 2.5   1.22 130 127*39*44
35/12 2.5   1.22 100 127*39*44
40/12 2.5   1.22 90 127*39*44
45/13 2.5   1.22 70 127*39*44
55/16 2.7   1.22 60 127*39*44
65/19 2.8   1.22 50 127*39*44
75/22 3.0   1.22 40 127*39*44
85/25 3.0   1.22 30 127*39*44
95/25 3.0   1.22 25 127*39*44
115/34 3.0   1.22 25 127*39*44
130/36 3.0   1.22 20 127*39*44
140/42 3.0   1.22 20 127*39*44
150/42 3.0   1.22 20 127*39*44
160/50 3.0   1.22 20 127*39*44
175/58 3.0   1.22 optional optional
200/65 3.0   1.22 optional optional
230/75 3.0   1.22 optional optional
260/85 3.0   1.22 optional optional
ID: Internal Diameter
Flame retardant Heat shrink tube
