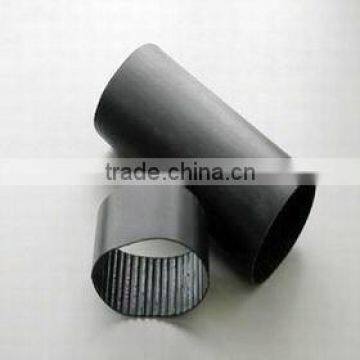

heat shrink tube
- 0 per Month
- Dalian
- T/T
You May Like
Product Details
| Brand Name | justup | |||
| Model Number | S3(c) | Type | Insulation Sleeving | |
| Material | PE | Application | Low Voltage | |
| Rated Voltage | 1kV |
Product Description
Specifications
Heat shrink tubeMastic adhesive
Anti corrosion
Raychem SATM
Pipe work application
heat shrink tube
Product Code Cross References
Raychem : SATM
DSG Canusa : PLA
Ideal for protecting metal pipe against corrosion
Dual wall heat shrinkable tubing with radiation cross-linked HDPE outer layer for effective mechanical protection and inner layer with special formulated adhesive for preventing corrosion and sealing against water, moisture and common chemical solutions.
Applications
·Corrosion prevention and mechanical protection of metal pipeline and joints
Features/Benefits
·Shrink Ratio: 3:1
·Adhesive-lined, sealing against water and moisture
·Corrosion resistant to common chemical solutions
·Abrasion resistant
·Applicable in direct underground pipe work applications
Temperature Range
Operating Temperature : -55 ºC ~ 135 ºC
Shrink Temperature : 135 ºC
Colour:Black
Product Code Cross References
Raychem : SATM
DSG Canusa : PLA
Technical Details
Test Item | Test Method | Typical Data |
Tensile strength | ASTM D 2671 | > 19MPa |
Elongation at break | ASTM D 2671 | > 450% |
Impact brittleness | ISO 974 | < -50 |
Water Absorption (23 for 24h) | ISO 62 | < 0.1% |
Peel strength to steel at 23 (cross head speed 100mm/min) | ISO 4587 | > 5N/cm2 |
Corrosion effect | ASTM D 2671 | No corrosion |
Shear strength at 23 (cross head speed 50mm/min) | - | 12N/cm2 |
Soften point | ASTM E28 | 85 |
Product Selection
Product Code | Min. wall thickness after free recovery(mm) | Standard Length Per Piece (m) |
S3(c)-Φ30/10 | 2.5 | 1.22 |
S3(c)-Φ33/11 | 2.5 | 1.22 |
S3(c)-Φ40/13 | 2.5 | 1.22 |
S3(c)-Φ45/15 | 2.5 | 1.22 |
S3(c)-Φ55/16 | 2.7 | 1.22 |
S3(c)-Φ75/25 | 3.0 | 1.22 |
S3(c)-Φ95/30 | 3.0 | 1.22 |
S3(c)-Φ120/40 | 3.0 | 1.22 |
S3(c)-Φ130/42 | 3.0 | 1.22 |
S3(c)-Φ140/45 | 3.0 | 1.22 |
S3(c)-Φ160/50 | 3.0 | 1.22 |
S3(c)-Φ180/60 | 3.0 | 1.22 |
S3(c)-Φ205/70 | 3.0 | 1.22 |
S3(c)-Φ235/80 | 3.0 | 1.22 |
S3(c)-Φ260/85 | 3.0 | 1.22 |
S3(c)-Φ300/100 | 3.0 | 1.22 |
