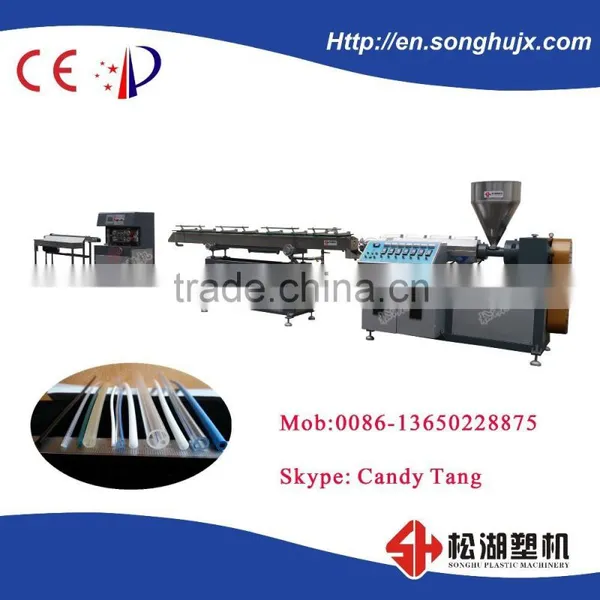

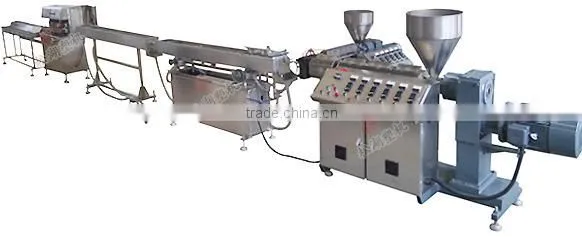

Precision Medical Tube Making Machine
Usage:
Precision medical tube extrusion line is mainly used in the production of oxygen tube, blood transfusion tube, catheter, drainage tube, tracheal intubation, central venous catheter, anesthesia tube, perforated tube and various types of precision medical tubes.
Main features:
Precision medical tube extrusion line is stable and efficient, especially its voltage,hydraulic, pneumatic, extrusion and traction speed are digital control when producting process.The roundness and wall thickness have reached a high standard of ± 0.02mm.
1.Precision extruder:
|

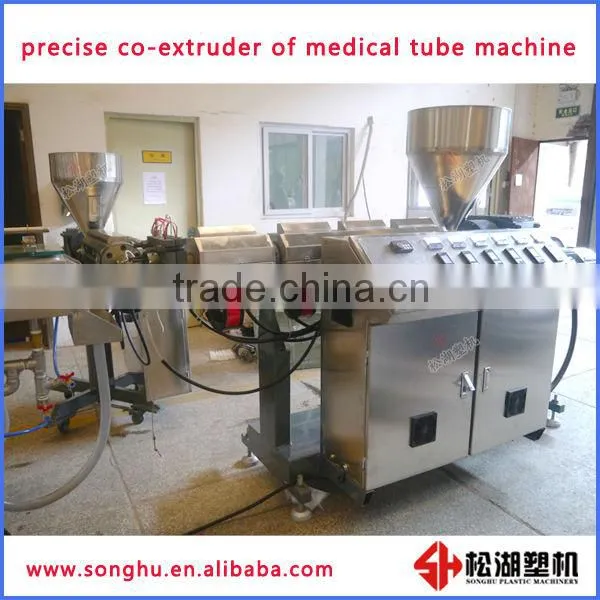

The precise co-extruder of medical tube machine.
1. Temperature control 2. Extrusion mould
|
2.The Vacuum Calibration cooling tank system
|

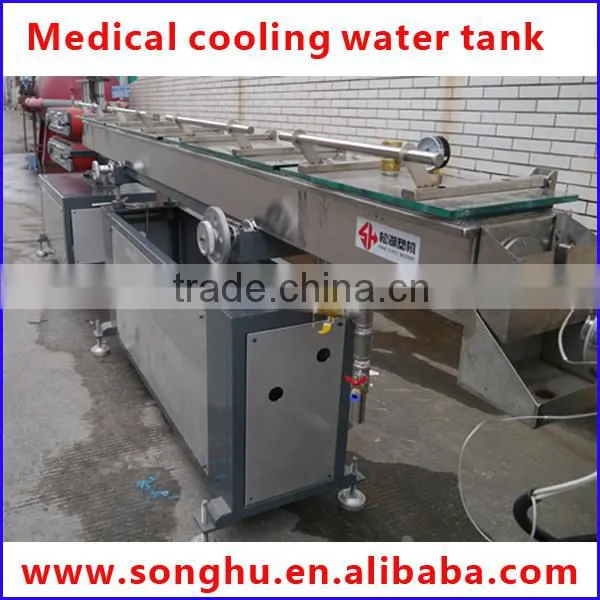

The cooling water tank of medical tube making machine
1. Mechanical structure:Made of SUS304 stainless steel 2. Threedimensional regulating system
|

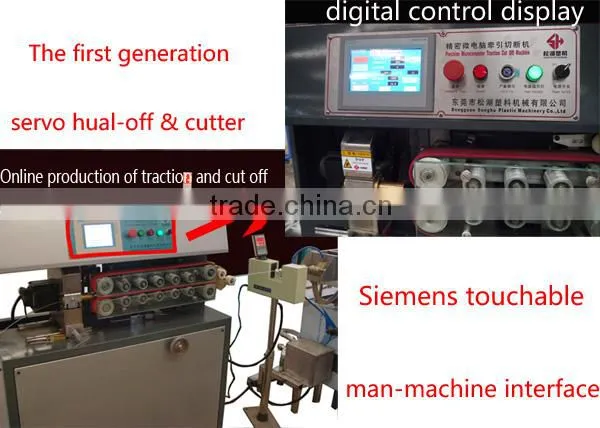

3.The Haul-off:
high precision line guides opening and closing, long down regulation mechanism, German Siemens Servo motor and controller, imported synchronous belt transmission mode, which can effectively overcome using gear rotates or slight shock due to gear rotates over the tooth,which ensure the haul-off speed more stable and provide the guarantee for high quality products.
The haul-off system is using PU flexible multi wedge belt. |
|
4.Cutter
German Siemens Servo motor drive, PLC programming control and man-machine interface are all German Siemens brand; Cutting and haul-off adopt a special structure, which ensure the soft tubules is blocking, cutting knife adopts the hose for the chipless cutting device, cutting times can be automatic counting and cutting length can be set freely with precision of ± 1mm.
5.Electrical control system: Siemens
The haul-off is driven by Siemens 1KW servo motor,which speed is stable and accurate.Cutting machine is driven by Siemens servo motor, Siemens PLC, touch human-computer interface integrated control system, which is accurate counting, convenient and intuitive operation. Realize traction, cutting, conveying three parts centralized control.
6.Applicable Material: PVC,PU
7. Machine includes:
Model |
Equipment |
Quality |
1 |
45mm main extruder |
1SET |
2 |
25mm co-extruder |
1SET |
3 |
Precise mould |
1SET |
4 |
4meters water calibration tank |
1SET |
5 |
Servo pulling and cutting |
1SET |
6 |
Auto stacker |
1SET |
8.Main technical parameter:
|
Model
|
Screw Dia. |
Screw L/D |
Motor power |
Haul-off power |
Cutter power |
Capacity(kgs/hr.) |
SHQC-45&25 |
45&25 |
25-30 |
7.5kw |
1.5 |
5 |
15-20 |

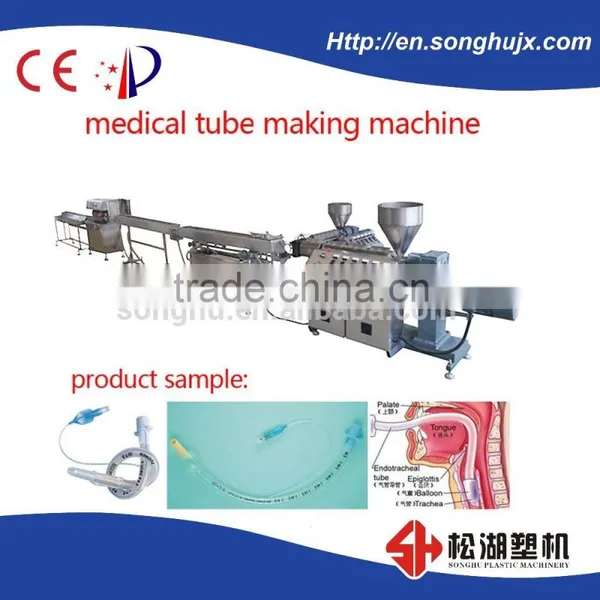

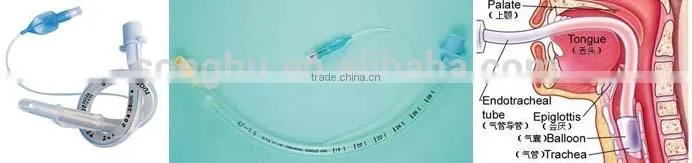

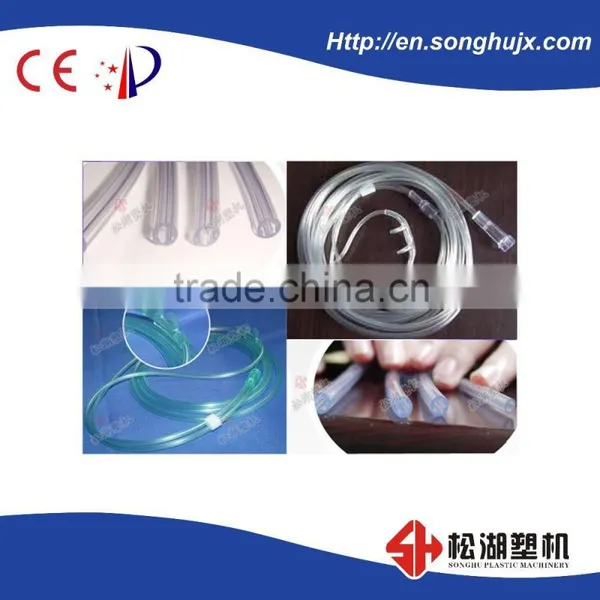

9.Product Sample
10.delivery and shipment:
| We check the every part of the production line carefully according to the agreement before shippment. | |

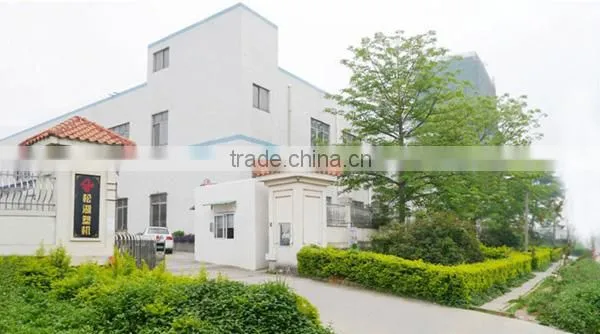

| The overview of our company. | |
|

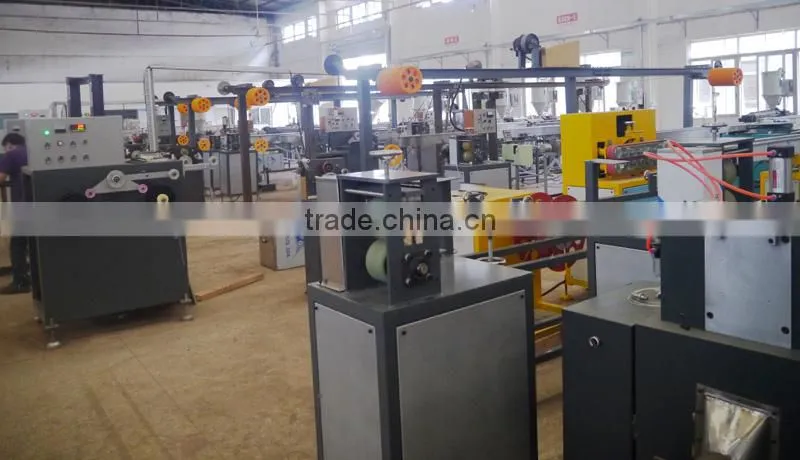

Many production lines are manufactured in our factory. |
| This is oue sale department,we are a team and glad to serve you. | |
Our certification:
