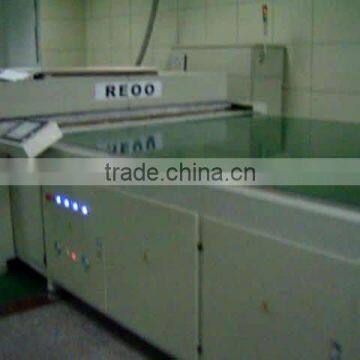

Full automatic laminator
USE : As the equipment of manufacturing solar module limited to laminate glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet
Dimension : 14600mm x 2460mm x 1300mm
Laminating area: 4600mm x 2200mm.
Laminating height: 25mm
Total power consumption: 75 KW ( AC380V, 60 Hz , or according to customer's need )
Air source: 0.6 - 1.0 MPa.
Operating mode: Manual / Automatic.
Control system : PLC ( Delta).
HIM system: Touch screen ( Delta)
Heating mode: Oil Heating ( SD320 heat-conducting oil, capacity: 170 L, flow pressure:0.3 Mpa.), inculde: main heating and adjustable heating.
Temperature control: PID intelligent temperature contol system.
Temperature uniformity in working area: ≤ ±1.5 ℃
Temperature control accuracy:≤± 1 ℃.
Temperature control range: 30℃ - 180 ℃
Pumping rate: 70 L/s .
Laminating time: 2 - 4 mins ( excluding sollidification time )
Heating rate: 135℃ at room temperature with 50 to 60 minutes
Vacuum rate: 200 L / S, the limit vacuum 70 ~ 90 Pa, vacuum Time: 90 seconds
Silicone sheet size: 3800mm * 2400mm, 5 mm thickness.
It will be changed after 1500 times.
Lid opening: Straight from the hydraulic,
the biggest opening height: 200 mm
Total weight: 15.8 T
Conventional 300 Wp (1650*1030) solar module, 4 pcs in one cycle time.
Production capacity: 300 W * 4 pieces / time * 3 times / h * 8 hours * 300 days= 8.64 MW / year.
Warranty period: 12 month. (Exclusive easily damaged parts)
The basic production programe in production line.
1. Preparation: Preparation for all of raw material, such as solar cell, framer, glass and EVA film.
2. Soldering cells: Sort cell by solar cell tester, then single soldering and string soldering.
3. Cutting material: EVA film. Back sheet.
4. Laying up: Laying up the solar cell stringer on the glass and EVA film..
5. Laminating: laminate laying up raw material and keep solidify.
6. Fix junction box: trimming the edge of the extra EVA, fix the junction box on solar panel.
7. Inspection: Test laminated solar panel.
8. Quality tests: in the process of making other tests, IV curves of the test, and the appearance of high-
voltage isolation.
9. Warehousing: Qualified storage products, goods failed to repair.
The main raw materials
A. Tempered glass
B. Solar cells
C. EVA film
D. TPT back sheet
E. Junction Box
F. Soldering ribbon.
G. Aluminum framer
H. Silica gel.
I. Soldering flux.
J. High temperature tape
Installation
We send engineer or technicians to buyers factory to install machine.
All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer.
REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .
guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
/watch?v=fdLI7K639p4&feature=youtu.be
We can supply technical documents for apply TUV certificated. It is free.
