Home > Products > Solar panel laminator > Hot sale 2200mm*2200mm Semi-automatic solar module laminator

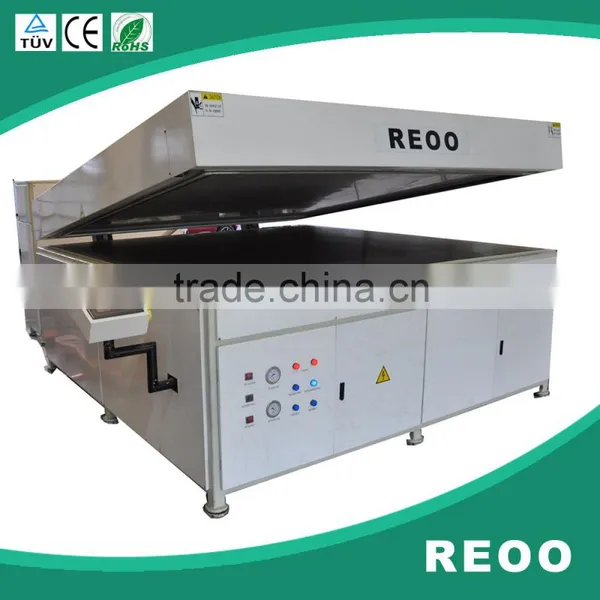

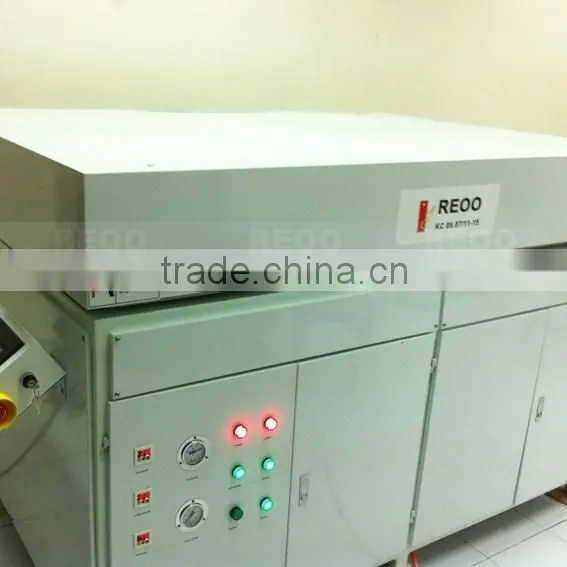

Hot sale 2200mm*2200mm Semi-automatic solar module laminator
- 200 Set / Sets per Month
- Shanghai
- T/T
You May Like
-
Semi-automatic solar panel manufacturing machine laminator 2200mm*2200mm ( Training, installation, commissioning )
-
Fully automatic solar module laminator ( high efficiency, competive price, touch screen)
-
Full automatic laminator 4600*2200mm Oil heating laminator for TPT and EVA encapsulating
-
REOO Semi automatic laminator RO-B2 MINI Semi-Auto Laminator for Solar Panels (Touch Screen)
-
REOO Solar panel semi automatic laminator factory price supply
-
Semi- automatic solar panel laminator for solar cell assembly line
Product Details
Place of Origin | Jiangsu, China | Brand Name | REOO | |
Model Number | RO-B1 | Type | Other, solar panel laminator |
Product Description
5MW Solar panel laminator
RO-B1 Solar panel laminator,Semi automatic,Can process 2 pcs of 300watt solar panel in one times.
Specification:
1.Semi automatic solar module laminator;
2.PLC + Touch screen control;
3.Energy-saving laminator;
4.Operate,maintain easily.
5. Obtained ISO9001 and CE certification system already.
Technical parameter:
ITEM | SPECIFICATION |
Laminating area | 2200mm x 2200mm. |
Total power consumption | 45 KW ( AC380V, 60 Hz , or according to customer's need ) |
Air source | 0.6 - 1.0 MPa |
Operating mode | Manual / Automatic |
Control system | PLC |
HIM system | Touch screen |
Heating mode | Oil Heating |
Temperature control | PID intelligent temperature contol system |
Temperature uniformity in working area | ≤ ±1.5 ℃ |
Temperature control accuracy | ≤± 1 ℃ |
Temperature control range | 30℃ - 180 ℃ |
Pumping rate | 70 L/s |
Laminating time | 2 - 4 mins |
Vacuum rate | 200 L / S |
limit vacuum | 70 ~ 90 Pa |
vacuum Time | 90 seconds |
Silicone sheet size | 2400mm * 2400mm, 5 mm thickness |
Lid opening | by air |
Total weight | 5500kg |
Production capacity | Conventional 210 Wp (1650*1030) module |
Warranty period | 12 months. (Exclusive quick-wear parts). |
Dimension | 3000mm x 2700mm x 1400mm |
Product capacity :
Conventional 150Wp (1482*676) solar module, 2 pcs in one cycle time.
Production capacity:
150 W * 2pieces / time * 3 times / h * 8 hours * 300 days= 2.16MW / year.
Installation
We send engineer or technicians to buyers factory to install machine.All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance. buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
Why buy solar panel production line from REOO technology ?
We have more experience for design, manufacturing, packing, shipping, installation, training, trial production in all of world.
We have more than 10 years experience for manufacture and export solar panel machines
Our engineer can install all of machines for making solar panel.
Our engineer can supply best technology.
We can train for all of machines.
We supply all tools and accessories for production, It is difficult be purchased in other countries. and these tools is free, Do not need money.
We can supply all of raw material for manufacture solar panel in good quality and lower price.
Please look the video from by REOO solar.
We can supply technical documents for apply TUV certificated. It is free.
Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
