Hot Sale Eps Shape Cutter/3D Eps Shape Cutting Machine

Hot Sale Eps Shape Cutter/3D Eps Shape Cutting Machine photo-1
Hot Sale Eps Shape Cutter/3D Eps Shape Cutting Machine photo-2
Hot Sale Eps Shape Cutter/3D Eps Shape Cutting Machine photo-3
Hot Sale Eps Shape Cutter/3D Eps Shape Cutting Machine photo-4
Hot Sale Eps Shape Cutter/3D Eps Shape Cutting Machine photo-5
US$ 12,000 - 28,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Plastic Sheet
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Plastic Sheet
Place of Origin Zhejiang, China
Brand Name Milon
Model Number ML-CM/L6000
Voltage 380V
Power(W) 11kw
Dimension(L*W*H) 23000x2000x2500mm
Weight 4500KG
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Hot sale eps shape cutter/3D eps shape cutting machine



Product Description



---Product description---



Working flow of eps CNC cutting line

Hot sale eps shape cutter/3D eps shape cutting machine

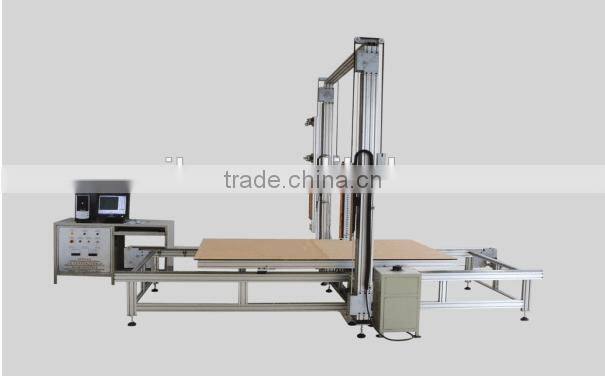

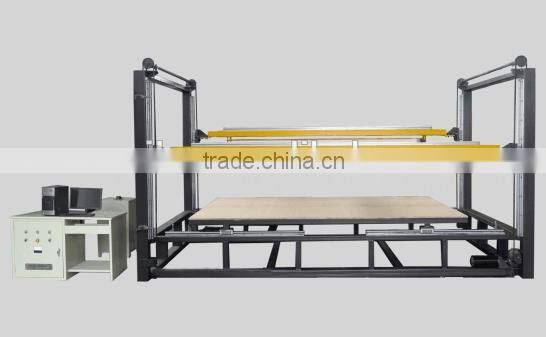

1.Product show of eps shape cutter/3D eps shape cutting machine



A

Hot sale eps shape cutter/3D eps shape cutting machine



B

Hot sale eps shape cutter/3D eps shape cutting machine





2. Product feature of eps shape cutter/3D eps shape cutting machine


1.The main frame of the machine is weld ed from square profile steel, with strong structure, high strength
adn no deformation;



2.the machine has horizontal,vertical and cross cutting devices, and can realize 3-direction cutting , i.e.
horizontal, vertical and cross cutting;


3.The machine daopts converter speed goveming advantageous in stable moving, large
range(0-4m/min)of step-less speed governing, suitable for rwquirements of low-speed cutting and fast
cutter-retract;


4.Voltage adjustment: adopts 10KVA multi-tapped special transformer for adjustment with wide
adjustable range and multiple voltages;



5.C type cutting machine has multi-wire cross cutting system, use motor and converter to motivate
cutting frame upward and downward. Maximum 20wires can be set for cross cutting.



3.Technical data of eps shape cutter/3D eps shape cutting machine


ITEM

UNIT

CM/L6000

SUITABLE FOR BLOCK SIZE

[mm]

6000*1200*1000

MIN. CUTTING THICKNESS

[mm]

10

CUTTING SPEED

[mm]

0.5-1

Number be manually set in horizontal

[piece]

51

Number be manually set in Vertical

[piece]

3

Max Cutting Wires in Cross-cutting

[piece]

13

HOT WIRE SPECIFICATION

[mm]

0.4-0.8

CUTTING WIRE CHANGING



MANUAL

THICKNESS CHANGING



AUTO

CONNECT LOAD

[Kw]

11

POWER SUPPLY

[V/HZ]

380/50

WEIGHT

[Kg]

4500

CONTOUR SIZE

MM

23000*2000*2500











PRODUCT LENGTH

MM

2000

PRODUCT HEIGHT

MM

2500

PRODUCT WIDTH

MM

1500

PRODUCT DIMENSION

AXES(X, Y, Z)

3

CUTTING SPEED

M/MIN

0.5-1

POWER

KW

7.3

VOLTAGE

V/HZ

220/50

CONTOUR SIZE

MM

4370*2400*2500

WEIGHT

KG

750

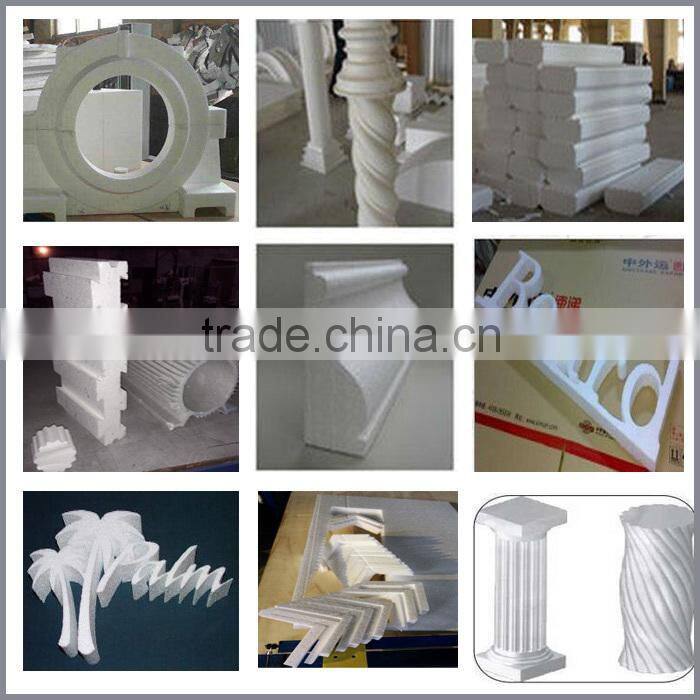

4.Application eps shape cutter/3D eps shape cutting machine

Hot sale eps shape cutter/3D eps shape cutting machine



5.Production flow of eps foam cutting machine

Hot sale eps shape cutter/3D eps shape cutting machine



Packaging & Shipping



---Packaging & shipping---
MOQ1 SET
Payment termT/T, L/C western union
Delivery30days after receive deposit payment or L/C
PortNingbo or Shanghai
Packingwooden,Bubble bag and standard export seaworthy packaging

 Hot sale eps shape cutter/3D eps shape cutting machine

Hot sale eps shape cutter/3D eps shape cutting machine

Our Services



---Our service---

1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.

2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.

3. Engineers go to clients' factory in time for installation , training and trial production .

4. 1 year free warranty, Lifetime technical service support, some spare parts will be send to our customer free of charge.





Company Information
---Company information---

HANGZHOU MILON MACHINERY CO.,LTD was established by one professional team with more than 10 years experience on EPS machine and EPS assistant equipment. we have our own factories and partners to cooperate together. Our customers has been extended all over the world, the company is developing and growing up rapidly.



---Certificate---

Hot sale eps shape cutter/3D eps shape cutting machine

---Exhibition---

Hot sale eps shape cutter/3D eps shape cutting machine



---photo with our clients---

Hot sale eps shape cutter/3D eps shape cutting machine



---eps machine project in clients' factory---

Hot sale eps shape cutter/3D eps shape cutting machine

Hot sale eps shape cutter/3D eps shape cutting machine

---FAQ---

Q1:what is warantty for Auto batch EPS pre-expander machine?

1year waratty for free, lifetime service



Q2: Do you have qaulity control?

Yes, we have QC team strictly inspect in the middle of production and before shipment.



Q3:What is advantage of your EPS expander machine?

Use word famous brand, ensure high and stable quality, use advanced germany Alan Bach technology,

energy saving, high efficiency to produce foam products.



Q4:How about your price?

lower price, not cheapest price but lowest at the same quality.



Q5: Can we order special size, color or voltage of auto batch pre-expander machine?

Yes, size, color and voltage of eps machine can be customized.

How to contact us?

Send your equiry detail to Kelly,we will be here service for you always.

We chat ID: kellyzhan88

Cell No.: 86-18257100130



Hot sale eps shape cutter/3D eps shape cutting machine

FAQ

 FAQ

Q1:what is warantty for Auto batch CNC EPS foam cutting machine?

1year waratty for free, lifetime service



Q2: Do you have qaulity control?

Yes, we have QC team strictly inspect in the middle of production and before shipment.



Q3:What is advantage of your 3D EPS foam cutter?

Use word famous brand, ensure high and stable quality, use advanced germany Alan Bachtechnology,energy saving, high efficiency to produce foam products.



Q4:How about your price? lower price, not cheapest price but lowest at the same quality.



Q5: Can we order special size, color or voltage of cnc eps foam cutter?

Yes, size, color and voltage of eps machine can be customized.



How to contact us?

Send your equiry detail to Kelly,we will be here service for you always.

We chat ID: kellyzhan88

Cell No.: 86-18257100130
