Semi automatic,
Can process 2 pcs of 300watt solar panel in one times.
Item | Specification |
Dimension | 3000mm x 2700mm x 1400mm |
Effective working area | 2200X2200 mm |
Total power consumption | 45 KW ( AC380V, 60 Hz , or according to customer's need ) |
Air source | 0.6 - 1.0 MPa |
Operating mode | Manual / Automatic |
Control system | PLC |
HIM system | Touch screen |
Heating mode | Oil Heating |
Temperature control | PID intelligent |
Temperature control range | 30℃ - 180 ℃ |
Pumping rate | 70 L/s |
Laminating time | 2 - 4 mins ( excluding sollidification time ) |
Heating rate | 135℃ at room temperature with 50 to 60 minutes |
Vacuum rate | 200 L / S |
limit vacuum | 70 ~ 90 Pa |
vacuum Time | 90 seconds |
Silicone sheet size | 2400mm * 2400mm ,5 mm thickness |
Lid opening | by air |
Total weight | 5500kg |
Warranty period | 12 months. (Exclusive quick-wear parts) |
Quick-wear parts | Only silicon inflation sheet. Around 3000times / pc |
Production capacity | Conventional 210 Wp (1650*1030) module, 2 pcs at the same time |

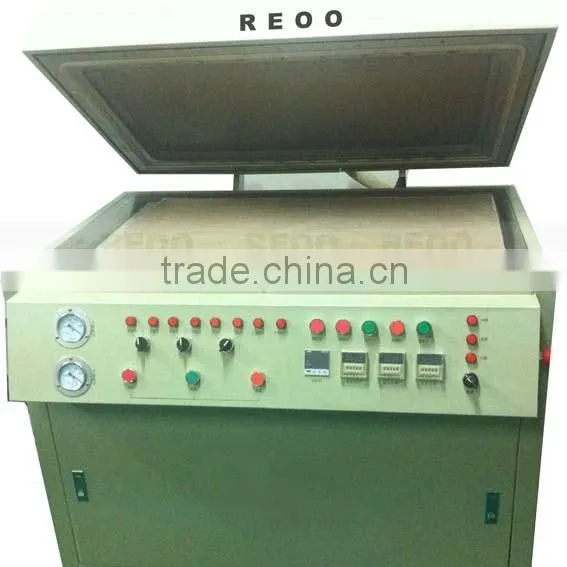

The Semi-automatic laminator is designed for different size of laminating of mono and polycrystalline solar cell with high productivity, The machine is suitable for both standard & fast cure EVA for assembly PV module. It use friendly touch screen panel to program cycle operation, controller to maintain uniform temperature.
Laminating size:
3600x2200mm
2200mm x 2200 mm,
2200mm x 1800mm,
2200mm x 1100mm.
It use friendly touch screen panel to program cycle operation, controller to maintain uniform temperature.
Heating system:
Type of heating: Conduction oil heating system.
Temperature distribution on heating plate area during heat up: < ± 1.5 K
Temperature distribution within steady state: < ± 2 K)
Heating plate specification : Integral steel heating plate, not welding, longlife and good temperature uniform.
Thickness 45 mm, temperature range: ≤ 180° C, temperature display on touch screen.
2 Vacuum system: Vacuum pump ≥ 150 m³/h, ultimate value of vacuum < -100 mbar, high definition/resolution vacuum gauge/display.
3 Control unit: SIEMENS PLC base auto cycle control, with manual control interface.
Manual operation option of each operation. Automatic start of pre-selected working cycle with a start button.
4 Electrical parts. Schneider
5 General requirement: Maintenance friendly design, loading and unloading of laminator from both sides (left and right) without any handicap. Easy maintenance/removal of heating plates. Documentation in English language
6 Operational safety: Laminator is equipped with safety devices according to the respective standard.
7 Warranty: 12 (twelve) months
8 Standard accessories.
Vacuum pump 1 set
Cooling water pump 1 set
Teflon sheet: 2 pcs.
Thermal insulating gloves: 2 paris.
Graphite seal: 1 sets.
9 Propositional spare parts for maintenance:
Lifetime: 3000 laminating times Replace per 3 years.
Silicon membrane : 2650 * 2650*5mm 1 pcs
Silicon O ring Diameter: 16mm, Length: 10m, Compressed air pipe :
Diameter: 16mm, 1 roller. Use for all machines.
Video : /watch?v=CyvKkhrFi5A&feature=youtu.be
Installation
We send engineer or technicians to buyers factory to install machine.All expenditure on travel, food, accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer.
Training
We supply both overseas and local training to the engineers and technicians on operation and maintenance. buyer borne air tickets, lodging, food and training material .
Minimum 12 (twelve) months warranty of all products and services .guarantee for the spares and required maintenance or replacement support are to be provided . Buyer borne the cost of the material for parts of maintenance.
| Mr.Simon Sun NANTONG REOO TECHNOLOGY CO.,LTD. Add: Chennan industrial park, Rudong, Jiangsu, Chima PC226400 Tel: 86 513 8410 5399 Fax: 86 513 8410 5505 Skype: reoolisa WhatsApp: 0086 188 629 38063 |
