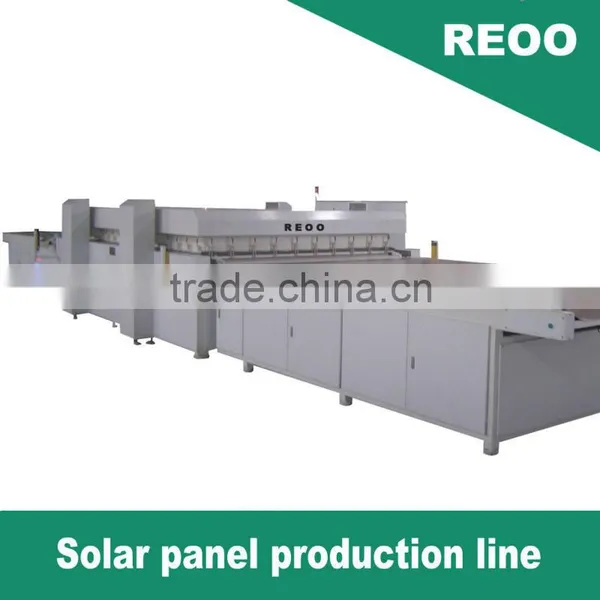

Full Automatic Solar Panel Laminator
As the equipment of manufacturing solar module limited to laminate glass, EVA (Ethylene Vinyl Acetate Sheet), solar cell and back sheet
Dimension: 14000mm*2800mm*1380mm
Laminating area: 3600mm x 2200mm
Total power consumption: 75 KW ( AC380V, 60 Hz, or according to customer's need)
Compressed air: 0.6 - 1.0 MPa.
| Temperature control: | PID intelligent temperature control system |
| Temperature uniformity in working area: | ≤ ± 1.5 ℃ |
| Temperature control accuracy: | ≤± 1 ℃. |
| Temperature control range: | 30℃ - 180 ℃ |
| Laminating time: | 2-4 mins ( excluding sollidification time ) |
| Heating rate: | 135℃ at room temperature with 50 to 60 minutes |
| Vacuum rate: | 200 L/S |
| vacuum Time: | 90 seconds |
| Silicone sheet size: | 4100mm * 2700mm |
| Production Capacity: | |
| 250 WP * 4 pieces / time * 3 time / h * 8 hours * 300 days=7.2 MWp / year. 8 hours/day | |
More detailed operation, please click here:
/watch?v=fdLI7K639p4
/watch?v=fdLI7K639p4&feature=youtu.be
Packing:
1) All the equipment, tools, accessories and goods are suitably packed.
2) All packages are liable to be opened for customs' examination.
3) All the packages are designed to facilitate.
4) Each package has the printed shipment information.
Delivery time:
Around 20 - 45 days after received the advance payment.
Installation:
We arrande our engineers to buyer’s factory to install machine.
All expenditure on travel, food,accommodation and transportation of our engineers/ technicians for installation will be borne by buyer. REOO company borne the salary of engineer/technicians.
Training:
We supply both overseas and local training to the engineers and technicians on operation and maintenance.
Buyer borne air tickets, lodging, food and training material .
Manuals/Documents:
Operational and maintenance manuals of all equipment is in English, along with a soft copy in a CD
(compatible version: MS Word/ PDF).
Raw material:
We supply all the material for production solar panel from China for trial production and formal production,
buyer pay for the cost.
REOO Technology Co., Ltd. is a leading manufacturer for solar panel assembly production line in China. We have 9 years history to manufacture all size of laminator also whole of production line. We have a great deal of experience for design, manufacturing, shipping, installation, commissioning and training for solar panel production line . We have exported many of production line to other countries. This specification include design, manufacturing, shipping, testing and commissioning of assembling plant of solar panel on turn key basis. The assembling plant should have a production capacity of 1 MW/year considering 80% uptime and single shift of operation.
