PA , TUV Approved Waterproof Solar MC3 Connector

PA , TUV Approved Waterproof Solar MC3 Connector photo-1
PA , TUV Approved Waterproof Solar MC3 Connector photo-2
PA , TUV Approved Waterproof Solar MC3 Connector photo-3
PA , TUV Approved Waterproof Solar MC3 Connector photo-4
PA , TUV Approved Waterproof Solar MC3 Connector photo-5
PA , TUV Approved Waterproof Solar MC3 Connector photo-6
US$ 0.9 - 1.5 MOQ: 100 Pairs
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
REOO
Model Number:
RO-2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Jiangsu, China
Brand Name REOO
Model Number RO-2
Type Adapter
Application Power
Gender Other, Cathode and Anode





Product description

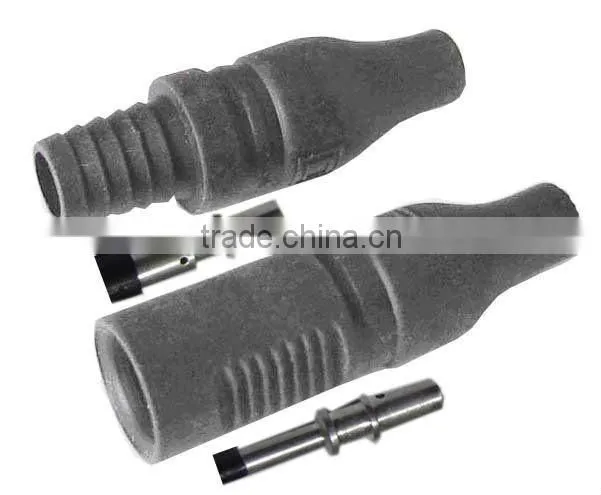

                        Solar power cable connector



The  advantage of REOO Solar connector



1, PA raw material, Not PPO.



2, Ultrasonic hot melting , Most company use fixing clip.



3,  Manufacturer price.

PA , TUV approved waterproof solar MC3 connector

 PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector

PA , TUV approved waterproof solar MC3 connector



Item

RO-2 solar PV cable connector

Compatible

MC3 Solar connector

Insulation material

PA

Rated current

25A

Rated voltage

1000V

Test voltage

6000V(50Hz,1Min)

Contact material

Copper Tin plated

Contact resistance

3mΩ

Degree of protection

IP65

Safety class

2

Flame class

UL94-V0

Insertion force

≤50N

Withdrawal force

≥300N

Ambient temperature range

-40 degree to +85 degree

Connector diameter

4mm

Compatible cable cross sections

solar cable 4.0mm2 and 6.0 mm2

Suitble cable

2.5-6.0mm2 AWG 14/12/10

Be used for

Connecting solar PV cable

Characteristic

High insulation,fast integration

Packing & Delivery
Package size per batch:  48X38X33 cm
Gross weight per batch: 35.5 KG
Package Type: Male house 100 pcs / PE bag. 10 bag / carton, also 1000 Pin Female house 100 pcs / PE bag. 10 bag / carton, also 1000 Pin

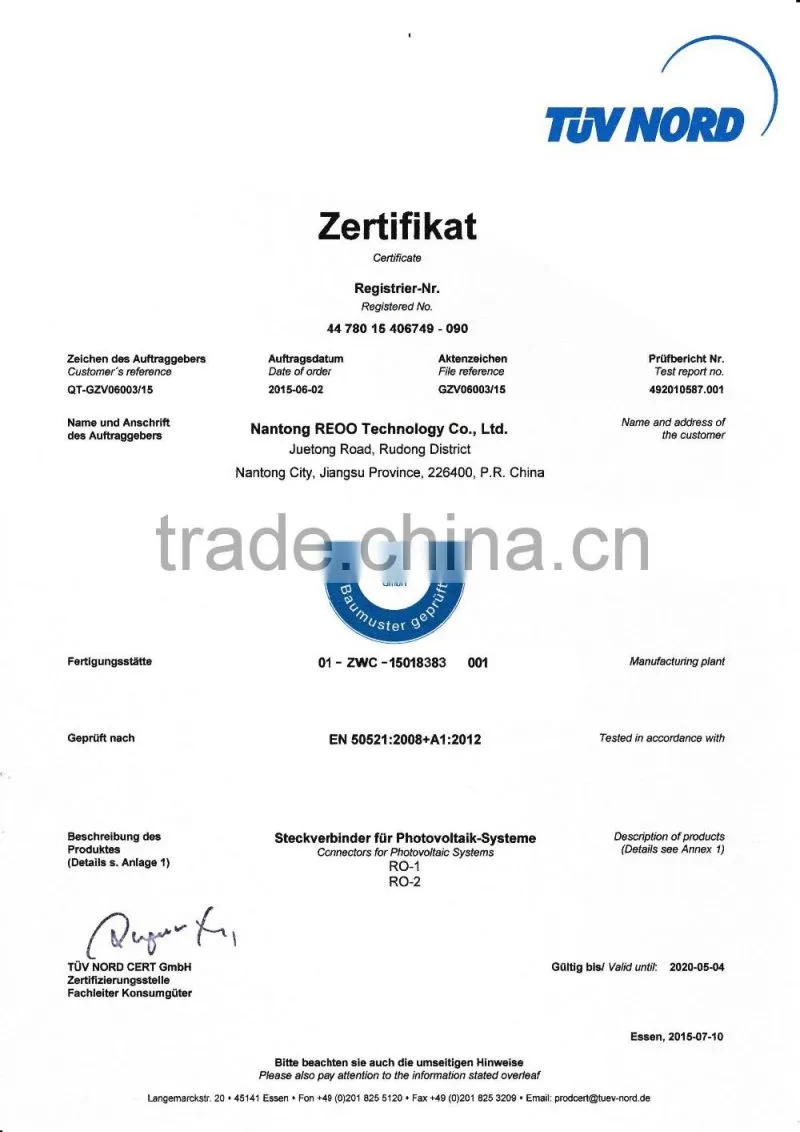

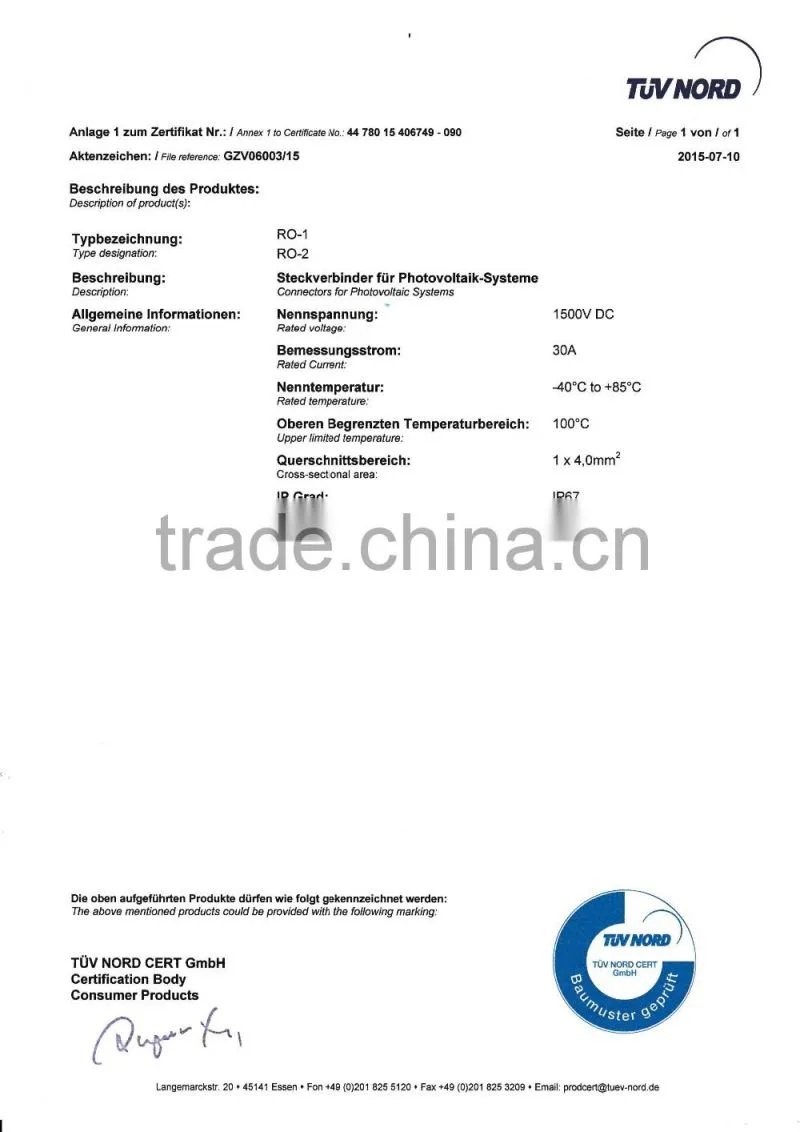

Certifications

TUV Register No.: 44 780 15 406749 - 090

PA , TUV approved waterproof solar MC3 connectorPA , TUV approved waterproof solar MC3 connector

Company Information

REOO Technology Co.,Ltd., is expert at a wide range of solar panel production lines, solar panel connectors, solar panel cables connectors as well as solar power system. We provide one package service, including design, producing, export, site installations and technical guidance and after-sale service as well.





Our factory is located in Nantong, Jiangsu province of China. It is 2 hours to Shanghai by vehicle. REOO together with SUNTECH, HANWA SOLAR, and QS SOLAR bring the technologic innovation superiority of the industrial cluster into full play.


Our senior technicians are familiar with ISO quality management system, and have strong sense of continuous improvement and responsibility. Our products enjoy competitive price, and have a ready market in USA, South Amercian, Europe, Australia, UK, Spain, Korea, Japan, Malaysia, India, Bangladesh, Vietnam and so on.


Please feel free to contact us if you are looking for a trustworthy source of solar panel machines and accessories. We take superior technical support and customer service as our integral parts of our offering. Any of your enquiries will be highly concerned and will be dealt with immediately. Your satisfaction of our products and services will be guaranteed.





PA , TUV approved waterproof solar MC3 connector
