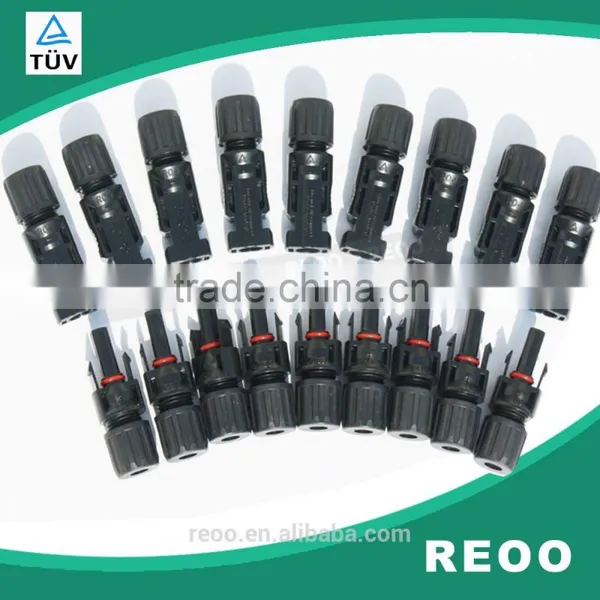

REOO 30A Male Female MC4 PV Wire Solar Cable Connector

Name: REOO 30A Male Female MC4 PV Wire Solar Cable Connector
Brand: REOO
SKU: 112090145
Availability: InStock

US$ 0.7 - 0.8 MOQ: 100 Pairs

Key Specifications

Place of Origin:

Jiangsu, China

Brand Name:

REOO

Model Number:

RO-1

Nantong Reoo Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Jiangsu, China

Brand Name REOO

Model Number RO-1

Type Adapter

Application Power

Gender Other, Female and Male

MC4 Solar power cable connector

The advantage of REOO Solar connector

1, Polycarbonate raw material, Not PPO.

2, Ultrasonic hot melting , Most company use fixing clip.

3, Manufacturer price.

Raw material	Used for	Price	Characteristic
PPO PX9406P-7001	Junction box	Lower	Most of company use it for junction box.
PPO 540Z	Junction box	Lower	Lower price
PPO V0150B	Junction box	Middle	RTI higher than PX9406P
PPO 644Z	Junction box	Middle	Good quality for junction box
PA66 FR7025	Connector nut	Middle	Most of company use it for connector
PA66 FR370	Connector nut	Middle	Most of company use it for connector
PC EXL9330	Connector house	Expensive	Top quality.

Item	RO-1 solar cable connector
Compatible:	MC4 solar connector
Insulation material:	PC
Rated current :	30A
Rated voltage:	1500V
Test voltage :	6000V(50Hz,1Min)
Contact material :	Copper Tin plated
Contact resistance:	5mΩ
Degree of protection :	IP67
Safety class:	2
Flame class:	UL94-V0
Insertion force :	≤50N
Withdrawal force :	≥50N
Ambient temperature range :	-40 degree to +90 degree
Connector diameter :	4mm
Compatible cable cross sections :	solar cable 4.0mm2 and 6.0 mm2
Suitble cable :	2.5-6.0mm2 AWG 14/12/10
Be used for:	Connecting PV cable
characteristic	High insulation,Big tension,Fast integration

REOO Connector use PC raw material, It is top quality.

Package

Male house	100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton
Female house	100 pcs / PE bag. 10 bag / carton, also 1000 Pin/carton
Measure	380290470 mm/carton
Net weight	34 kg / carton
Gross weight	35.5 kg / carton
