Best Price Vertical EPS Styrofoam Box Foaming Machine

Best Price Vertical EPS Styrofoam Box Foaming Machine photo-1
Best Price Vertical EPS Styrofoam Box Foaming Machine photo-2
Best Price Vertical EPS Styrofoam Box Foaming Machine photo-3
Best Price Vertical EPS Styrofoam Box Foaming Machine photo-4
Best Price Vertical EPS Styrofoam Box Foaming Machine photo-5
Best Price Vertical EPS Styrofoam Box Foaming Machine photo-6
US$ 4,500 - 12,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Foam Net
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Foam Net
Place of Origin Zhejiang, China
Brand Name Milon
Model Number ML-1200-ML1750
Voltage 380V/50HZ or customized
Power(W) 6.6-11kw
Dimension(L*W*H) 4700x2240x3680mm
Weight 3400KG
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Best price vertical EPS styrofoam box foaming machine



Product Description



---Product show---

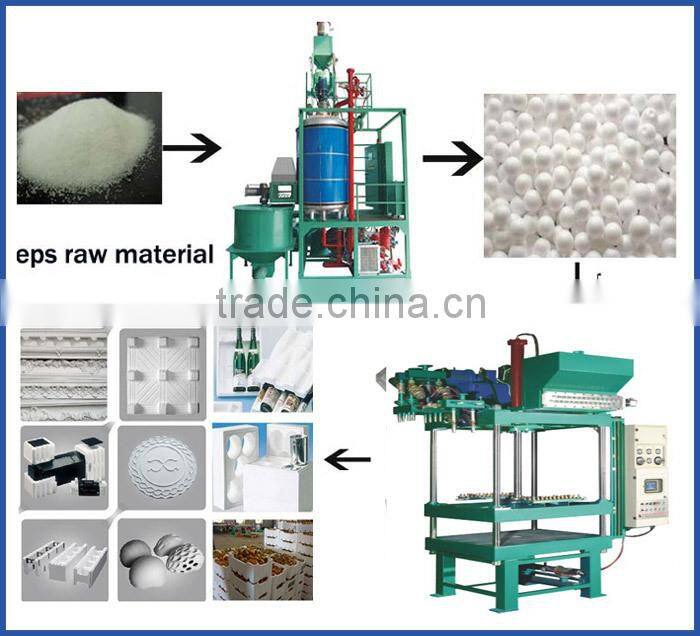

Working flow of EPS shape production line

Best price vertical EPS styrofoam box foaming machine

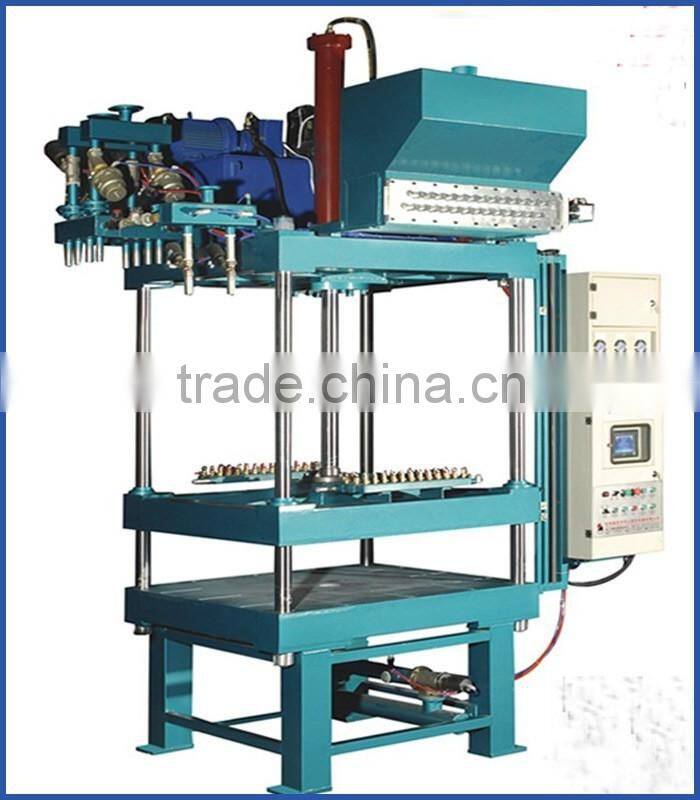

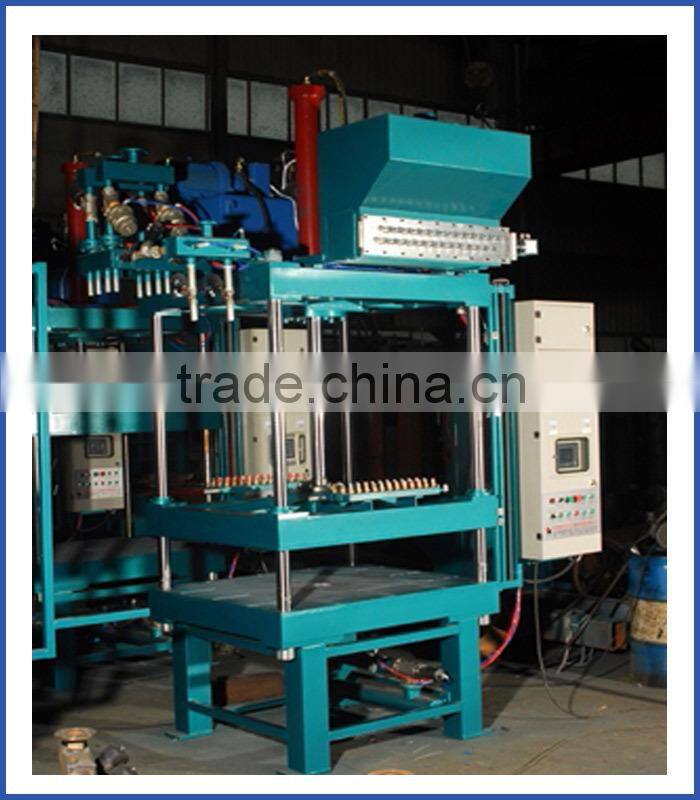

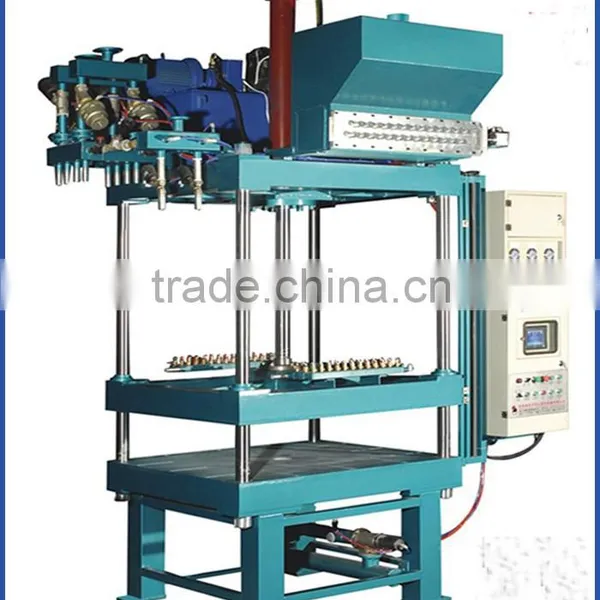

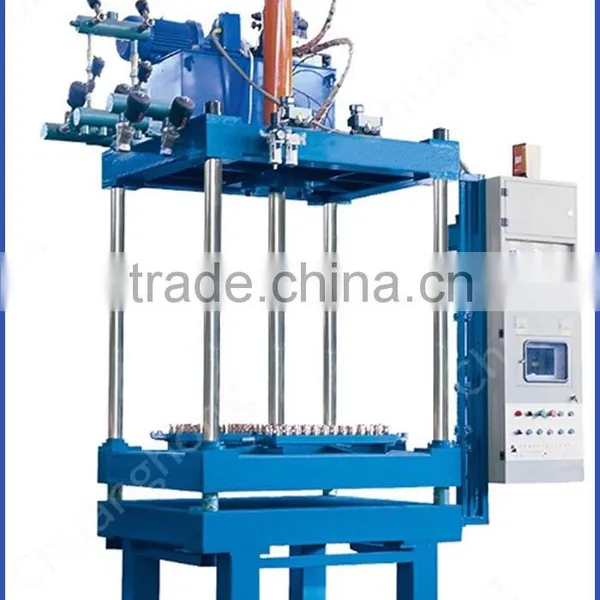

1.Picture EPS styrofoam box foaming machine

Best price vertical EPS styrofoam box foaming machine

Best price vertical EPS styrofoam box foaming machine





2.Technical data EPS styrofoam box foaming machine

Item

ML-1200

ML-1400

ML-1750

Mould Dimension(mm)

1200*1000

1400*1200

1800*1600

Product Dimension(mm)

1050*850*350

1250*1050*350

1650*1450*350

Stroke(mm)

150~1200

150~1200

150~1200

Steam

Entry(mm)

50

50

65

Consumption

5kg/cycle

6kg/cycle

6.5kg/cycle

Water Entry

Entry(mm)

50

50

65

Consumption

50~150 kg/cycle

50~180 kg/cycle

80~190 kg/cycle

Compressed Air Entry

Entry(mm)

40

40

50

Consumption

1.5m3/cycle

2m3/cycle

2.5m3/cycle

Vacuum Pump Capacity

230m3/h

290m3/h

290m3/h

Drainage

100KW

100KW

125KW

Cycle Time

70~140s

80~160s

100~200s

Connected Load

6.6KW

8.6KW

11KW

Weight

2600kg

3400kg

4500kg



3.Feature of EPS styrofoam box foaming machine

  1.  This machine is vertical structure,function with hydraulic pressure transmission. Fast mould opening and closing, mould locking firmly and stable performance, which makes machine steam saving.
  2.  This machine applies PLC and touch screen, it is convenient to maintain.
  3. This machine applies various of expansion and ejecting mode to save more steam,which improve the quality of products.
  4.  The machine is easy to operate ,no need training.



4.Application

Best price vertical EPS styrofoam box foaming machineBest price vertical EPS styrofoam box foaming machine



5.Production flow EPS machine

Best price vertical EPS styrofoam box foaming machine



6.Certificate

Best price vertical EPS styrofoam box foaming machine



Packaging & Shipping



---Packaging & shipping---

MOQ

1 SET
Payment termT/T, L/C western union
Delivery30days after receive deposit payment or L/C
PortNingbo or Shanghai
Packingwooden,Bubble bag and standard export seaworthy packaging

Best price vertical EPS styrofoam box foaming machine



Company Information

HANGZHOU MILON MACHINERY CO.,LTD was established by one professional team with more than 10 years experience among different products on EPS machine and EPS assistant equipment. we have our own factories and partners to cooperate together. Our customers has been extended all over the world, the company is developing and growing up rapidly.



---Exhibition---

Best price vertical EPS styrofoam box foaming machine

 ---Our major customer---

Best price vertical EPS styrofoam box foaming machine



---EPS product line in customer factory---

Best price vertical EPS styrofoam box foaming machine

Best price vertical EPS styrofoam box foaming machine

---More EPS machine for your choose---

Best price vertical EPS styrofoam box foaming machine

Our Services



---Our services---

1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. 1 year free warranty, Lifetime technical service support, some spare parts will be send to our customer free of charge.



FAQ



---FAQ---

Q1:what is warantty for EPS machine?

1year waratty for free, lifetime service.

Q2: Do you have qaulity control?

Yes, we have QC team strictly inspect in the middle of production, 100% QC inspectbefore shipment.

Q3:What is advantage of your EPS machine?

Save steam, save electricity, high capacity, durable.



How to contact us?

Please send your inquiry details to Tony liao we will here service for you anytime anywhere.



skype:tonyliao51

Phone: 86-15990067889

              86-18257100130
