Help CenterTungsten Plate for Radial Heat Shield
Related Products
Specifications
GETWICK Tungsten plate1.Standard:ASTM B780
2.Purity:99.95%min.
3.Density:>=19.3g/cm3
4.Melting Point:>=3620C
tungsten sheet specification |
1.Applications
for producing electric light source parts, components of electric vacuum; for producing W-boat,
heat shield and high bodies in the high temperature furnace Our high-quality products are manufactured according to ASTM, AMS, ISO and some other world-wide recognized accords.
2.Chemical Composition
Impurity Content≤% | |||||||||
Al |
Ca |
Fe |
Mg |
Mo |
Ni |
Si |
C |
N |
O |
0.002 |
0.005 |
0.005 |
0.003 |
0.01 |
0.003 |
0.005 |
0.008 |
0.003 |
0.005 |
3.Product specifications
Grade |
State |
Specification (mm) |
||
Thickness |
Width |
Length |
||
W1 |
Hard State |
0.10-0.20 |
30-150 |
50-400 |
Stress Relieving State |
>0.20-0.40 |
50-200 |
50-400 |
|
Hot Rolling State |
>0.40-4.0 |
50-200 |
50-400 |
|
Stress Relieving State |
>4.0-6.0 |
50-200 |
50-400 |
|

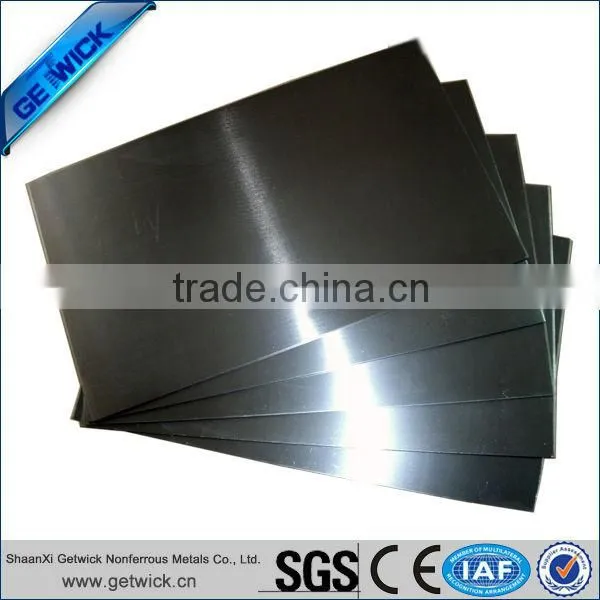

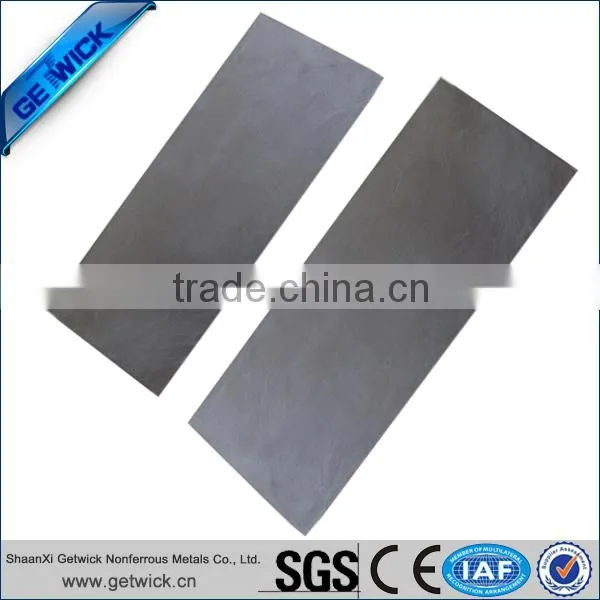

tungsten sheet photo shows |
Why Choose GETWICK? |
1 |
More than 3000 products are available. |
2 |
An ISO9001:2008,ISO14001,CE Certified. |
3 |
Offer you professional rare metal products and customized services. |
4 |
We feedback in 24 hours online and provide professional advice on products. |
5 |
With an annual output of 300 MT of tungsten & molybdenum and other precious metals. |
6 |
More than six years experiences, Winning customers ’trust and satisfaction from all over the world. |
About GETWICK Certificate |
About GETWICK Factory |
Packaging information |
Type of payment |
Welcome to visite our company and make cooperation~~
Choose Getwick,Choose quality
Choose Getwick,Choose Service
Choose Getwick,Choose Speed
