Help CenterThoriated Tungsten Electrodes
Related Products
Specifications
GETWICK Tungsten Electrode1.Density:>=19.0g/cm3
2.Purity:>=99.90%
3.Grade:WT10,WT20,WT30,WT40
4.ISO9001:2008
tungsten electrode specification |
1.Type, compositions and colours
| Type | Compositions | Colors | |||
| Added Oxide % | Substances | Substances % | Tungsten % | ||
| WT10 | 0.8-1.20 | THO2 | <0.20 | Remaining | Yellow |
| WT20 | 1.70-2.20 | THO2 | <0.20 | Remaining | Red |
| WT30 | 2.80-3.20 | THO2 | <0.20 | Remaining | Violet |
| WT40 | 3.80-4.20 | THO2 | <0.20 | Remaining | Orange |
2.The specification of tungsten electrode(mm)
| Diameter | Dia.Error | Length | Length Error |
| 1.0 | ±0.05 | 50 75 150 175 | ±1.0 |
| 1.6 | |||
| 2.0 | |||
| 2.4 | |||
| 3.2 6.3 | ±0.1 | ||
| 4.0 8.0 | |||
| 5.0 10.0 |
3.Application: Used for insert gas protection arc welding, plasma cutting, spray-coating and
furnace melting.
4.Our commitment to quality is in everything we do,from the materials we use to our
manufacturing process.More details,please feel free to contact us!

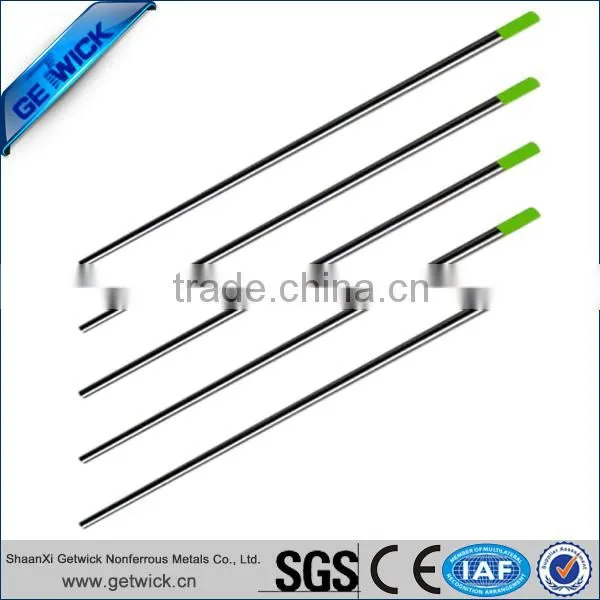

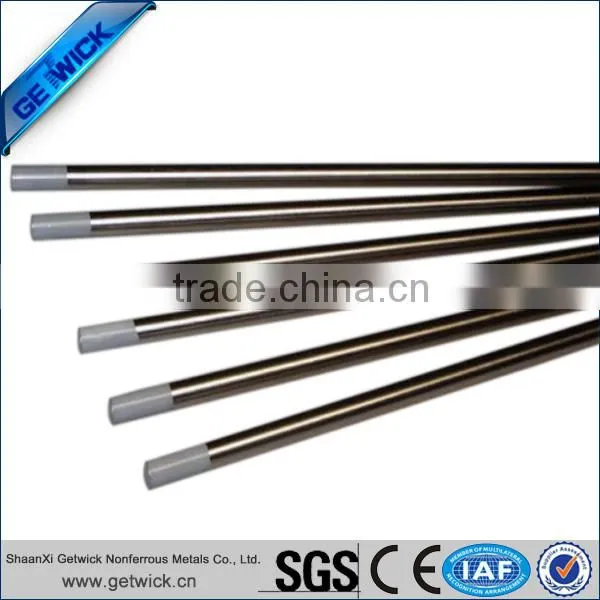

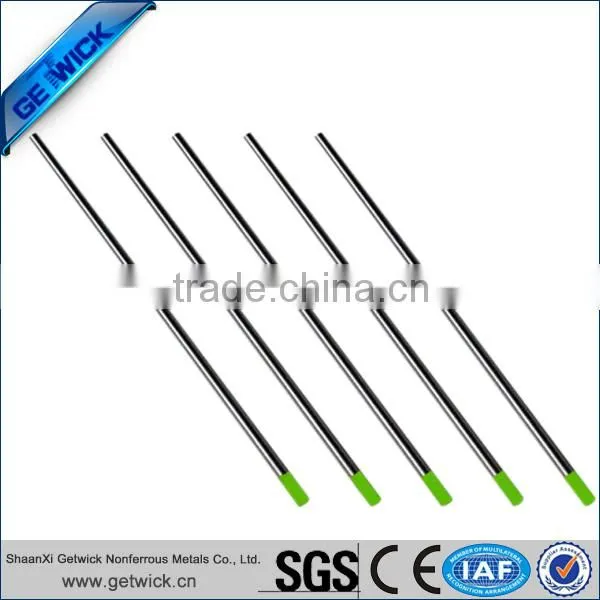

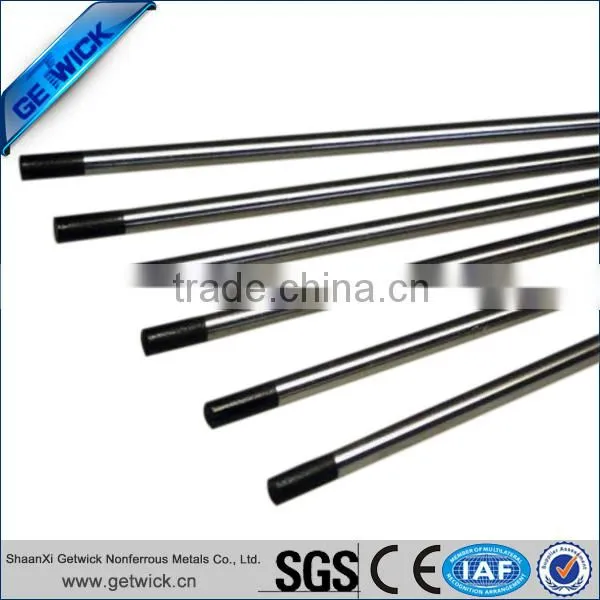

tungsten electrode photo shows |
Why Choose GETWICK? |
1 |
More than 2000 products are available. |
2 |
An ISO9001:2008 , ISO14001 ,C E Certified. |
3 |
Offer you professional rare metal products and customized services. |
4 |
We feedback in 24 hours online and provide professional advice on products. |
5 |
With an annual output of 300 MT of tungsten & molybdenum and other precious metals. |
6 |
More than six years experiences, Winning customers ’trust and satisfaction from all over the world. |
About GETWICK Certificate |
About GETWICK Factory |
Packaging information |
Type of payment |
Our commitment to quality is in everything we do,from the materials we
use to our manufacturing process.More details,please feel free to contact us!
