Best Price Continuous Eps Pre-expander Machine/eps Expander

Best Price Continuous Eps Pre-expander Machine/eps Expander photo-1
Best Price Continuous Eps Pre-expander Machine/eps Expander photo-2
Best Price Continuous Eps Pre-expander Machine/eps Expander photo-3
Best Price Continuous Eps Pre-expander Machine/eps Expander photo-4
Best Price Continuous Eps Pre-expander Machine/eps Expander photo-5
Best Price Continuous Eps Pre-expander Machine/eps Expander photo-6
US$ 5,000 - 9,800 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Product Type:
Foam Net
Place of Origin:
Zhejiang, China
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Ningbo
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Product Type Foam Net
Place of Origin Zhejiang, China
Brand Name Milon
Model Number ML-900II
Voltage 380V/50HZ or customized
Power(W) 10kw
Dimension(L*W*H) 4700x2900x3200mm
Weight 3200KG
Certification CE
Warranty 12 months
After-sales Service Provided Engineers available to service machinery overseas

Best price continuous eps pre-expander machine/eps expander



Product Description



---Product show---

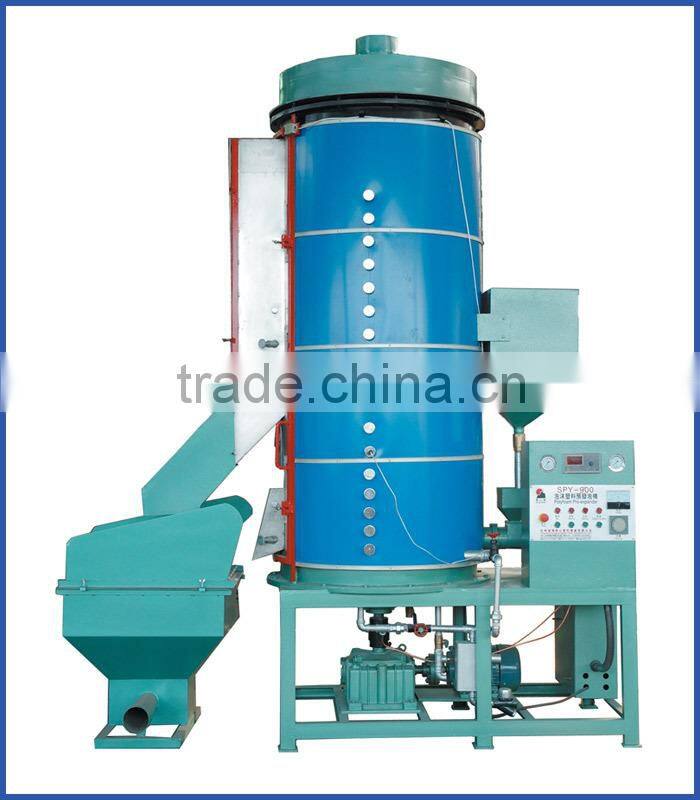

1.Picture of continuous eps pre-expander machine/eps expander

Best price continuous eps pre-expander machine/eps expander

Best price continuous eps pre-expander machine/eps expander

Best price continuous eps pre-expander machine/eps expander

Best price continuous eps pre-expander machine/eps expanderBest price continuous eps pre-expander machine/eps expander

2.Technical data continuous eps pre-expander machine/eps expander

Item ML-900I ML-900Ⅱ
Expansion Barrel Diameter DN900 DN900
Volume 1.2m3 1.2m3
Usable Volume 0.8m3 0.8m3
Steam Entry DN40 DN40
Consumption 200~250kg/h 200~250kg/h
Pressure 0.6~0.8MPa 0.6~0.8MPa
Compressed Air Entry DN20 DN20
Consumption 0.5~0.8MPa 0.5~0.8MPa
Drainage Entry DN20 DN20
Throughput @15g/l 150kg/h 150kg/h
@20g/l 200kg/h 200kg/h
@25g/l 250kg/h 250kg/h
@30g/l 310kg/h 310kg/h
Material Conveying Line DN100 DN100
Connected Load 10kw 10kw
Expanded density First Expansion 12~30g/l 12~30g/l
Secondary Expansion 7~12g/l 7~12g/l
Overall Dimension(L*W*H) 4700*2900*3200mm 4700*2900*3200mm
Weight 1600kg 1600kg



3.Feature continuous eps pre-expander machine/eps expander

1.Inside and outside of barrel are both made of stainless steel, and the middle layer is heat preserving material, the production efficiency is 2~3 times higher than the average machine,it can reduce 25% energy consumption.



2.The baiting system includes first time baiting device and second time baiting device.



3.This machine can process secondary pre-expansion.



4.The expanded density range of foamed beads is 7~30 KG/M³,the density tolerance is minimal.



5.Steam pressure reducing valve is optional.

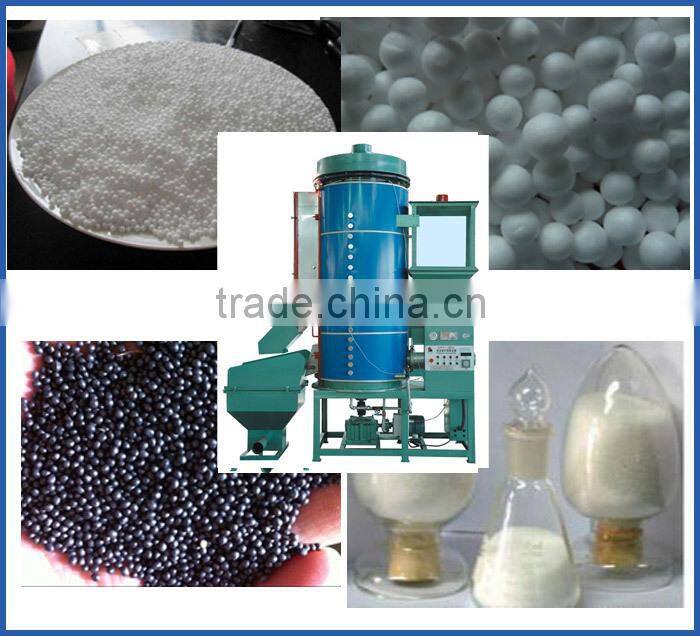

4.Application

Best price continuous eps pre-expander machine/eps expander



5.Production flow of EPS machine

Best price continuous eps pre-expander machine/eps expander





Packaging & Shipping

 Best price continuous eps pre-expander machine/eps expander

Company Information

 HANGZHOU MILON MACHINERY CO.,LTD was established by one professional team with more than 10 years experience on EPS machine and EPS assistant equipment. we have our own factories and partners to cooperate together. Our customers has been extended all over the world, the company is developing and growing up rapidly.



---Certificate---

Best price continuous eps pre-expander machine/eps expander



---exhibition---

Best price continuous eps pre-expander machine/eps expander



---Our major clients---

Best price continuous eps pre-expander machine/eps expander

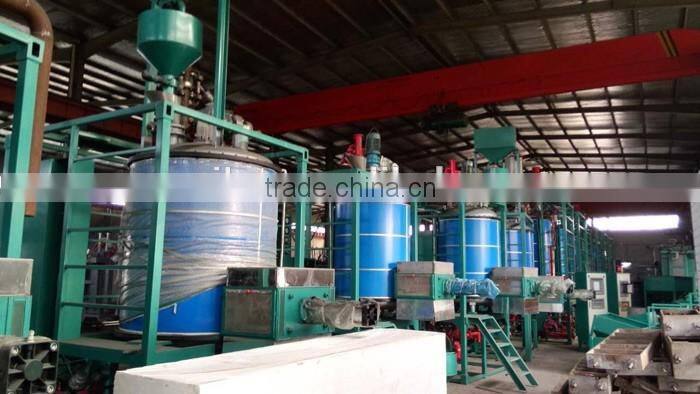

---EPS machine project in client factory---

Best price continuous eps pre-expander machine/eps expander

Best price continuous eps pre-expander machine/eps expander



---More for you choose---

Best price continuous eps pre-expander machine/eps expander



Our Services



1. Value clients, guarantee equipment quality and answer clients’ questions anytime and anywhere.
2. Customizing machines according to clients' inquiry , such as different design, different brand parts, different colors, more function,etc.
3. Engineers go to clients' factory in time for installation , training and trial production .
4. 1 year free warranty, Lifetime technical service support, some spare parts will be send to our customer free of charge.



FAQ



Q1:what is warantty for EPS expander machine?

1year waratty for free, lifetime service.



Q2: Do you have qaulity control?

Yes, we have QC team strictly inspect in the middle of production, 100% QC inspectbefore shipment.



Q3:What is advantage of your EPS expander

Save steam, save electricity, high capacity, durable.



Please send your inquiry details to Tony we will here service for you anytime anywhere.

skype:tonyliao51

Cell: 0086-15990067889

Tel:0086-571-86912702

whatsup & viber: 15990067889

wechat:15858131688

QQ:313201576
